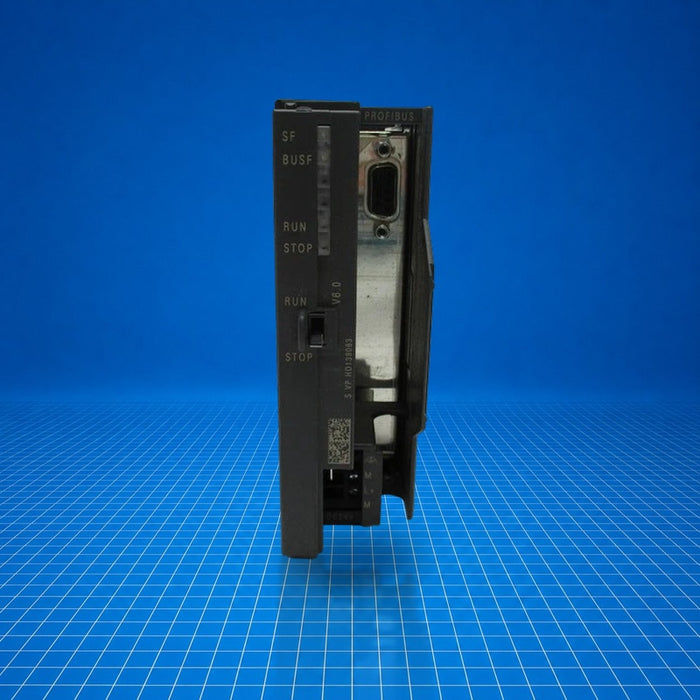

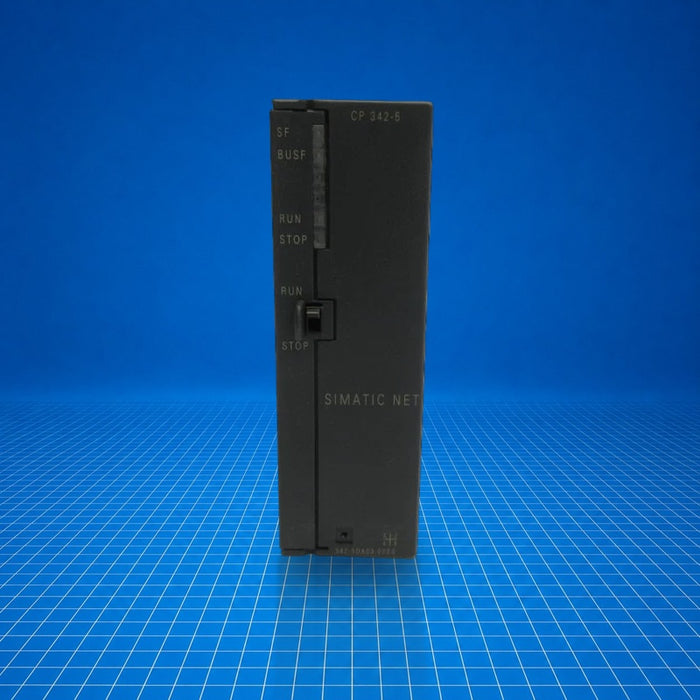

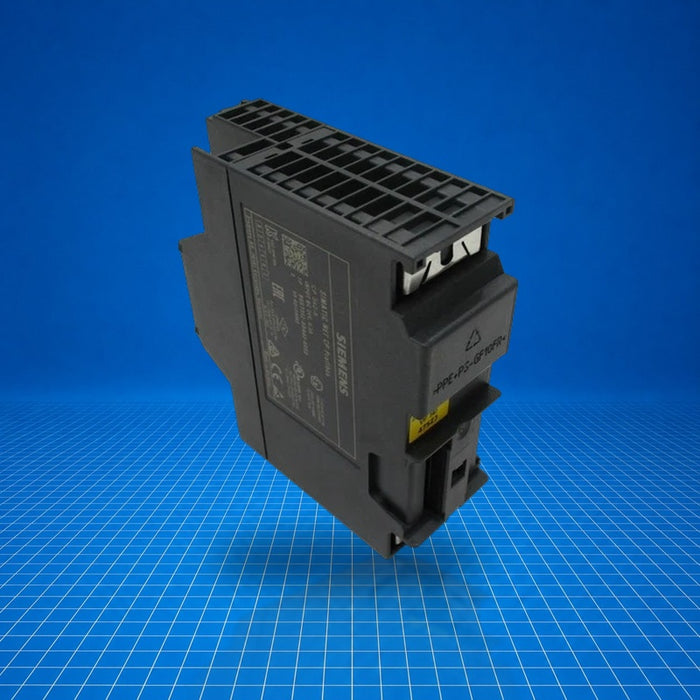

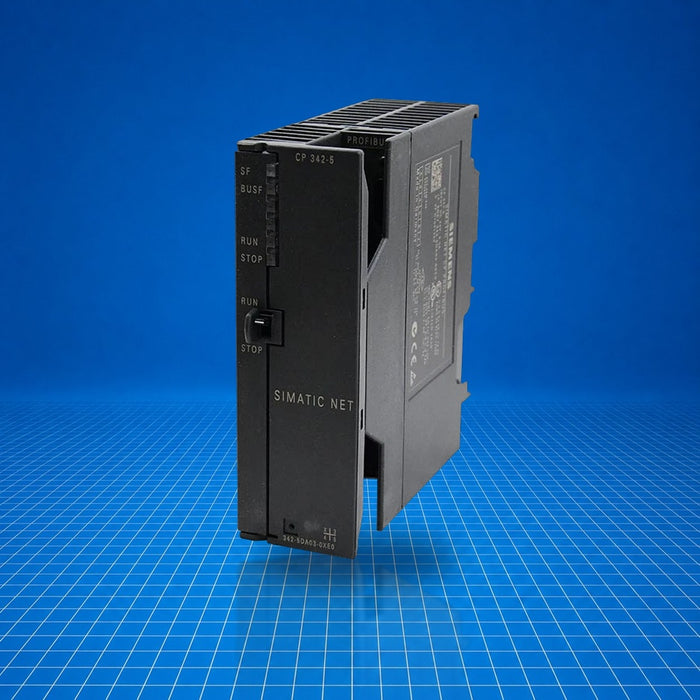

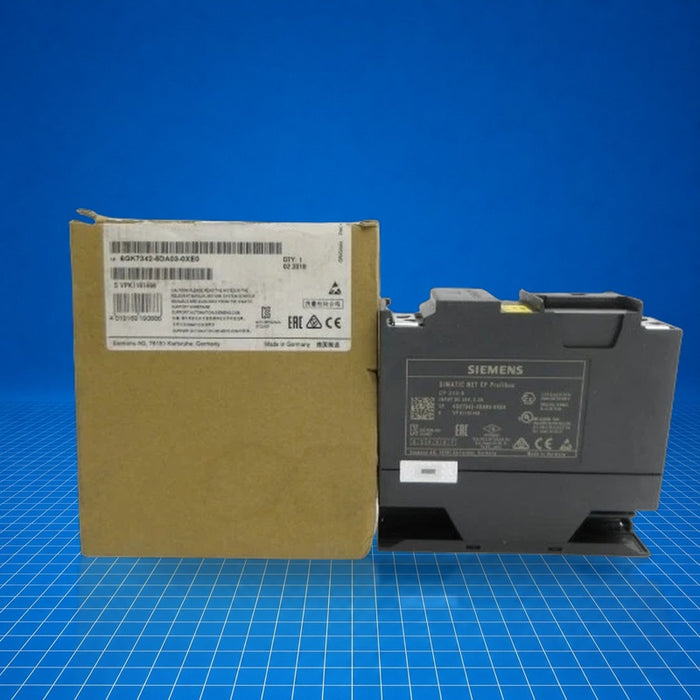

6GK7342-5DA03-0XE0 Siemens
Original price
$687.23
-
Original price
$1,099.97
Original price
$687.23
$687.23
-
$1,099.97
Current price
$687.23
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens CP 342-5 communications processor (part number 6GK7342-5DA03-0XE0) is a PROFIBUS DP interface module designed for mounting on SIMATIC S7-300 controllers. It enables S7, S5, PG/OP, and PROFIBUS DP communication at transfer rates from 9.6 kbit/s to 12 Mbit/s. The module supports both DP-V0 master and slave roles, providing up to 124 DP-slave connections and is integrated within S7-300 automation systems for field network integration, diagnostics, and legacy S5 communication bridging. This unit is often deployed in factory automation and process-control environments for distributed fieldbus networking.
Best Suited For
- Connecting S7-300 to PROFIBUS DP networks
- Legacy S5 communication integration
- PG/OP programming interfaces via PROFIBUS
- DP-V0 master configuration with up to 124 slaves
Transfer rate (PROFIBUS DP)
9.6 kbit/s … 12 Mbit/s
DP-V0 master/slave support
Yes
Power loss
6.75 W
Operating temperature range
0 … 60 °C
Dimensions (W × H × D)
40 mm × 125 mm × 120 mm
Technical Specifications
I/O & Electrical
Supply voltage (backplane bus)
5 V DC
Supply voltage (external)
24 V DC
Tolerance (24 V) +/-
+20 % / -15 %
Consumed current (5 V, typical)
0.15 A
Consumed current (24 V, typical)
0.25 A
Power loss
6.75 W
Communication & Power
PROFIBUS interface
9-pin Sub-D (RS-485), 1 port
Industrial Ethernet interfaces
0
Open communication SEND/RECEIVE connections
16 max
S7 communication connections
16 max
Multi-protocol mode active connections
28 with DP (32 without DP)
DP master: MAX DP-device count
124
Physical & Environmental
Module format
Compact module S7-300 single width
Dimensions (W × H × D)
40 mm × 125 mm × 120 mm
Net weight
0.3 kg
Operating temperature
0 … 60 °C
Storage/transport temperature
-40 … +70 °C
Relative humidity (operating, max)
95 % at 25 °C without condensation
Protection class
IP20
Certifications
CEUKCARCMEACATEXIECExUL (general)UL (hazloc)FMCCCPRS
