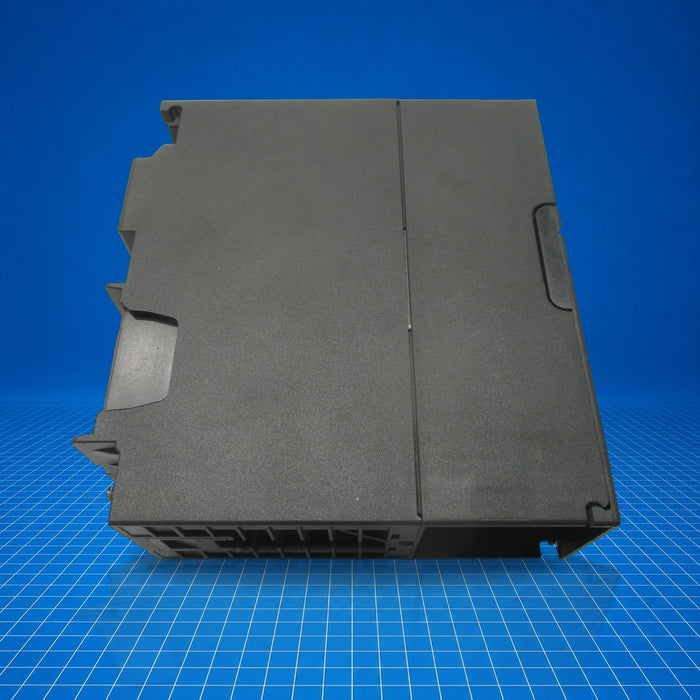

6GK7343-1EX30-0XE0 Siemens
Original price
$980.38
-
Original price
$4,251.70
Original price
$980.38
$980.38
-
$4,251.70
Current price
$980.38
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens 6GK7343-1EX30-0XE0 is a CP 343-1 communications processor module for SIMATIC S7-300 systems. It provides a dual-port Industrial Ethernet interface (10/100 Mbit/s) via an integrated ERTEC 200 switch, enabling connectivity via ISO/TCP-IP and PROFINET IO in controller or device mode. It supports S7 communication (fetch/write, send/receive via RFC1006), multicast, DHCP, NTC CPU synchronization, initialization via LAN, and optional diagnostics. Typical installations include machine-level networking and distributed IO integration within S7-300 control architectures.
Best Suited For
- SIMATIC S7-300 integration into Industrial Ethernet networks
- PROFINET IO controller or device deployments
- S7 fetch/write and open communication via RFC1006
- Network topology requiring integrated 2-port Ethernet switching
Ethernet ports
2 × RJ45 (10/100 Mbit/s)
Power supply
24 V DC (external) plus 5 V from backplane
Power loss
5.8 W
Ambient operating temp
0 … 40 °C vertical install (≤60 °C horizontal)
Ingress protection
IP20
Technical Specifications
I/O & Electrical
Supply voltage (external)
24 V DC ±15 %/+20 %
Supply voltage (backplane)
5 V DC
Backplane current (5 V typical)
0.2 A
External current (24 V typical)
0.16 A
External current (24 V max)
0.2 A
Power loss
5.8 W
Communication & Power
Ethernet interfaces
2 × RJ45 ports (10/100 Mbit/s)
Supported protocols
ISO/TCP-IP, PROFINET IO (controller/device), S7, RFC1006, multicast, DHCP, NTC CPU sync
Physical & Environmental
Operating temperature (vertical)
0 … 40 °C
Operating temperature (horizontal busbars)
0 … 60 °C
Storage/transport temperature
-40 … +70 °C
Relative humidity (operating, 25 °C)
≤95 % (no condensation)
Protection class
IP20
Dimensions (W×H×D)
40 mm × 125 mm × 120 mm
Weight
0.22 kg
Mounting
S7-300 rail
Certifications
CEUKCARoHScULusKCEACATEXIECExFM
