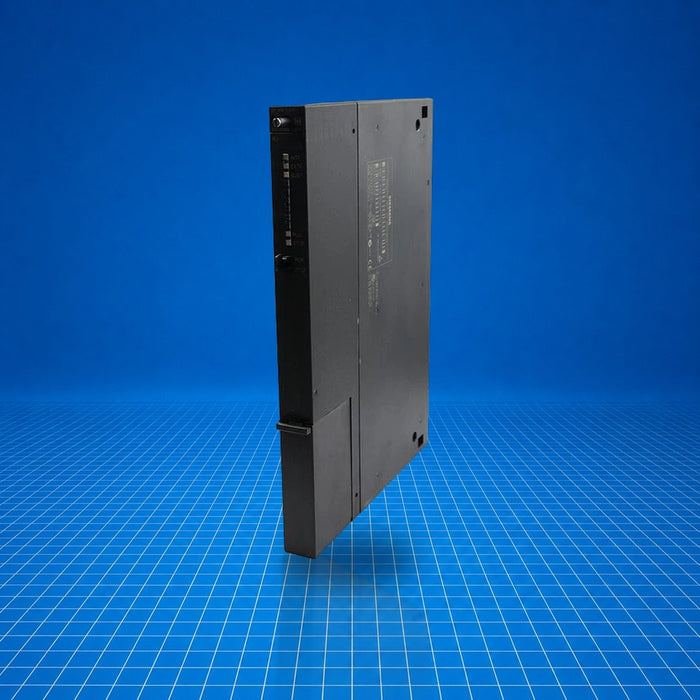

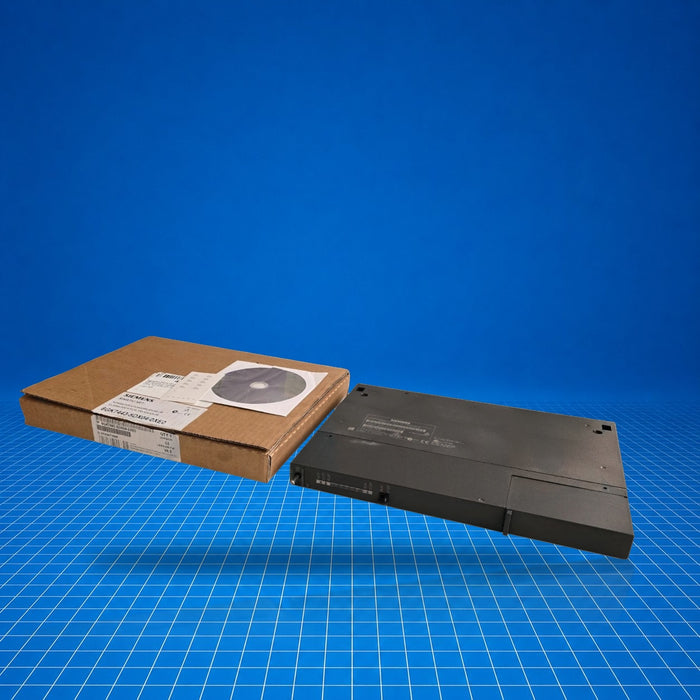

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
6GK7443-5DX04-0XE0 Siemens
Original price
$374.85
-
Original price
$3,190.00
Original price
$374.85
$374.85
-
$3,190.00
Current price
$374.85
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 6GK7443-5DX04-0XE0 is the CP 443-5 Extended communications processor from Siemens, designed to connect a SIMATIC S7-400 PLC to PROFIBUS DP networks. It supports S5-compatible, PG/OP, S7, and open communication services with support for up to 12 Mbit/s PROFIBUS DP transmission. The module enables PROFIBUS DP master functionality, routing, time synchronization, and on-the-fly insertion/removal of distributed I/O. It installs in the S7-400 rack and is configured via STEP 7 Professional V11 SP1. 6GK7443-5DX04-0XE0.
Best Suited For
- Providing PROFIBUS DP master communication for S7-400 systems
- Cross-network PG/OP or S7 communication routing
- Adding/modifying distributed I/O during operation
- Time synchronization across PROFIBUS segments
Module type
CP 443-5 Extended
Backplane supply voltage/current
5 V / 0.6 A
Power loss
3 W
Ambient operation temp.
0 … 60 °C
Dimensions (W×H×D)
25 mm × 290 mm × 210 mm
Technical Specifications
Communication & Power
Supply voltage
5 V DC (backplane bus)
Typical consumption
0.6 A
Power loss
3 W
PROFIBUS DP transmission rate
9.6 kbit/s … 12 Mbit/s
PROFIBUS DP interface
1 × 9-pin Sub-D (RS-485)
Physical & Environmental
Module format
Compact module S7-400 single width
Width
25 mm
Height
290 mm
Depth
210 mm
Net weight
0.65 kg
Operation temperature
0 … 60 °C
Storage/Transport temp.
-40 … +70 °C
Relative humidity
≤ 95 % at 25 °C (non-condensing)
Protection class
IP20
