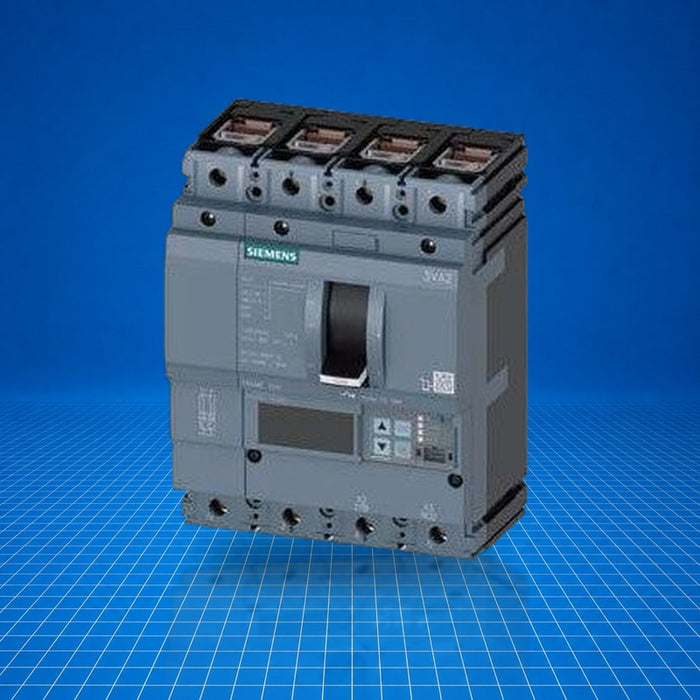

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
3VA2063-6KQ46-0AA0 Siemens
Sold out
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$0.00
-
$0.00
Current price
$0.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
Siemens 3VA2063-6KQ46-0AA0 is a 4-pole molded-case circuit breaker from the 3VA2 IEC Frame 100 family. It provides overload (Ir adjustable 25 A…63 A), short-circuit (Isd = 0.6…10× In; Ii = 1.5…12× In), neutral conductor protection (adjustable up to 160 %), and ground-fault protection (0.25…1× In, switchable). Rated for up to 85 kA breaking capacity at 415 V, it is used for motor and line protection in industrial distribution panels where high breaking capacity and adjustable protection functions are required. Part number: 3VA2063-6KQ46-0AA0.
Best Suited For
- Industrial motor feeder protection
- Main incoming panel protection
- Neutral conductor fault detection
- Ground-fault sensitive circuits
- Applications requiring adjustable overload/short-circuit protection
Poles
4
Rated current (In)
63 A
Breaking capacity (Icu)
85 kA @ 415 V AC
Power loss max
5.4 W
Weight
3.2 kg
Technical Specifications
I/O & Electrical
Rated current
63 A at 40 °C…70 °C temperature range
Overload adjustment range (Ir)
25 A…63 A
Short-circuit protection (Isd)
0.6…10× In
Short-circuit protection (Ii)
1.5…12× In
Neutral protection adjustable
OFF or up to 160 %
Ground-fault protection (Ig)
0.25…1× In, can be switched off
Icu breaking capacity
85 kA @ 415 V AC
Communication & Power
Communication function
Yes
Measurement function
Yes
Physical & Environmental
Insulation voltage
800 V
Rated operating voltage
690 V AC
Power loss (max)
5.4 W
Power loss per pole (hot)
1.8 W
Mechanical service life
25 000 cycles
Electrical endurance (AC-1) @ 415 V
15 000 cycles
Electrical endurance (AC-1) @ 690 V
10 500 cycles
Net weight
3.2 kg
