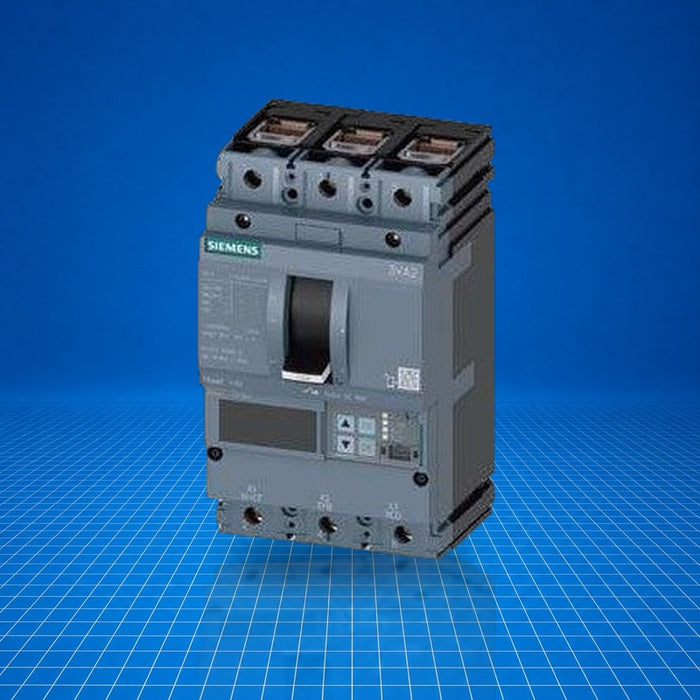

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
3VA2063-8KP36-0AA0 Siemens
Sold out
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$0.00
-
$0.00
Current price
$0.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 3VA2063-8KP36-0AA0 is a Siemens SENTRON 3-pole molded-case circuit breaker from the 3VA2 IEC Frame 100 family. It provides line protection through an ETU850 trip unit with LSI (long-time, short-time, instantaneous) functionality. Designed for overcurrent and short-circuit protection in low-voltage power distribution systems, it features a 63 A operational current rating, 150 kA breaking capacity at 415 V, and optionally allows neutral conductor protection via external current transformer. 3VA2063-8KP36-0AA0 is suitable for industrial motor control centers, distribution panels, and MCC bucket applications.
Best Suited For
- Motor control centers (MCC buckets)
- Low-voltage distribution panels
- Industrial machinery line protection
- Retrofit of existing Siemens MCC systems
- Facilities requiring neutral conductor protection options
Operational current
63 A
Breaking capacity Icu @ 415 V
150 kA
Trip unit
ETU850 (LSI)
Poles
3
Net weight
2.5 kg
Technical Specifications
I/O & Electrical
Operational current (at 40-70 °C)
63 A
Maximum breaking capacity (Icu) @ 415 V AC
150 kA
Maximum breaking capacity (Icu) @ 240 V
200 kA
Communication & Power
Trip unit type
ETU850 (LSI)
Overcurrent protection Ir range
25 A…63 A
Short-circuit protection Isd
0.6…10×In
Instantaneous protection Ii
1.5…12×In
Neutral conductor protection
Optional with external CT up to 160 %
Physical & Environmental
Insulation voltage (rated)
800 V
Rated operating voltage (AC)
690 V
Power loss (max)
3 W
Power loss per pole (hot)
1 W
Mechanical service life
25 000 cycles
Electrical endurance at 415 V (AC-1)
15 000 cycles
Electrical endurance at 690 V (AC-1)
10 500 cycles
