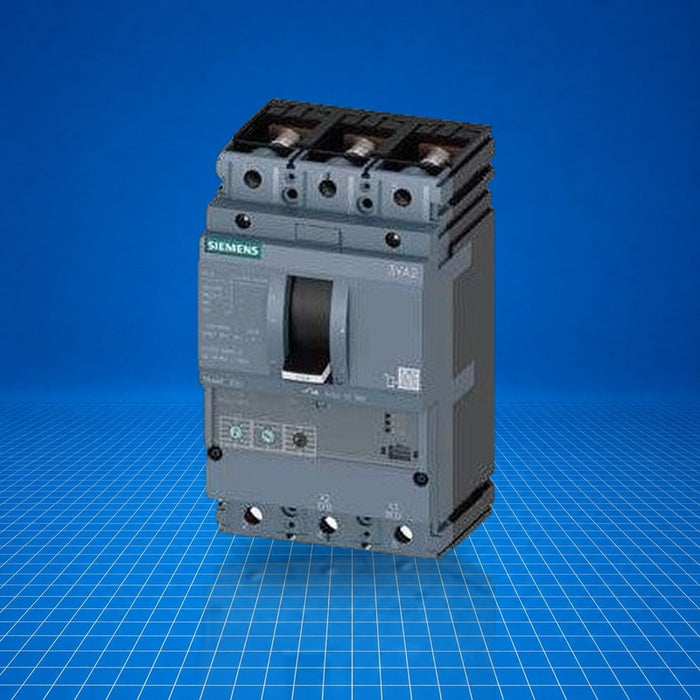

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.

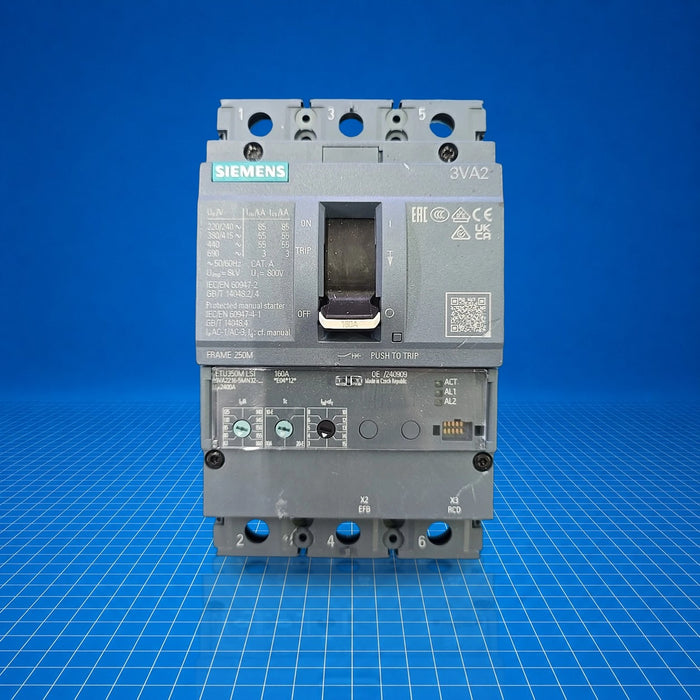

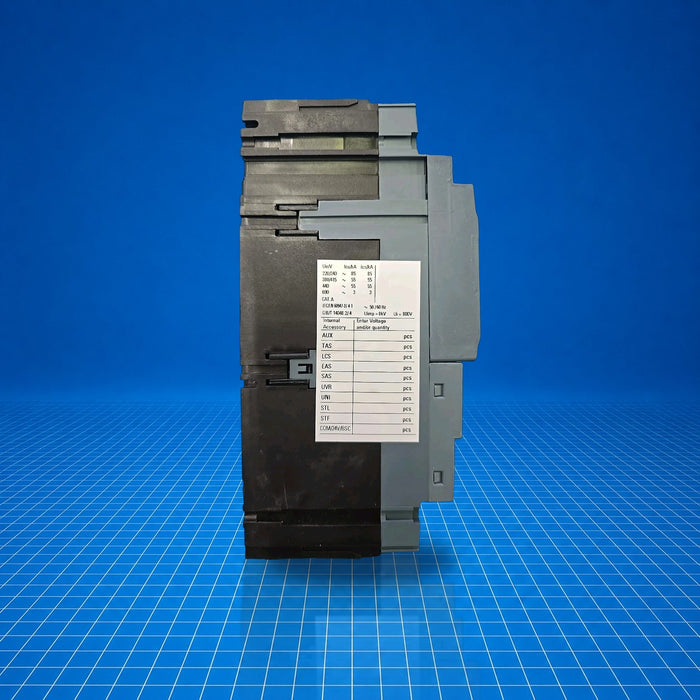

3VA2216-5MN32-0AA0 Siemens
Original price
$0.00
-
Original price
$1,375.00
Original price
$1,375.00
$0.00
-
$1,375.00
Current price
$1,375.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens 3VA2216-5MN32-0AA0 is a SENTRON 3VA2 series three-pole molded case circuit breaker (IEC Frame 250) with motor protection (ETU350M) and long-delay, short-delay and instantaneous (LSI) trip elements. It provides adjustable overload and short-circuit protection (Ir = 63 A…160 A, Isd = 3…15 × Ir, Ii = 15 × In) with a breaking capacity class M (Icu = 55 kA @ 415 V). It is intended to protect motors and associated circuits in industrial power distribution systems. 3VA2216-5MN32-0AA0 is suitable where compact motor protection is required in control panels or distribution boards.
Best Suited For
- Motor feeder protection in IEC systems
- Industrial panelboard motor circuits
- Overload and short-circuit protection of 160 A feeders
- Retrofit into existing 3VA2 motor protection installations
Rated current range
63 A…160 A
Breaking capacity Icu
55 kA @ 415 V
Trip type
ETU350M (LSI)
Poles
3-pole
Technical Specifications
I/O & Electrical
Rated current (Ir)
63 A…160 A
Short-circuit protection (Isd)
3…15 × Ir
Instantaneous current (Ii)
15 × In
Physical & Environmental
Poles
3-pole
