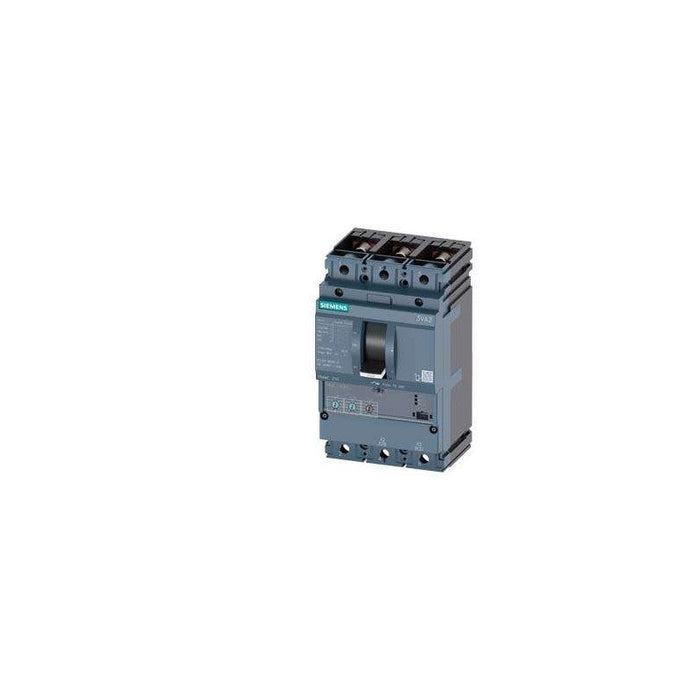

3VA2225-5HL32-0AA0 Siemens
Sold out
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$0.00
-
$0.00
Current price
$0.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens 3VA2225-5HL32-0AA0 is a molded case circuit breaker (MCCB) from the 3VA2 IEC Frame 250 series. It provides line protection via an ETU320 overcurrent release with LI (long-time and instantaneous) functionality. Rated for 3-pole operation at up to 250 A, it offers adjustable overload and short-circuit protection (Ir = 100-250 A, Ii = 1.5-10 × In). It is employed in power distribution systems, industrial control panels, motor and feeder protection, and process automation environments. This part is built for integration into medium-voltage switchboards and control cabinets.
Best Suited For
- Industrial power distribution panels
- Motor feeder circuits
- Process control and automation systems
- Replacement or upgrade of existing 3VA2 frame installations
Poles
3-pole
Rated current (40 °C)
250 A
Max breaking capacity @ 415 V
55 kA
Power loss (max)
48 W
Technical Specifications
I/O & Electrical
Insulation voltage
800 V
Rated operating voltage (AC)
690 V
Rated current (40 °C)
250 A
Adjustable overload (Ir)
100 A…250 A
Adjustable short-circuit (Ii)
1.5 × In … 10 × In
Communication & Power
Power loss (max)
48 W
Power loss per pole (hot operating)
16 W
Physical & Environmental
Mechanical service life
25,000 cycles
Electrical endurance @ 380/415 V
12,000 cycles
Electrical endurance @ 690 V
8,400 cycles
Net weight
2.177 kg
Dimensions (HxWxD)
181 × 105 × 86 mm
