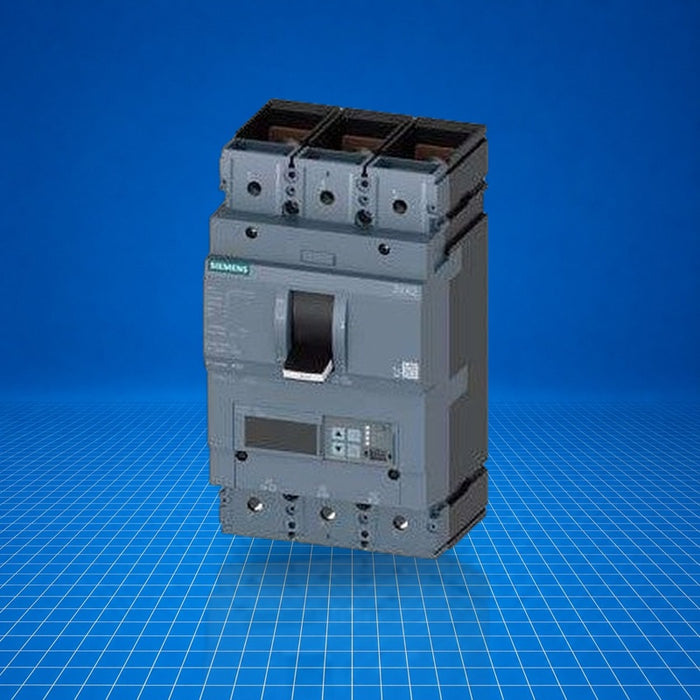

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
3VA2340-6JQ32-0AA0 Siemens
Sold out
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$0.00
-
$0.00
Current price
$0.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
Siemens part 3VA2340-6JQ32-0AA0 is a 3-pole molded-case circuit breaker in the 3VA2 IEC Frame 400 family. It provides line protection via ETU560 electronic trip unit with LSIG characteristics, adjustable overload (Ir 160 A-400 A), short-circuit (Isd 0.6-10 × In; Ii 1.5-10 × In) and optional neutral/ground-fault protection (Ig 0.2-1 × In). It is designed for industrial distribution panels and motor feeders in medium-voltage applications requiring adjustable electronic protection with high breaking capacity. Part 3VA2340-6JQ32-0AA0 integrates mounting hardware and is suitable for retrofit or new installations.
Best Suited For
- Main incoming or distribution feeder protection in IEC-based systems
- Application requiring adjustable LSIG electronic protection
- Installations needing up to 400 A continuous rating
- Systems requiring high breaking capacity (Icu 85 kA @ 415 V)
Rated current range
160 A…400 A
Short-circuit breaking capacity
85 kA @ 415 V (class H)
Poles
3-pole
Overload/short-circuit protection
ETU560 LSIG adjustable
Ground-fault option
Optional Ig 0.2…1 × In
Technical Specifications
I/O & Electrical
Rated current
160 A…400 A
Short-circuit protection Isd
0.6…10 × In
Instantaneous short-circuit Ii
1.5…10 × In
Ground-fault pick-up (optional) Ig
0.2…1 × In
Physical & Environmental
Number of poles
3
Frame size
IEC Frame 400
Net weight
4.695 kg
Mounting
Nut keeper kit included
Breaking capacity class
H
