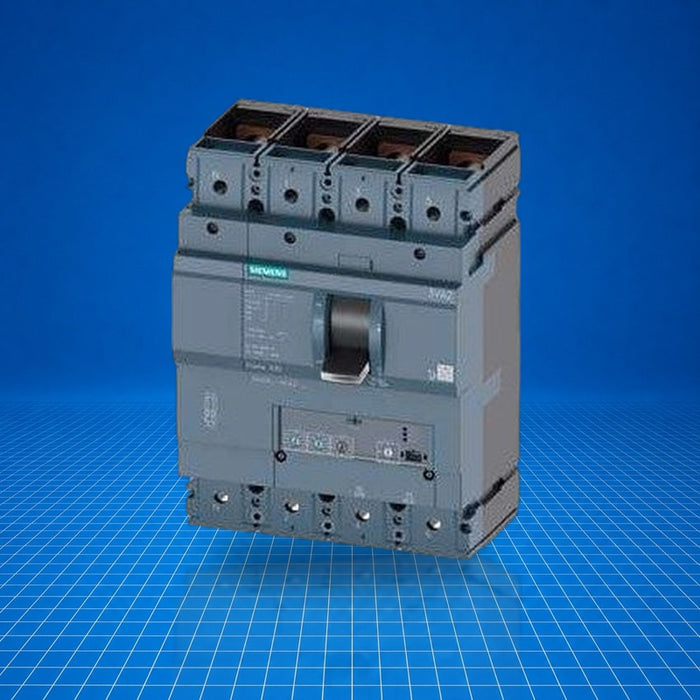

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
SKU 3VA2463-5HL42-0AA0
3VA2463-5HL42-0AA0 Siemens
Sold out
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$0.00
-
$0.00
Current price
$0.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
Siemens 3VA2463-5HL42-0AA0 is a SENTRON 3VA2 series molded case circuit breaker designed for industrial power distribution. It provides four-pole line protection with an ETU320 electronic trip unit and LI overload and short-circuit protection. The unit is rated for up to 55 kA breaking capacity at 415 V and a continuous rated current of 630 A. It is used for protection of feeder circuits, motor outlets, and machinery electrical panels in industrial environments.
Best Suited For
- Feeder circuit protection in industrial switchboards
- Integration in machine tool or automated production line panels
- Protection of distribution feeders in manufacturing facilities
- Replacement unit in existing 3VA2 frame-630 installations
Poles
4
Rated current @ 40 °C
630 A
Breaking capacity Icu @ 415 V
55 kA
Power loss (max)
162 W
Technical Specifications
I/O & Electrical
Rated operational voltage AC
690 V
Rated insulation voltage
800 V
Rated current @ 40 °C
630 A
Breaking capacity Icu @ 415 V
55 kA
Switching capacity class
M
Communication & Power
Electronic trip unit
ETU320
Overload protection type
LI
Power loss (max)
162 W
Power loss per pole @ In hot state
54 W
Physical & Environmental
Poles
4
Net weight
6.624 kg
Mechanical service life
20 000 operations
Electrical endurance @ 380/415 V (AC-1)
5 000 operations
Electrical endurance @ 690 V (AC-1)
3 500 operations
