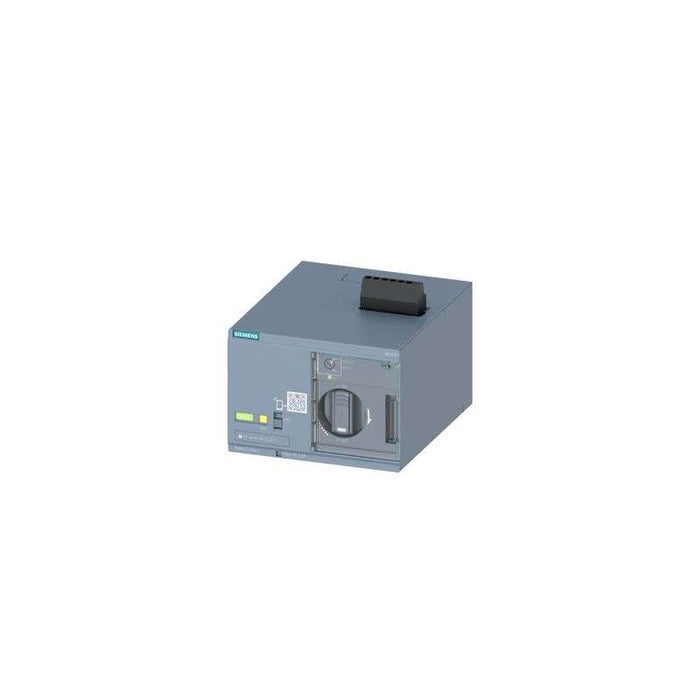

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
SKU
3VA9267-0HA20 Siemens
Original price
$0.00
-
Original price
$916.47
Original price
$916.47
$0.00
-
$916.47
Current price
$916.47
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens 3VA9267-0HA20 is a motorized operating mechanism (motor operator) for the SENTRON 3VA20/21/22 molded-case circuit breaker platform. It enables remote switching of the breaker by motorized actuation, with typical make and break times of 1 s each. The unit accepts both AC and DC control voltages and interfaces with standard 3VA breakers for applications in industrial power distribution, motor control centers, and remote operation systems. 3VA9267-0HA20 adheres to SENTRON accessory design standards within Siemens' 3VA family.
Best Suited For
- Remote switching of 3VA20/21/22 molded-case breakers
- Motor control centers requiring remote operate capability
- Automated power distribution panels
- Retrofitting manual breakers with remote actuation
Control voltage range
110 V … 230 V AC / 110 V … 250 V DC
Make / break time
1 s
Apparent power consumption
250 VA
Weight
908 g
Operational ambient temperature
-25 °C … 70 °C
Technical Specifications
I/O & Electrical
Control voltage (AC 50/60 Hz)
110 V … 230 V
Control voltage (DC)
110 V … 250 V
Apparent power
250 VA
Physical & Environmental
Make time
1 s (typical)
Break time
1 s (typical)
Height
75 mm
Width
105 mm
Depth
132 mm
Weight
908 g
Connectable conductor cross-section (solid / finely stranded / stranded)
1.5 mm² … 2.5 mm²
Stripped length
7 mm
Tightening torque
0.36 N·m … 0.44 N·m
Operating ambient temperature
-25 °C … 70 °C
Storage ambient temperature
-40 °C … 80 °C
Certifications
EU Declaration of ConformityUK Declaration of ConformityEACRCMLloyd's Register
