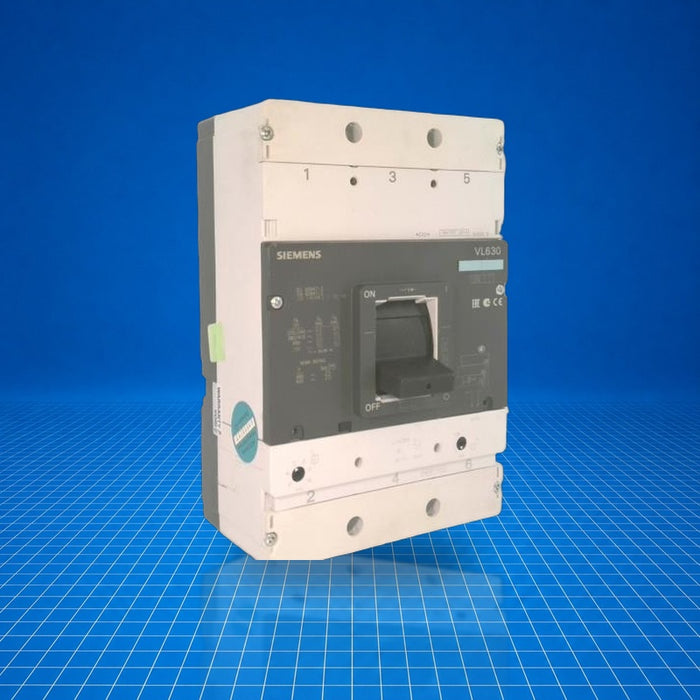

Product image is representative; revision or series may vary.
Contact us to request a specific version.

SKU 3VL5763-1DC36-0AA0

3VL5763-1DC36-0AA0 Siemens

Name: 3VL5763-1DC36-0AA0 Siemens
Brand: Siemens
SKU: 3VL5763-1DC36-0AA0
Price: 10996.5 USD
Availability: InStock

$0.00 - $10,996.50

$10,996.50

$0.00 - $10,996.50

$10,996.50

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (5) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Siemens distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The Siemens 3VL5763-1DC36-0AA0 is a molded-case circuit breaker (MCCB) from Siemens' 3VL series, designed for chassis-mount power modules (e.g. SINAMICS S120 drive lines). It functions as the line-side protection, rated for 500-630 A under IEC 60947, to safeguard power modules in industrial electrical systems. Typical applications include power supply protection for inverter drives in manufacturing and process control environments. The part number appears as both circuit breaker type and line protection component in Siemens documentation.

Best Suited For

Protection of SINAMICS S120 power module chassis
Line-side over-current protection in drive systems
Industrial applications requiring IEC 60947 MCCB rated 500-630 A
Use where modular MCCBs integrate with Siemens 3VL platform

Rated current (IEC 60947)

500 … 630 A

Frame compatibility

3VL series power module chassis

Line voltage

3-ph 380 … 480 V AC ±10 % (-15 % <1 min)

Mounting

Chassis-mount for SINAMICS S120 modules

Technical Specifications

I/O & Electrical

Rated current (IEC 60947)

500 … 630 A

Line voltage

3-ph 380 … 480 V AC ±10 % (-15 % <1 min)

Physical & Environmental

Mounting

Chassis-mount for power modules

Frame series

3VL series

Certifications

IEC 60947
