6AV2123-2MA03-0AX0 Siemens

Name: 6AV2123-2MA03-0AX0 Siemens
Brand: Siemens
Price: 1499.98 USD
Availability: InStock

$0.00 - $1,499.98

$1,499.98

$0.00 - $1,499.98

$1,499.98

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (4) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Siemens distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

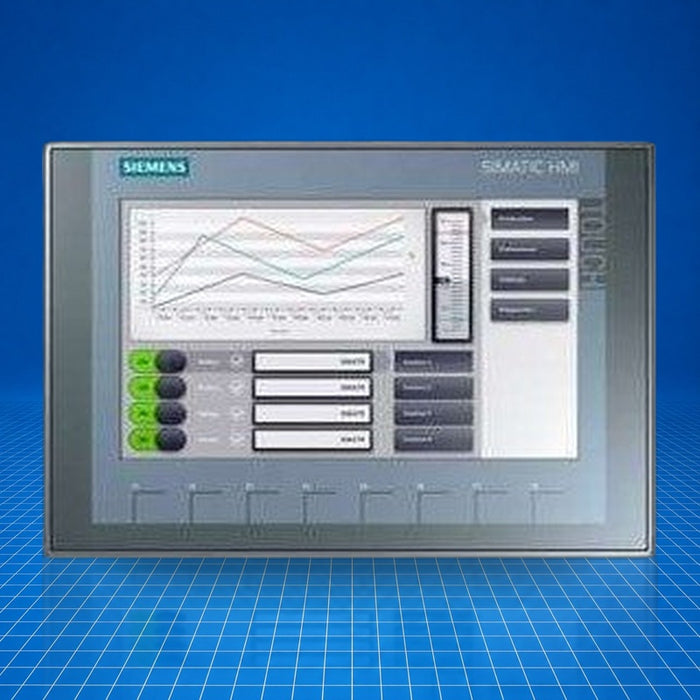

Siemens SIMATIC HMI KTP1200 Basic DP (6AV2123-2MA03-0AX0) is a human-machine interface panel featuring both key and analog-resistive touch operation. Its 12-inch TFT widescreen display (1 280 × 800 pixels, 65 536 colors) and PROFIBUS DP communications support operator control and monitoring in medium-complexity manufacturing or process systems. Configurable via WinCC Basic or STEP 7 Basic (TIA Portal V13 and later), it is typically applied in machine-level control, production lines, packaging systems, and basic diagnostics.

Best Suited For

Operator interface for PROFIBUS DP-based control applications
Machine-side display and control in production or packaging systems
Basic process visualization and alarm/message handling
Applications requiring compact HMI panels with touchscreen and keypad

Display

12 in TFT, 1 280 × 800 px, 65 536 colors

Operation

Keypad + analog-resistive touch

Communication

PROFIBUS DP, MPI

Supply voltage

24 V DC (19.2 - 28.8 V)

Memory (user data)

10 Mbyte

Technical Specifications

I/O & Electrical

Supply voltage

24 V DC (19.2 - 28.8 V)

Current consumption (rated)

550 mA

Active power input (typ.)

13.2 W

Communication & Power

PROFIBUS interface

Yes

MPI interface

Yes

RS-485/RS-422

1 (combined)

USB interface

1 (up to 16 GB USB memory)

Physical & Environmental

Dimensions (front)

330 mm × 245 mm

Mounting cutout

310 mm × 221 mm

Mounting depth

54.9 mm

Weight (without packaging)

1 710 g

Weight (with packaging)

2.2 kg

IP rating (front/rear)

IP65 / IP20

Enclosure front

Type 4 / 4x

Operating temperature (vertical)

0 °C - 50 °C

Storage temperature

-20 °C - 60 °C

Relative humidity (operation)

≤ 90 %, no condensation

Certifications

CEcULusRCMEACABSBVDNVLRNKChina RoHS

CE, cULus, RCM, EAC; Maritime approvals: ABS, BV, DNV, LR, NK; China RoHS. No ATEX/IECEx/FM hazardous-area ratings.
