Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

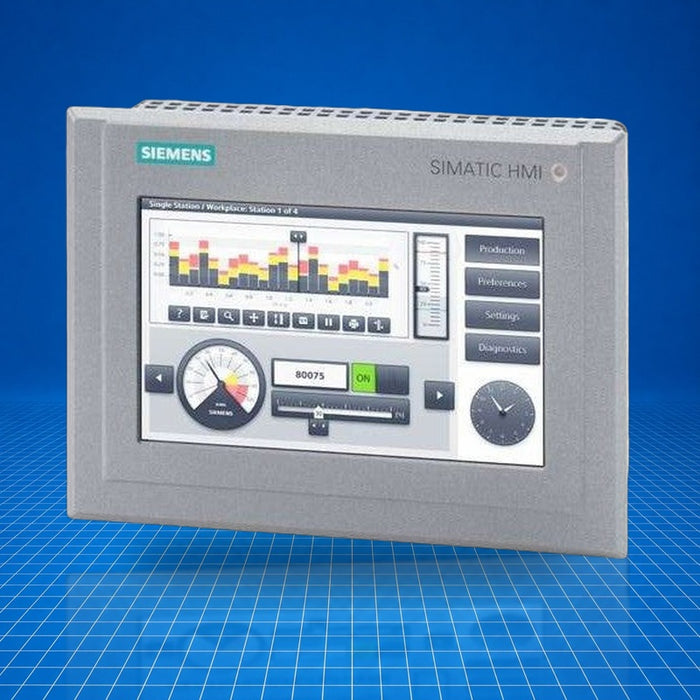

The Siemens SIMATIC HMI TP700 Comfort Outdoor (6AV2124-0GC13-0AX0) is a 7-inch operator interface panel from the Comfort Panels Outdoor family. It functions as a touch-operated human-machine interface in industrial control systems, communicating via PROFINET, PROFIBUS, MPI, and EtherNet/IP. It includes 12 Mbyte of user-configurable non-volatile memory and operates on an x86 architecture under Windows CE 6.0. Commonly deployed in outdoor or harsh environments-such as water treatment, infrastructure, or factory floor applications-the TP700 supports diagnostic displays, trend views, and recipe management.

Best Suited For

Outdoor or panel-mounted operator control in industrial environments
PROFINET or PROFIBUS network integration
Applications requiring graphical interface with trend, alarm, recipe display
Environments requiring IP66/NEMA 4x front protection

Display

7 in TFT, 800 × 480 px, 16 million colors

Input voltage

24 V DC (19.2 - 28.8 V)

Power consumption

17 W (0.7 A at 24 V)

Protection front/rear

IP66 / IP20

Memory for user data

12 Mbyte

Technical Specifications

I/O & Electrical

Input voltage

24 V DC (19.2 - 28.8 V)

Current consumption

0.7 A (rated)

Power consumption

17 W (typical)

Starting inrush (I²t)

0.5 A²·s

Communication & Power

Industrial Ethernet ports

2 (integrated switch)

USB interfaces

2 × USB 2.0 (1 × Mini-B)

RS-422/485

1 combined port

Protocols supported

PROFINET-IO, EtherNet/IP, PROFIBUS, MPI, TCP/IP, DHCP, SNMP, DCP, LLDP, HTTP

SD card slots

2

Physical & Environmental

Display

7 in TFT, 800 × 480 px, 16 M colors, bonded daylight-readable

Backlight MTBF

50 000 h

Backlight dimmable

Yes (LED, manual/automatic)

Touch type

Analog-resistive

Front enclosure rating

IP66, NEMA 4 / 4x

Rear enclosure rating

IP20

Operating temperature

-30 °C to 60 °C (vertical)

Weight

1.5 kg (without packaging)

Dimensions (front W × H × D)

214 × 158 × 64.6 mm

Mounting cut-out (W × H)

198 × 142 mm

Certifications

CEcULusRCMKCATEX Zone 2/22IECEx Zone 2/22FM Class I Div 2ABSBVDNVLR

Approvals include CE, cULus, RCM, KC. Hazardous-location markings for ATEX Zone 2/22, IECEx Zone 2/22, FM Class I Division 2. Marine approvals: ABS, BV, DNV, LR; others in preparation.
