6AV2124-0MC01-0AX0 Siemens-Siemens-Never Used Surplus-PLC Department
Product image is representative; revision or series may vary.
Contact us to request a specific version.

6AV2124-0MC01-0AX0 Siemens

$2,131.50 - $2,204.88
$2,131.50
$2,131.50 - $2,204.88
$2,131.50
Surplus - Tested (With Warranty)
Need a Specific Revision?
$2,131.50
2 in stock
New / Open-Box Surplus
Need a Specific Revision?
$2,204.88
5 in stock
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (2) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Siemens distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

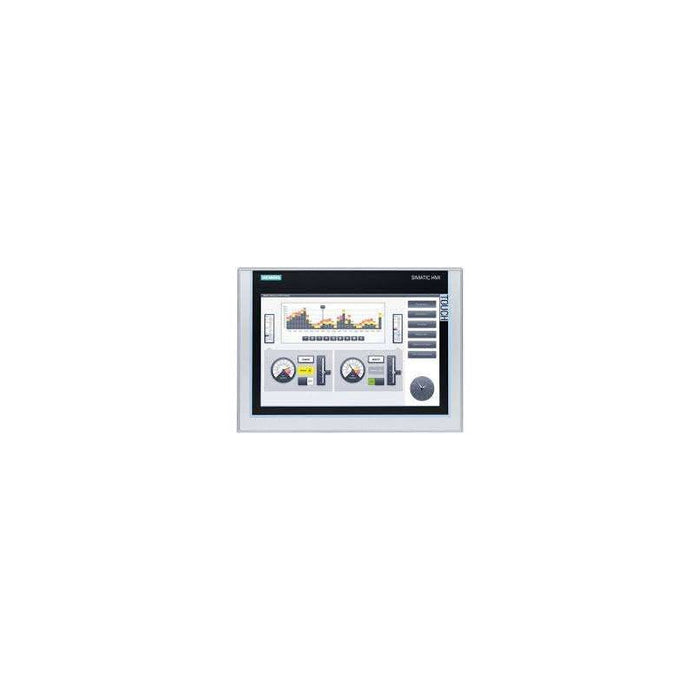

The Siemens SIMATIC HMI TP1200 Comfort panel, part number 6AV2124-0MC01-0AX0, is a 12.1-inch widescreen human-machine interface (HMI) designed for touchscreen operation via WinCC Comfort V11 (TIA Portal). It integrates PROFINET, MPI/PROFIBUS DP communication, and Windows CE 6.0, with 12 MB of configuration memory. Typically deployed in industrial automation for machine-level control, process visualization, recipe handling, and operator interaction in manufacturing and processing environments.

Best Suited For

  • Machine-level operator interface in discrete or process systems
  • PROFINET or PROFIBUS DP-based control systems
  • Batch and recipe handling applications
  • Migration projects on TIA Portal (WinCC Comfort V11)
Display
12.1 in TFT, 1280 × 800, 16 million colors
Touch type
Analog-resistive touch
Memory
12 MB configuration memory
Supply voltage
24 V DC (19.2-28.8 V)
IP rating
Front IP65, rear IP20

Technical Specifications

I/O & Electrical

Supply voltage
24 V DC (19.2-28.8 V)
Current consumption
0.85 A (typical)
Power input
20 W (typical)

Communication & Power

Industrial Ethernet ports
1 (2-port switch)
RS-485/RS-422 interface
1 (combined RS-422/485)
USB interfaces
2 × USB 2.0 (1 Mini-B)
PROFINET
Yes
PROFIBUS DP
Yes (MPI support)
EtherNet/IP
Yes
Other protocols
TCP/IP, DHCP, SNMP, DCP, LLDP, HTTP, HTTPS, HTML, XML, CSS, ActiveX, Web browser, PDF, media, etc.

Physical & Environmental

Display diagonal
12.1 in (261.1 × 163.2 mm)
Colors & resolution
16 777 216 colors; 1280 × 800 pixel
Backlight MTBF
80 000 h at 25 °C
Mounting orientation
Vertical; portrait and landscape supported
Tilt angle limit
≤ 35° without external ventilation
Ambient operating temp.
0 °C to 50 °C (vertical); down to 40 °C at tilt/portrait
Storage temp.
-20 °C to 60 °C
Humidity
≤ 90 % non-condensing
Enclosure rating
Front IP65; rear IP20; NEMA Type 4/4X front
Weight
≈ 3.460 kg

Certifications

CEcULusRCMKCULATEXIECExFMABSBVDNVGLLRNK

Front: CE, cULus, RCM, KC, UL; Hazardous-locations: ATEX Zone 2/22, IECEx Zone 2/22, cULus Class I Div 2, FM Class I Div 2; Marine: ABS, BV, DNV, GL, LR, NK; EMC: EN 55011 class A; Environmental declarations available.
