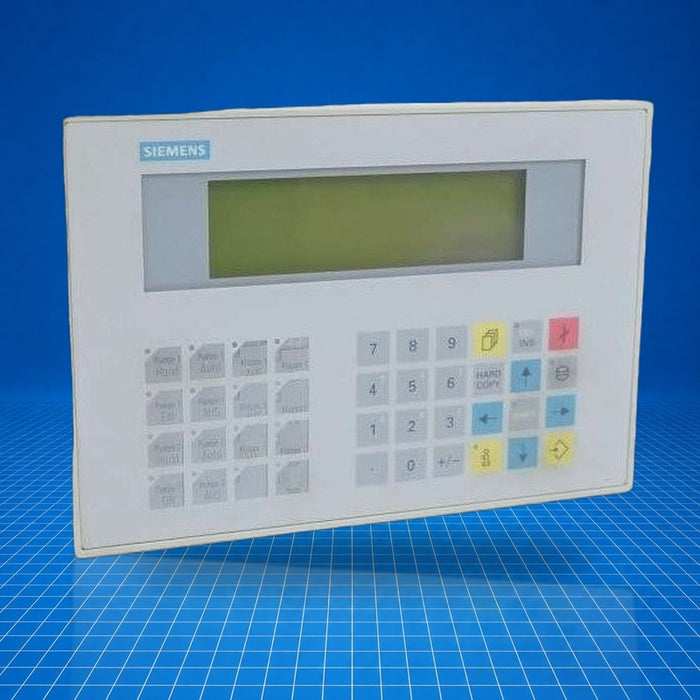

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
6AV3515-1MA20 Siemens
Original price
$449.85
-
Original price
$6,120.00
Original price
$449.85
$449.85
-
$6,120.00
Current price
$449.85
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens 6AV3515-1MA20 is a text-based operator panel (OP15 family) used as a local human-machine interface in control cabinets and consoles. It supports display of four lines up to approximately 2000 characters, navigation via eight softkeys, and communication via RS-422/485 links. It stores operator data in a 256 KB memory. Typical uses include system status display, parameter entry, and alarm messaging in industrial automation applications.
Best Suited For
- Machine-level operator input/output
- Text message display and logging
- System integration via RS-422/485 networks
- Control cabinet mounting
Display lines
4 lines
User memory
256 KB
Softkeys
8
Communication ports
RS-422/485
Operating temperature
0 to 60 °C
Technical Specifications
I/O & Electrical
User memory
256 KB
Softkeys
8
Communication & Power
Communication interfaces
RS-422/485
Physical & Environmental
Dimensions (H × W × D)
27.60 × 32 × 13.20 cm
Weight
1.1 kg (2.81 lbs)
Ambient temperature, operating
0 to 60 °C
Humidity, operating/storage
Up to 80 % (non-condensing)
Max operating altitude
1000 m
