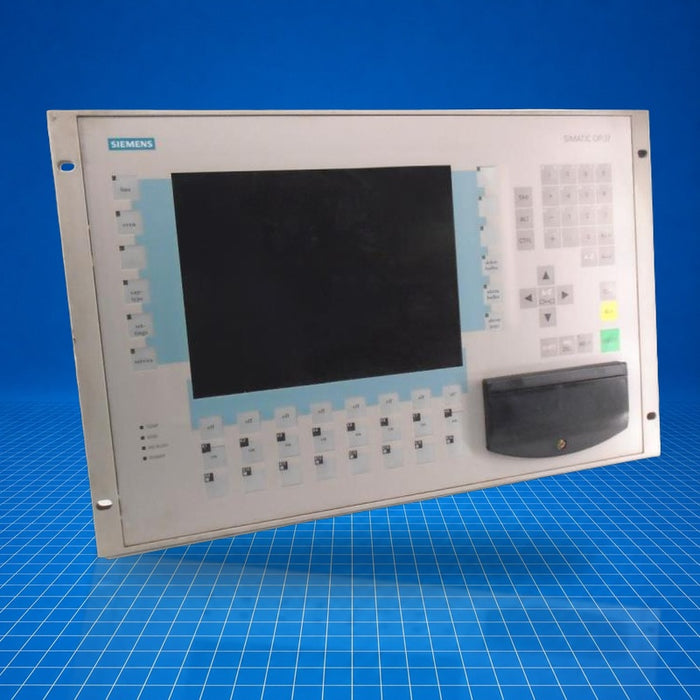

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
6AV3637-1LL00-0AX1 Siemens
Original price
$0.00
-
Original price
$2,715.30
Original price
$2,715.30
$0.00
-
$2,715.30
Current price
$2,715.30
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens 6AV3637-1LL00-0AX1, known as the OP37/Pro operator panel, belongs to the SIMATIC HMI platform and serves as a human-machine interface for machine-level control and monitoring. It integrates a Pentium-based controller with ProTool/Pro runtime on Windows 95, enabling graphic display and operator interaction in industrial automation systems. Typical applications include process supervision, machine diagnostics, recipe management, and factory floor operator control.
Best Suited For
- Machine-level process visualization
- Operator diagnostics and fault messaging
- Recipe entry and management
- Retrofit on legacy equipment
Display resolution
640 × 480 pixels
Processor speed
166 MHz Pentium
Memory DRAM
16 MB
Power consumption
typically 1.9 A at 24 V DC
Technical Specifications
I/O & Electrical
Power supply
24 V DC (range 18 V-30 V, transients up to 35 V for 500 ms)
Max continuous current
approx. 2.5 A
Backup battery
3.6 V lithium, approx. 1.5 Ah
Direct key module outputs
2 × 8 outputs, max 300 mA/output; high ≥ 15 V, low ≤ 10 V
Communication & Power
Interfaces
2 × TTY/RS-232C, 1 × X.27/TTY, MPI/PPI available (shared use)
Physical & Environmental
Display type
TFT LCD, 211 × 158 mm active area
Backlight type
2 × CCFL tubes, service life approx. 25 000 h
Enclosure rating
Front IP65, Rear IP20
Dimensions (W × H × D)
482.6 × 310.3 × 138 mm (cut-out 436 × 295 mm)
Weight
approx. 10 kg
Operating temperature
0 °C to 50 °C (non-operating -20 °C to -60 °C)
