6AV6545-0BA15-2AX0 Siemens
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

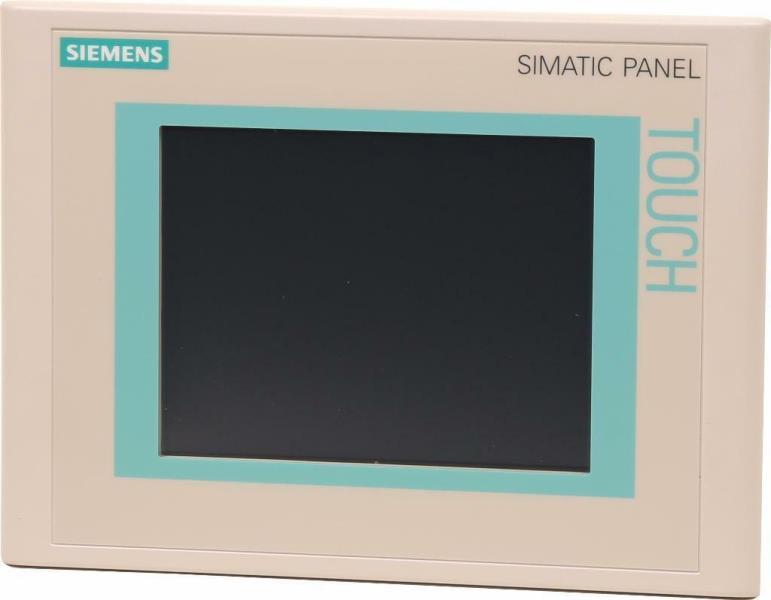

The Siemens 6AV6545-0BA15-2AX0 is a SIMATIC TP 170A HMI operator panel ("Blue Mode") featuring a 5.7-inch STN display with touch input. It integrates into SIMATIC control systems via MPI/PROFIBUS-DP and is configurable with ProTool/Lite or WinCC flexible Compact. Suitable for machine-level operator control in industrial environments requiring compact, panel-mounted visualization and interaction.
Best Suited For
- Machine-mount operator interface in SIMATIC S7 systems
- Simple visualization tasks via MPI or PROFIBUS-DP
- Applications using TIA-Portal with ProTool/Lite or WinCC flexible Compact
- Panel-mounted human-machine interaction in control cabinets
Technical Specifications
I/O & Electrical
Communication & Power
Physical & Environmental
Certifications
Certified for CE; UL/cUL conformity applies under Touch Panels TP 170A ("Blue Mode") series as per Siemens declarations.
