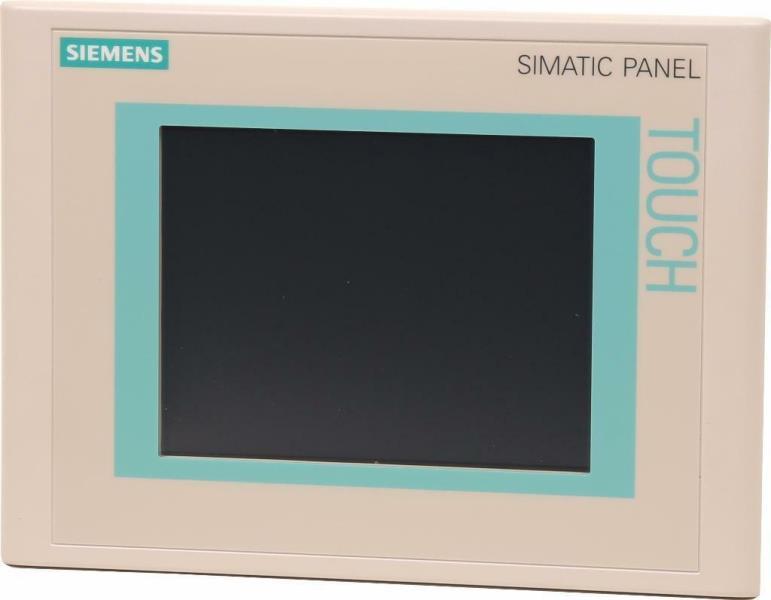

Product image is representative; revision or series may vary.
Contact us to request a specific version.

6AV6545-0BC15-2AX0 Siemens

Name: 6AV6545-0BC15-2AX0 Siemens
Brand: Siemens
SKU: 6AV6545-0BC15-2AX0
Price: 597.0 USD
Availability: InStock

$597.00 - $5,100.00

$597.00

$597.00 - $5,100.00

$597.00

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (5) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Siemens distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The Siemens SIMATIC TP170B color touch panel 6AV6545-0BC15-2AX0 is a panel-mounted HMI unit intended for operator-level interaction within industrial control systems. Belonging to the SIMATIC HMI family and formerly designated TP170B color, it functions as a user interface for displaying process data and for controlling PLC-driven systems. Typical use cases include machine control stations, operator dashboards, and factory-floor panels where local user input and status display are required.

Best Suited For

Local machine operator interface
ProfiBus-DP network integration
Configuration via MPI interface
Applications requiring printed logs via RS-232 printer port

Display size

5.7 in.

Resolution

320 x 240 pixels (QVGA)

Display colors

256 colors

Supply voltage

24 V DC (±20 %)

Front protection rating

IP65

Technical Specifications

I/O & Electrical

Supply voltage

24 V DC (±20 %)

Communication & Power

Communication interfaces

MPI / PROFIBUS-DP; 2×RS-232; 1×RS-422; 1×RS-485 (printer port)

Project memory

768 KB user memory

Physical & Environmental

Display type

STN color LCD, analog resistive touch

Operating temperature

0 °C to +50 °C

Front protection rating

IP65 (panel-mounted)

Weight

0.60 kg (1.31 lbs)

Certifications

CE declaration of conformity applies (HMI CE certification available under declaration 22067721) and UL/cUL conformity noted for TP 170B models including 6AV6545-0BC15-2AX; see Siemens conformity documentation.
