6AV6642-0BA01-1AX1 Siemens

Name: 6AV6642-0BA01-1AX1 Siemens
Brand: Siemens
SKU: 6AV6642-0BA01-1AX1
Price: 1099.97 USD
Availability: InStock
Rating: 5.0 (1 reviews)

$1,099.97 - $2,450.00

$1,099.97

$1,099.97 - $2,450.00

$1,099.97

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (5) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Siemens distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

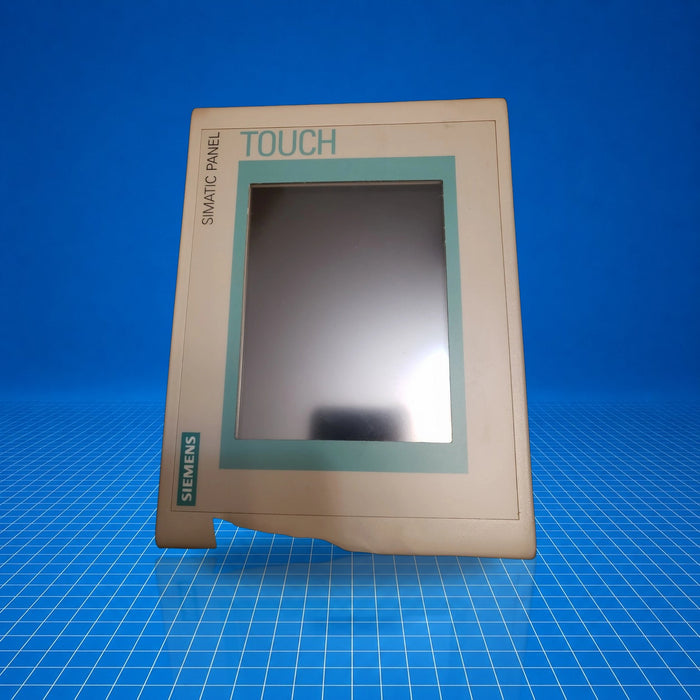

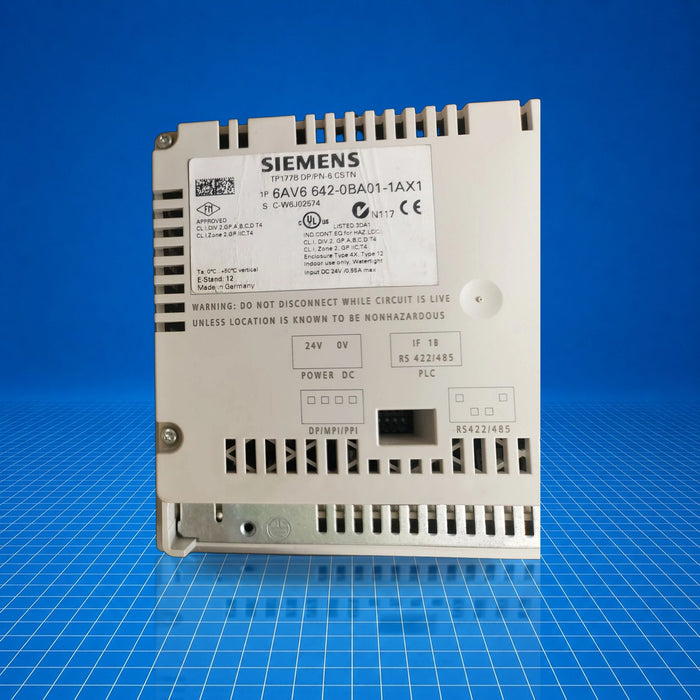

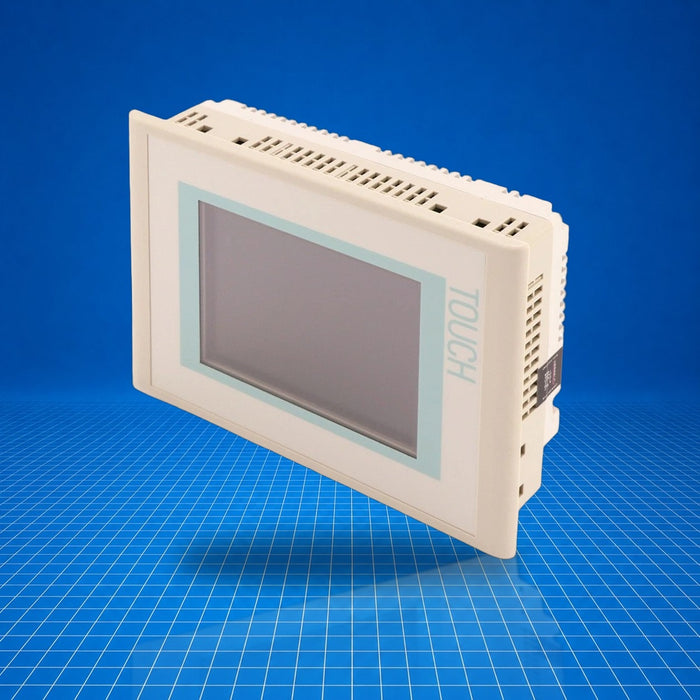

The 6AV6642-0BA01-1AX1 is a SIMATIC TP 177B operator panel with a 5.7-inch STN color display, part of Siemens' HMI panel range, intended for operator-machine interfaces in industrial automation systems. Configurable via WinCC flexible and usable in PROFINET and PROFIBUS DP networks, it provides user input and monitoring capability. In a control system context, it serves as a human-machine interface, facilitating parameter entry, status visualization, alarm acknowledgment, and local control functions in machine-level applications.

Best Suited For

Machine-level operator control and visualization
Integration via PROFINET IO or PROFIBUS DP networks
Replacement or spare part for TP 177B panels
Applications requiring compact HMI in control cabinet fronts

Display

5.7 in STN color (256 colors)

Resolution

320 × 240 px

Communication

Ethernet, MPI/PROFIBUS DP, USB

Protection (front/rear)

IP65 / IP20

Technical Specifications

I/O & Electrical

Supply voltage

24 V DC

Current consumption

0.24 A (rated)

Inrush current I²t

0.5 A²·s

Communication & Power

Ethernet interface

1 × RJ45 (max 12 Mbit/s)

RS-422 interface

1

RS-485 interface

1

USB interface

1 (up to 1 GB MMC/SD)

Card slot

MMC/SD combined (max 128 MB/512 MB)

Physical & Environmental

Display type

STN, 256 colors

Backlight MTBF

50 000 h at 25 °C

Operating temperature

0 °C to 50 °C

Storage temperature

-20 °C to 60 °C

Front protection

IP65, NEMA 4X/12 when installed

Rear protection

IP20

Dimensions (front)

212 × 156 mm

Mounting cut-out

198 × 142 mm

Mounting depth

44 mm

Weight

0.8 kg

Certifications

CEULcULusFM Class I Div 2GLABSBVDNV
