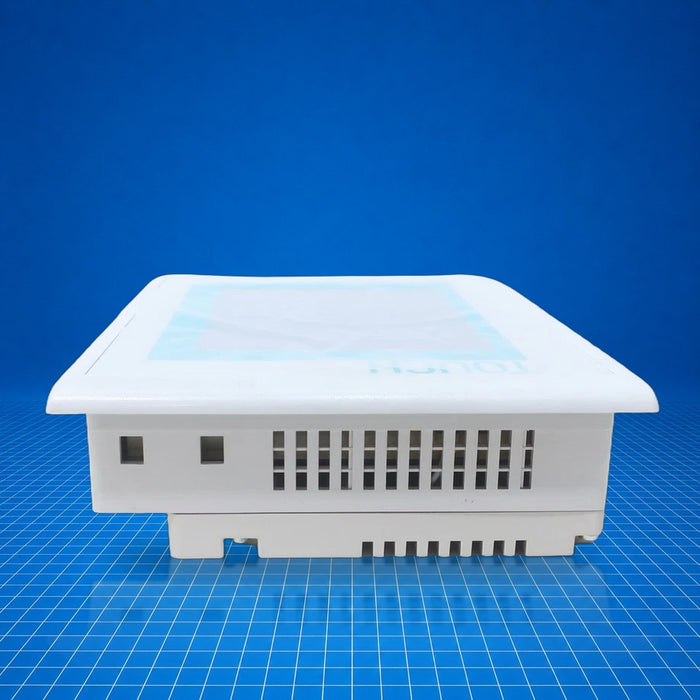

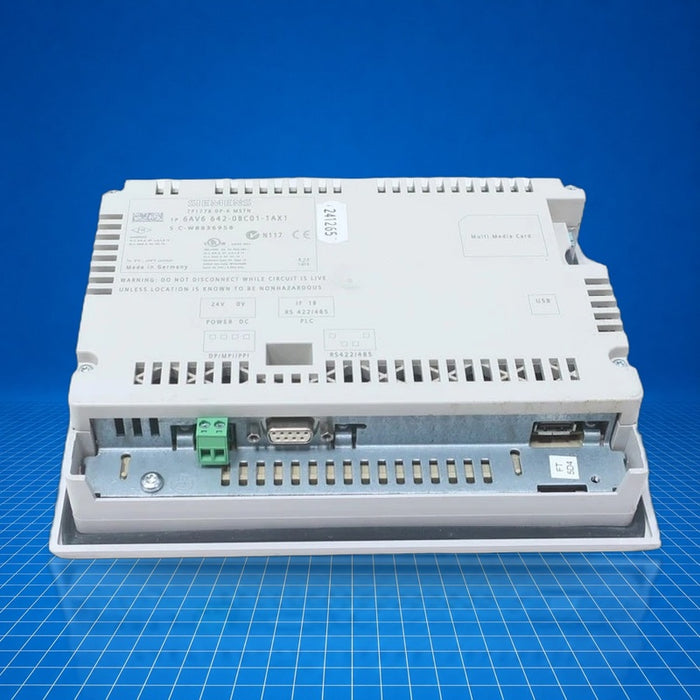

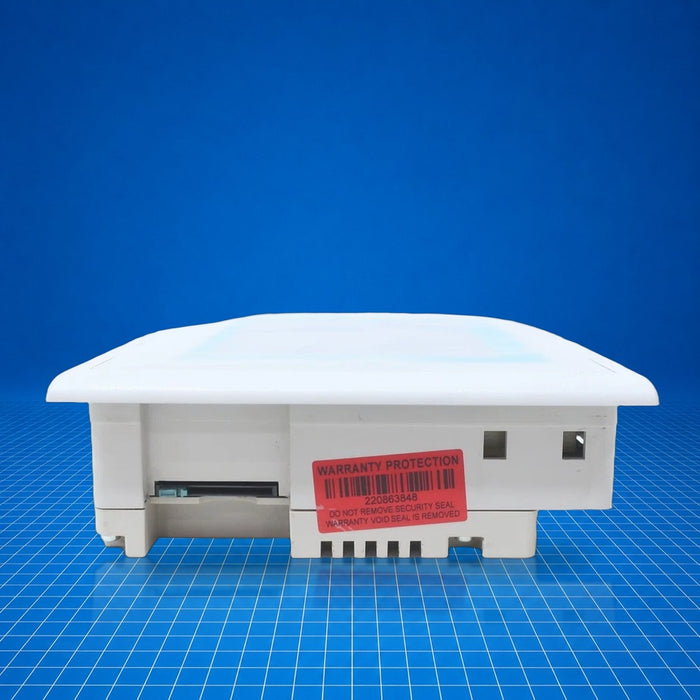

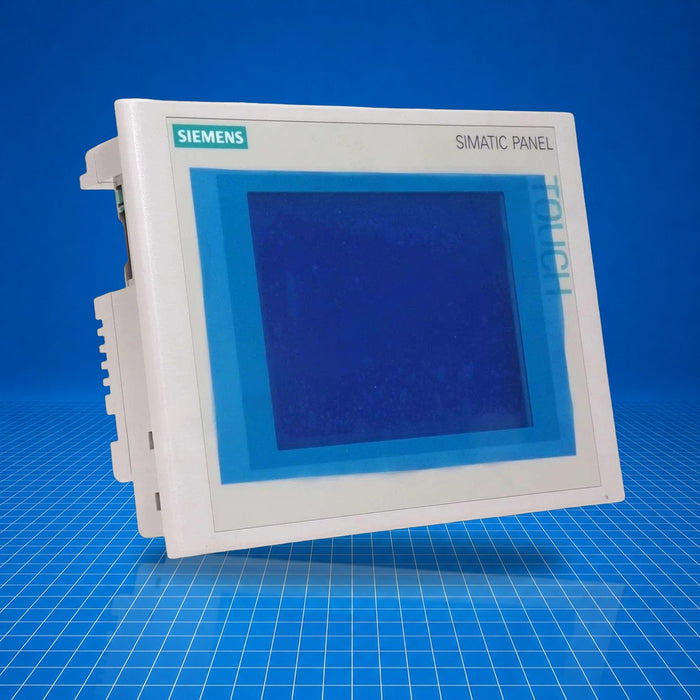

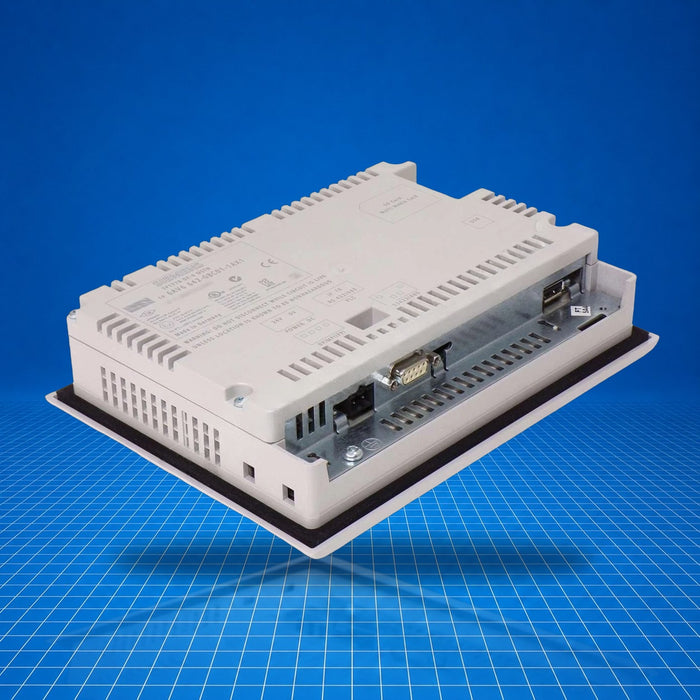

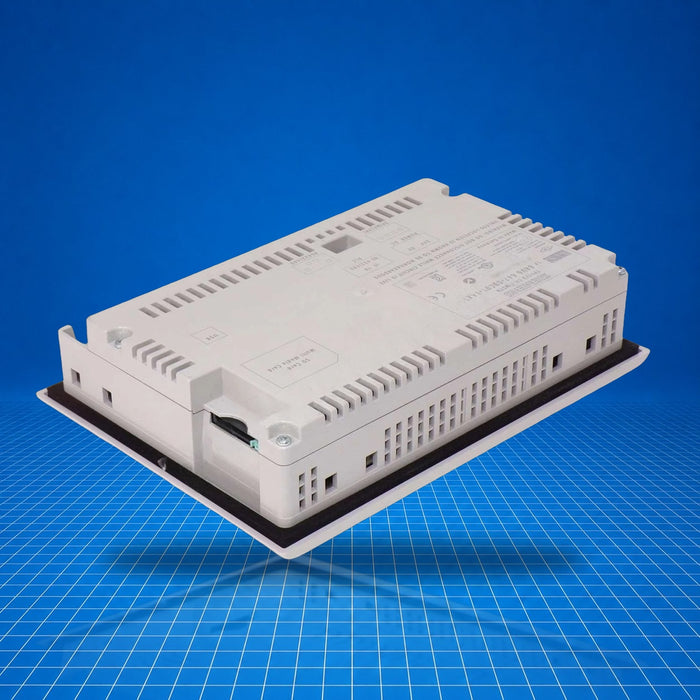

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
6AV6642-0BC01-1AX1 Siemens
Original price
$1,031.25
-
Original price
$5,149.49
Original price
$1,031.25
$1,031.25
-
$5,149.49
Current price
$1,031.25
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens 6AV6642-0BC01-1AX1 is a SIMATIC TP 177B DP operator panel featuring a 5.7-inch monochrome STN display (blue-mode) with resistive touchscreen input. Configured via WinCC flexible 2005, the panel communicates over MPI or PROFIBUS DP and includes RS-422/RS-485 and USB interfaces, plus a printer port and MMC slot. As of October 1, 2023, the part is discontinued, though spare part support continues through 2028. 6AV6642-0BC01-1AX1 is a legacy interface solution for mid-tier automation systems.
Best Suited For
- Replacement in existing S7-300 automation cells using TP 177B panels
- Applications where monochrome display is acceptable and cost-sensitive
- Systems requiring PROFIBUS DP or MPI operator interfaces
- Environments with existing WinCC flexible 2005 projects
Display type
STN blue-mode monochrome
Screen size
5.7 in 320×240 px
Touch input
Analog resistive touchscreen
Communication
MPI/PROFIBUS DP, RS-422/485, USB
Memory
2 MB user data Flash-RAM
Technical Specifications
I/O & Electrical
Input voltage
24 V DC
Current consumption
0.24 A
Communication & Power
Interfaces
MPI / PROFIBUS DP, RS-422, RS-485, USB, printer port
Physical & Environmental
Screen size & resolution
5.7 in, 320×240 px
Mounting
Vertical, cut-out 229×196 mm, depth 45 mm
Dimensions (front)
243×212 mm (W×H)
Weight
1 kg
Backlight MTBF
50 000 h at 25 °C
Certifications
ULEU declaration of conformityChina RoHSRCMKC
