6AV6642-0DA01-1AX1 Siemens

Original price $2,131.50 - Original price $8,580.00
Original price
$2,131.50
$2,131.50 - $8,580.00
Current price $2,131.50
Surplus - Tested (With Warranty)
Need a Specific Revision?
$2,131.50
3 in stock
New / Open-Box Surplus
Need a Specific Revision?
$8,580.00
2 in stock
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (3) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Siemens distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

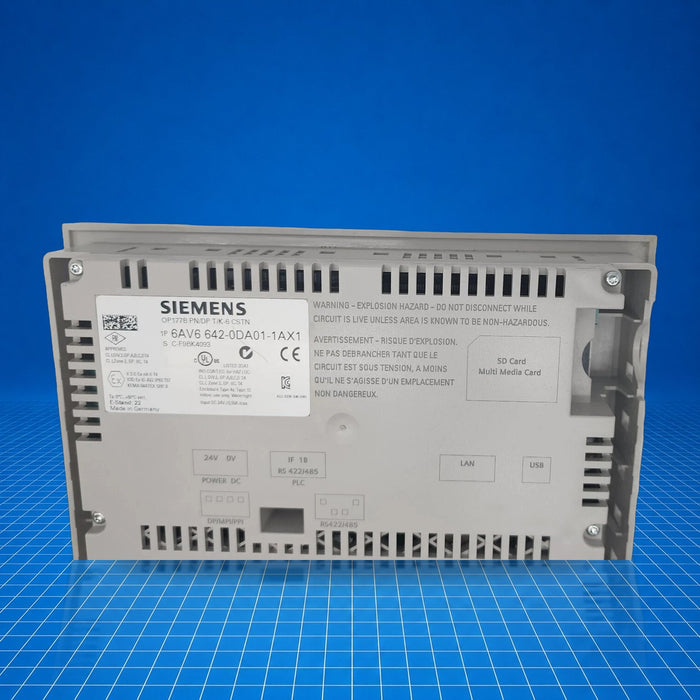

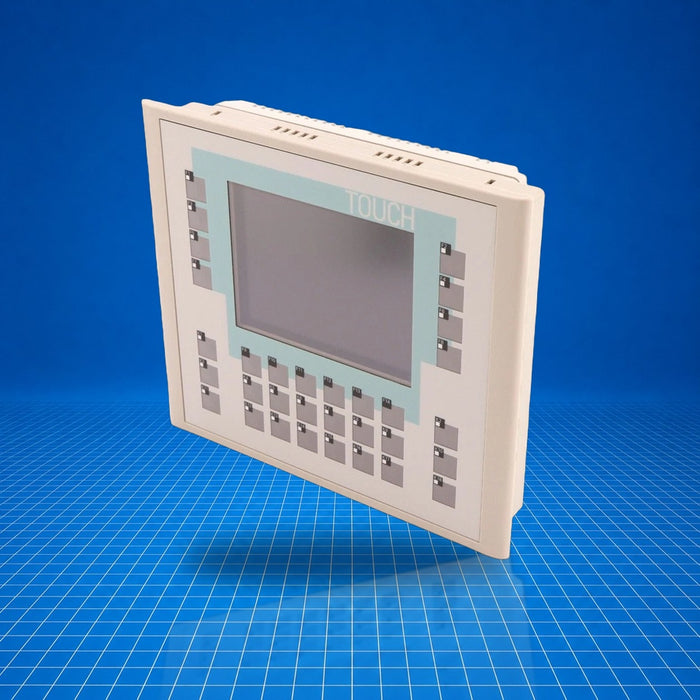

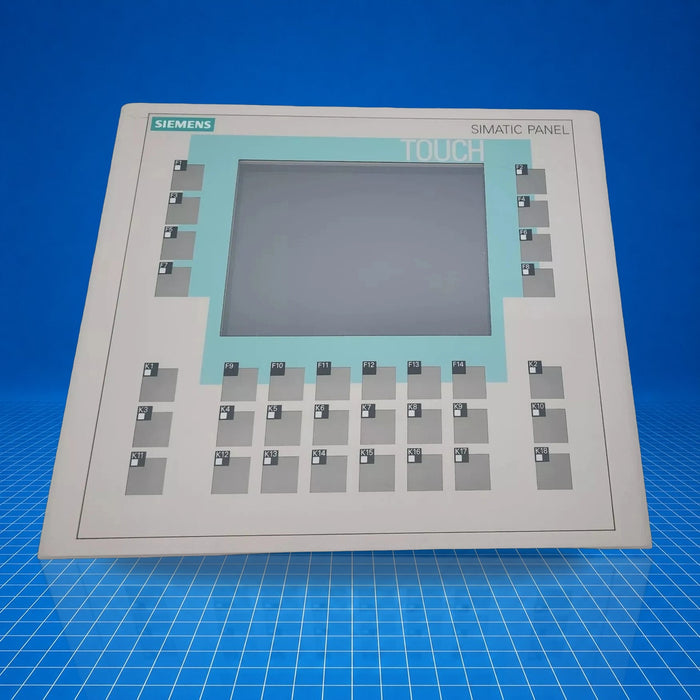

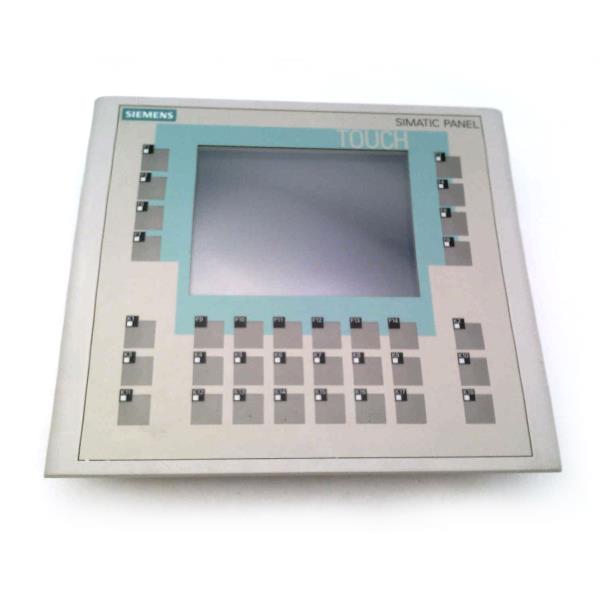

The Siemens 6AV6642-0DA01-1AX1 is a SIMATIC OP 177B 6-inch PN/DP operator panel in the Comfort-Panel (NT-VSF) series. It provides an STN 256-color display with touch and membrane key input, and supports MPI, PROFIBUS DP, Ethernet, RS-422/485, USB, and printer interfaces. Used for human-machine interaction, it displays process values, alarms, trends, and graphic objects via WinCC flexible configuration. Suitable for machine-level control, retrofit systems, and spare-part replacement in industrial automation.

Best Suited For

  • Operator interaction in legacy SIMATIC S5/S7 and non-Siemens systems
  • Spare part replacement for discontinued OP 177B panels
  • Integration in PROFIBUS DP or PROFINET networks
  • On-machine mounting in protective environments
  • Alarm and trend visualization in process control
Display
5.7 in STN, 320 × 240, 256 colors
Interfaces
MPI, PROFIBUS DP, Ethernet, RS-422, RS-485, USB, printer
Memory
2 048 kbyte user data (Flash/RAM)
Supply current
0.24 A DC

Technical Specifications

I/O & Electrical

Supply current (rated)
0.24 A
Inrush I²t
0.5 A²·s

Communication & Power

Interfaces
MPI, PROFIBUS DP, RS-422, RS-485, Ethernet (10/100), USB, printer
Processor
ARM, 200 MHz
Memory (user)
2 048 kbyte (Flash/RAM)

Physical & Environmental

Display resolution
320 × 240 pixels
Touch/key input
Analog resistive touch + membrane keyboard (32 function keys, numeric, alphanumeric, hexadecimal)
MTBF backlight
50 000 h (at 25 °C)
Protection front/rear
IP65 / IP20; NEMA 4x, 12 (front)
Operating temp
0 °C … 50 °C
Storage temp
-20 °C … 60 °C
Humidity (op.)
max. 90 %
Dimensions (front)
243 mm × 212 mm
Mounting cut-out
229 mm × 196 mm
Depth
45 mm
Weight
1 kg

Certifications

CEULcULusFM Class I Division 2ABSDNVGLBV
