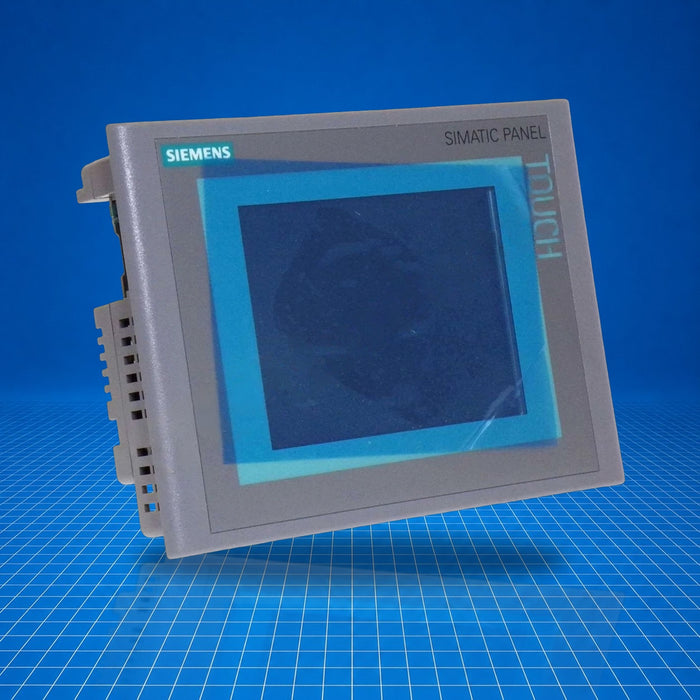

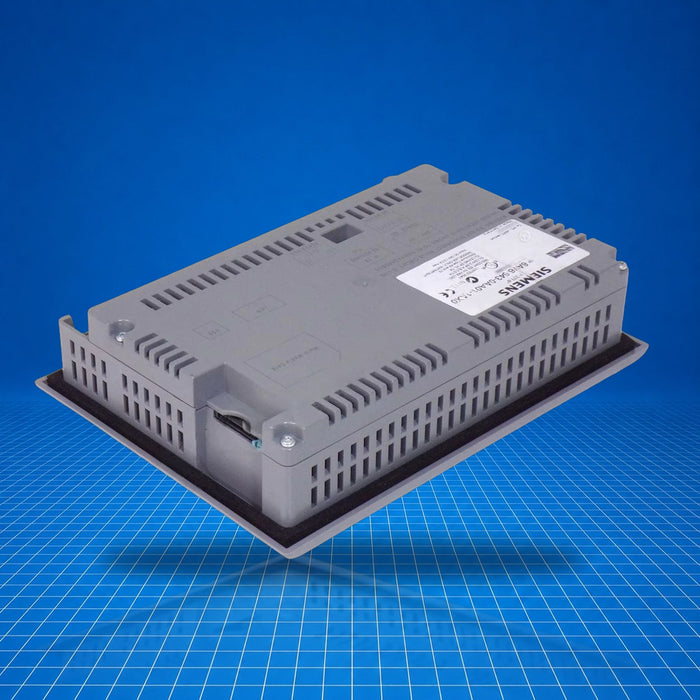

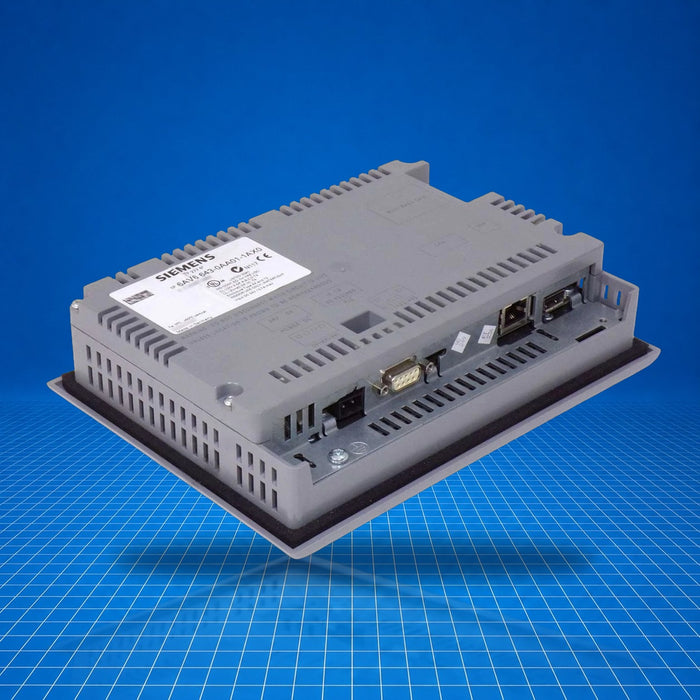

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
6AV6643-0AA01-1AX0 Siemens
Original price
$916.66
-
Original price
$10,906.50
Original price
$916.66
$916.66
-
$10,906.50
Current price
$916.66
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens part number 6AV6643-0AA01-1AX0 is a SIMATIC TP 277 6" Comfort-Panel (NT-VSF family). It provides a human-machine interface via a 5.7-inch TFT touch display, configurable using WinCC flexible. In a control system, it offers operator interaction and diagnostics, typically deployed in machine-level control, visualization of process status, recipe management, or OEM equipment HMI applications. The panel supports communications with a range of PLC systems including Siemens S7 and various third-party protocols.
Best Suited For
- Operator interface on mid-tier automation lines
- Recipe entry and process monitoring
- Legacy S7-200/S7-300/400 machine control HMI
- Multi-protocol environments (e.g., Modbus, Mitsubishi)
- Use in spare-parts replacement until October 1, 2026
Display
5.7 in TFT touch
User memory
4 Mbyte
Comm interfaces
Ethernet, RS-422, RS-485, USB
Memory card slot
MMC up to 128 MB
Lifecycle status
Spare-part until 01 Oct 2026
Technical Specifications
I/O & Electrical
Power supply
DC (Siemens unspecified range)
Communication & Power
Industrial interfaces
1× Ethernet (RJ45), 1× RS-422, 1× RS-485, 1× USB
Protocols supported
PROFINET IO, MPI, PPI, PROFIBUS DP, Modbus, DF1, DF-485, Mitsubishi FX/MP4, OMRON LINK, GE-Fanuc SNP
Physical & Environmental
Screen resolution
320 × 240 pixel
Display colors
256
Backlight MTBF
60 000 h at 25 °C
Dimensions (W×H×depth)
212 × 156 × 45 mm (front W × H × mounting depth)
Weight
0.78 kg
Certifications
EU conformityRCMFMATEXABSDNV
