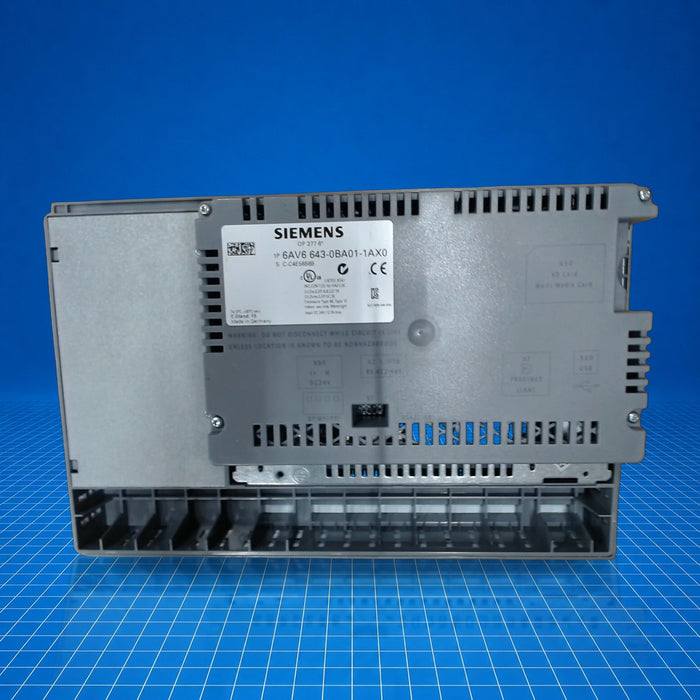

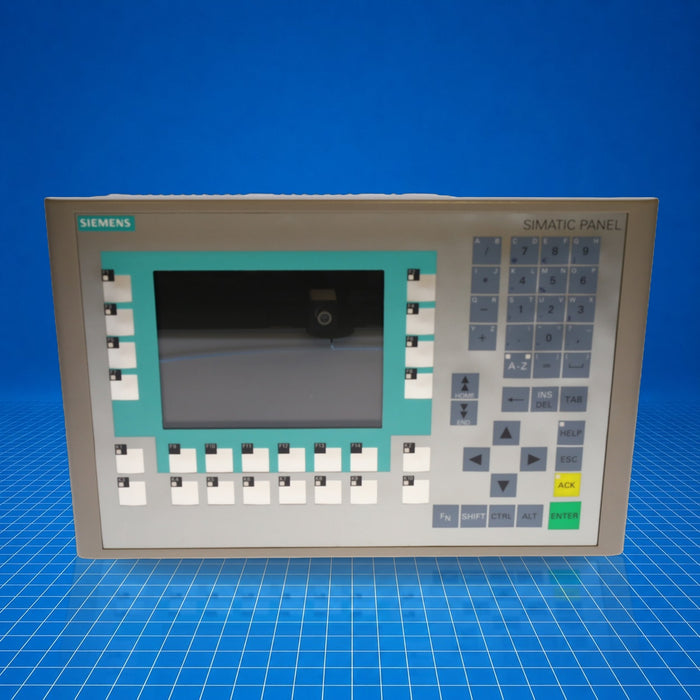

6AV6643-0BA01-1AX0 Siemens
Original price
$1,373.73
-
Original price
$14,521.55
Original price
$1,373.73
$1,373.73
-
$14,521.55
Current price
$1,373.73
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens part 6AV6643-0BA01-1AX0 is a SIMATIC OP 277 operator panel featuring a 5.7-inch (6″ nominal) TFT color display with 320 × 240 pixel resolution, part of the OP/HMI family for machine visualization and operation. It serves as a user interface in control systems, configured via WinCC flexible 2005 SP1, and commonly used for machine-level monitoring, operator control, and alarm messaging in industrial automation environments. This part is provided as a spare and integrates into existing SIMATIC HMI systems where required.
Best Suited For
- Machine-level visualization and operator control
- Operator interface in control cabinets
- Alarm and message display in S7-based systems
- Spare part replacement in OP 277 (Comfort-Panel) installations
Display
5.7 in TFT, 256 colors, 320 × 240 pixel
User memory
4 Mbyte Flash (configuration memory)
Interfaces
RS 422, RS 485, Ethernet (RJ45), USB, MMC slot
Front/Rear protection
IP65 / IP20
Operating temp. range
0 °C to 50 °C
Technical Specifications
I/O & Electrical
Input voltage
DC (not specified exact range)
Communication & Power
Interfaces
1× RS 422, 1× RS 485, 1× Ethernet (RJ45), 1× USB
Multimedia card slot
MMC slot, up to 128 MB
Backlight MTBF
60 000 h at 25 °C
Physical & Environmental
Dimensions (front WxH)
308 mm × 204 mm
Mounting depth
59 mm
Weight
1.19 kg
Protection rating
IP65 (front) / IP20 (rear)
Operating temperature
0 °C to 50 °C
Storage temperature
-20 °C to 60 °C
Relative humidity, max.
80 %
Certifications
CEUL
