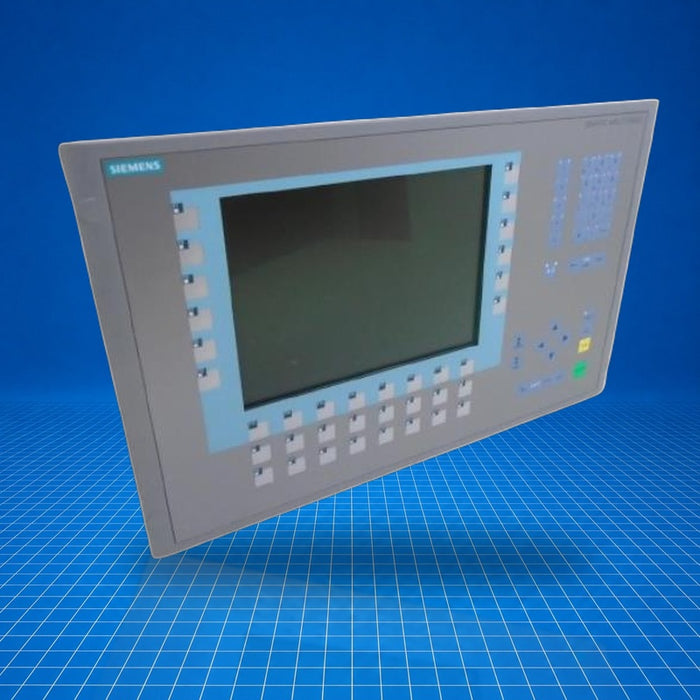

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
6AV6643-0DD01-1AX0 Siemens
Original price
$0.00
-
Original price
$1,500.00
Original price
$1,500.00
$0.00
-
$1,500.00
Current price
$1,500.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens 6AV6643-0DD01-1AX0 is a SIMATIC MP 277 10" Key operator panel from the Comfort-Panel family. It functions as an HMI (Human-Machine Interface) to display process data, receive operator input via keypad, and enable configuration through WinCC Flexible or WinCC (TIA Portal). Typically deployed in machine-level control systems for monitoring, operator control, and local data entry in industrial environments.
Best Suited For
- 10-inch panel-mounted machine interfaces
- Applications requiring keypad input rather than touch
- Integration with SIMATIC controllers via PROFIBUS, Ethernet, RS-422/485
- Environments needing standard HMI features with flash/RAM memory
Display resolution
640 × 480 pixels
Screen diagonal
10.4 in
Function keys
36 (28 with LEDs)
Interfaces
Ethernet, RS-422, RS-485, USB, MMC slot
Front degree of protection
IP65
Technical Specifications
I/O & Electrical
Memory available for user data
6 Mbyte
Main memory, max.
64 Mbyte
Communication & Power
Interfaces
1× RS 422, 1× RS 485, 1× Ethernet (RJ45), 2× USB, 1× MultiMediaCard slot
Supported protocols
PROFINET IO, PROFIBUS, TCP/IP, MODBUS
Physical & Environmental
MTBF backlighting (25 °C)
50 000 h
Ambient temperature, operation
0 °C … 50 °C
Ambient temperature, storage
-20 °C … 60 °C
Relative humidity, operation max.
90 %
Weight (without packaging)
4.95 kg
Mounting depth
60 mm
Protection rating
Front: IP65; Rear: IP20
Certifications
CEULcULusFM Div 2
CE, UL, cULus; FM Class I Division 2 approval; Not suitable for ATEX Zones (no longer certified as of 01 October 2020) per Siemens documentation.
