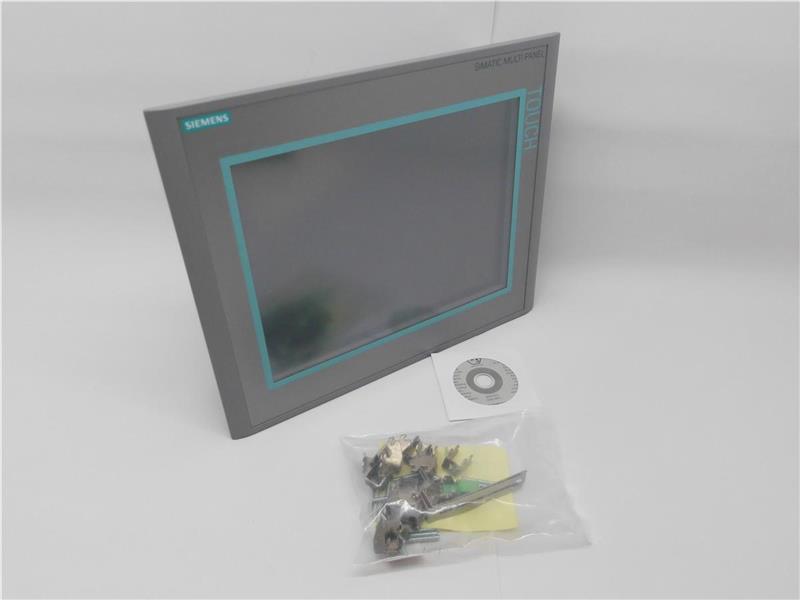

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
6AV6644-0AA01-2AX0 Siemens
Original price
$1,179.72
-
Original price
$4,760.00
Original price
$1,179.72
$1,179.72
-
$4,760.00
Current price
$1,179.72
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens SIMATIC MP 377 12" Touch Multi Panel (6AV6644-0AA01-2AX0) is a Windows CE 5.0-based human-machine interface from the MP 377 family, designed for operator interaction in industrial control systems. Configurable via WinCC Flexible 2007, it features a 12.1-inch color TFT touch display, integrates into SIMATIC and heterogeneous networks (e.g., S7, Modbus, Allen-Bradley), and serves in applications such as machine operation panels, process monitoring and control stations, or legacy system upgrades. 6AV6644-0AA01-2AX0 continues to be available as a sparepart despite being blocked for new delivery.
Best Suited For
- On-machine operator interface for S7-300/S7-400 systems
- Retrofit projects using WinCC Flexible 2007
- Multi-protocol factory networks (Modbus, Ethernet/IP)
- Environments requiring IP65 front-side protection
Display size
12.1 in
Resolution
800 × 600 px
Memory (user)
12 288 kbyte
Front protection
IP65
Technical Specifications
I/O & Electrical
Input current
1.5 A
Active power input, typical
36 W
Communication & Power
Interfaces
2× Ethernet (RJ45), 1× RS-422, 1× RS-485, 2× USB
Controller protocols
S5, S7-200, S7-300/400, TI 505, Win AC, PC (TCP/IP), SINUMERIK, SIMOTION, Allen-Bradley DF1/DF485, Mitsubishi FX, OMRON LINK/Multilink, Modicon Modbus, non-Siemens drivers
Physical & Environmental
Dimensions (front)
335 mm × 275 mm
Mounting cutout
310 mm × 248 mm
Mounting depth
72 mm
Weight (without packaging)
3.8 kg
Ambient temp (operation)
0 °C to 50 °C
Ambient temp (storage)
-20 °C to 60 °C
Relative humidity, max (operation)
90 %
Protection rating
Front IP65, Rear IP20, NEMA 4/12 front
Certifications
CEULcULusFM Class I Division 2
