6AV6644-0BA01-2AX1 Siemens

Name: 6AV6644-0BA01-2AX1 Siemens
Brand: Siemens
SKU: 6AV6644-0BA01-2AX1
Price: 5685.0 USD
Availability: InStock

$0.00 - $5,685.00

$5,685.00

$0.00 - $5,685.00

$5,685.00

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (11) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Siemens distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

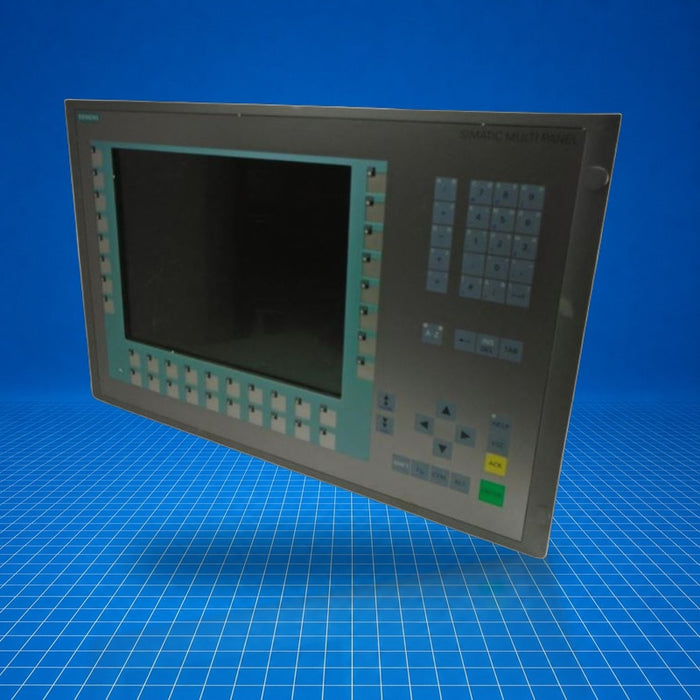

The Siemens SIMATIC MP 377 12" Key (6AV6644-0BA01-2AX1) is a Comfort-Panel HMI with keypad interface, part of the MP 377 series running Windows CE 5.0. Configured via WinCC flexible, it provides user interaction through a 12-inch color TFT display and integral keys. Used in industrial control systems, this panel serves on-machine status display, batch control entry, and operator navigation tasks. As a spare-only model, MP 377 12" Key (6AV6644-0BA01-2AX1) is maintained through exchange supply (P.M490) to October 1, 2028.

Best Suited For

Panel-level operator control with keypad input
Batch or recipe entry in production lines
On-machine human-machine interface in industrial cabinets
Legacy MP 377 panel replacement under Siemens spare-only program

Display size

12 in TFT color

User memory

12 288 kbyte

Input current

1.5 A DC

Protection front/rear

IP65 / IP20

Ethernet ports

2 (RJ45)

Technical Specifications

I/O & Electrical

Supply voltage type

DC

Input current (rated)

1.5 A DC

Power consumption

36 W typ.

Communication & Power

Ethernet interfaces

2 (RJ45)

RS-422 interfaces

1

RS-485 interfaces

1

USB ports

USB for mouse/keyboard/barcode reader

Memory type

Flash / RAM, user data 12 288 kbyte

Physical & Environmental

Display resolution

800 × 600 pixel

Colors

65 536

Backlight MTBF (25 °C)

50 000 h

Operating temp

0 °C … 50 °C

Storage temp

-20 °C … 60 °C

Relative humidity (operational max)

90 %

Protection front / rear

IP65 / IP20

Panel cutout (W × H)

367 mm × 289 mm

Front housing (W × H)

400 mm × 310 mm

Depth

72 mm

Weight

4.7 kg

Certifications

CEULcULusFM Class I Division 2
