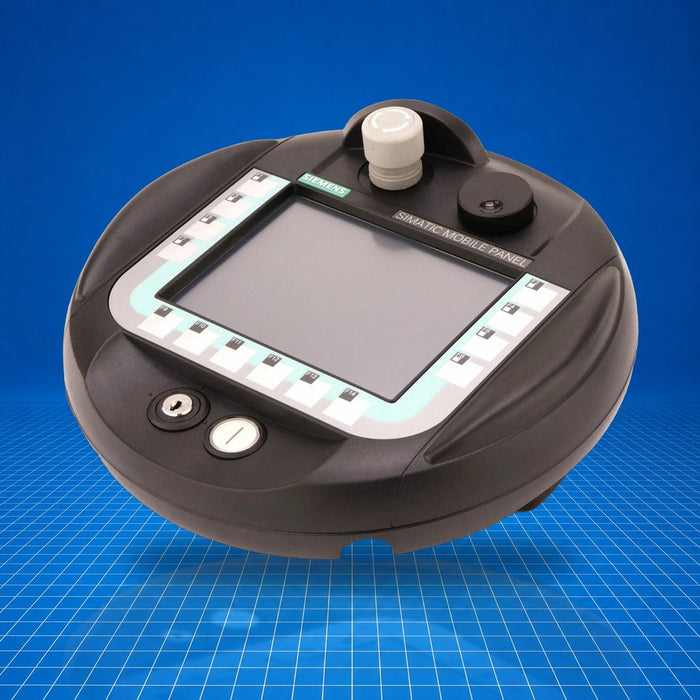

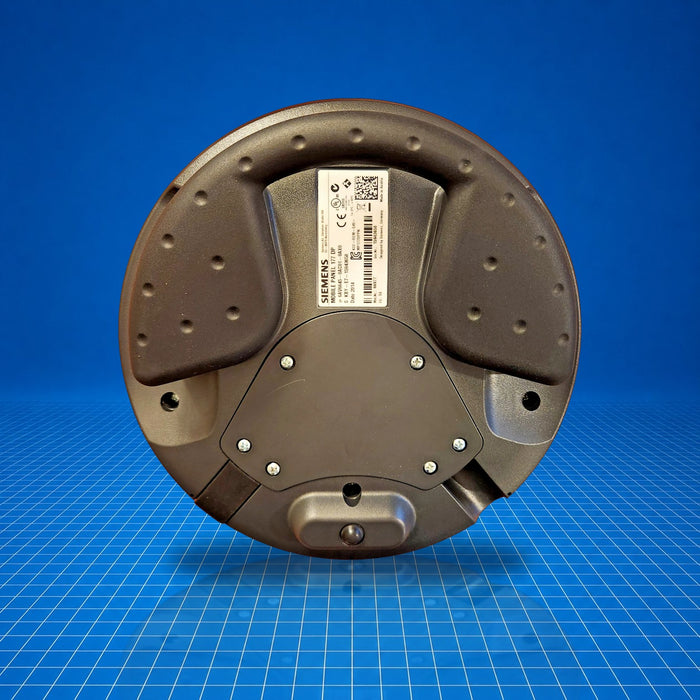

6AV6645-0AC01-0AX0 Siemens

Name: 6AV6645-0AC01-0AX0 Siemens
Brand: Siemens
SKU: 6AV6645-0AC01-0AX0
Price: 5011.89 USD
Availability: InStock

$5,011.89 - $9,750.00

$5,011.89

$5,011.89 - $9,750.00

$5,011.89

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (2) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Siemens distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

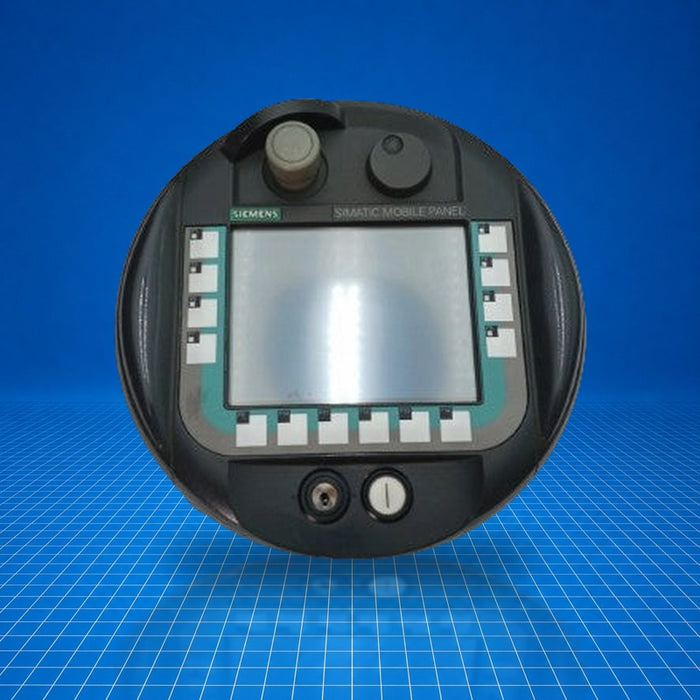

The Siemens 6AV6645-0AC01-0AX0 is a SIMATIC Mobile Panel 177 DP operator panel. It provides a compact human-machine interface (HMI) featuring a 5.7-inch STN color display with 320 × 240 pixel resolution and 256-color support. Designed for deployment in industrial control systems, it enables operator interaction via keys, analog resistive touchscreen, and dedicated control elements including stop, acknowledgement buttons, a handwheel, illuminated pushbutton, and a keyswitch. It is configured using WinCC flexible Compact (from 2005) or TIA Portal V11-V14. 6AV6645-0AC01-0AX0 works as an HMI in applications such as mobile diagnostics panels or machine operator control devices.

Best Suited For

Mobile diagnostic operator panel
On-machine operator interface
S7-300/400 or S7-200 system control
Field service or mobile control applications

Display

5.7 in STN, 320 × 240 px, 256 colors

User interface

Keys + resistive touch + handwheel

Memory for user data

2048 kbyte Flash/RAM

Interfaces

1× RS-422, 1× RS-485

Technical Specifications

I/O & Electrical

Supply voltage

DC via connection box (e.g. 24 V DC)

Memory available for user data

2048 kbyte

Communication & Power

Interfaces

1× RS-422; 1× RS-485 (max 12 Mbit/s)

Bus protocols

PROFIBUS; MODBUS; various S5, S7-200/300/400, SINUMERIK, SIMOTION, DF1, DF485, FX, LINK/Multilink, Modbus, GE-Fanuc SNP

Physical & Environmental

Operating temperature

0 °C to 40 °C

Storage/transport temperature

-20 °C to 60 °C

Relative humidity (operation)

max 80 %

Backlight MTBF

50 000 h at 25 °C

Weight

1.3 kg

Certifications

CEcULusRCM (C-TICK)

Certified CE, cULus, RCM (C-TICK), SIBE; suitable for safety functions up to Performance Level d (ISO 13849-1).
