6AV6647-0AD11-3AX0 Siemens

Original price $756.25 - Original price $1,475.15
Original price
$756.25
$756.25 - $1,475.15
Current price $756.25
Surplus - Tested (With Warranty)
Need a Specific Revision?
$756.25
4 in stock
New / Open-Box Surplus
Need a Specific Revision?
$1,475.15
2 in stock
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (4) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Siemens distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

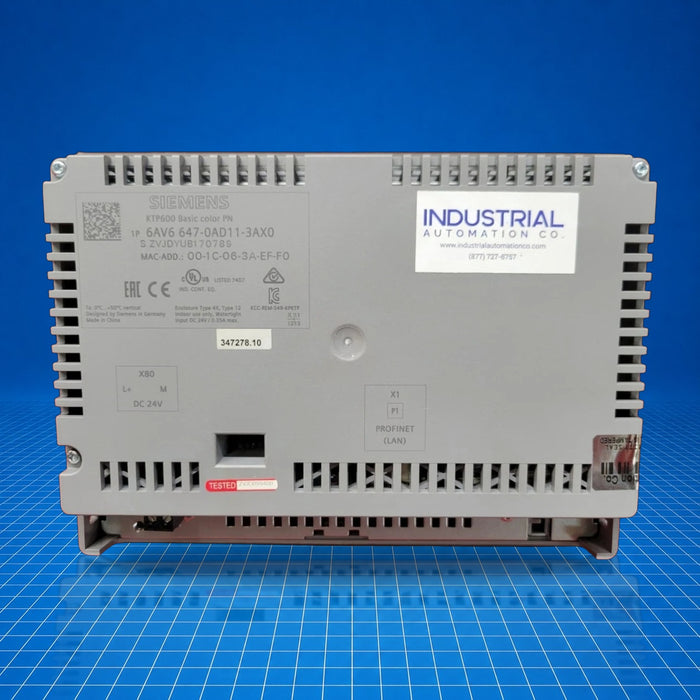

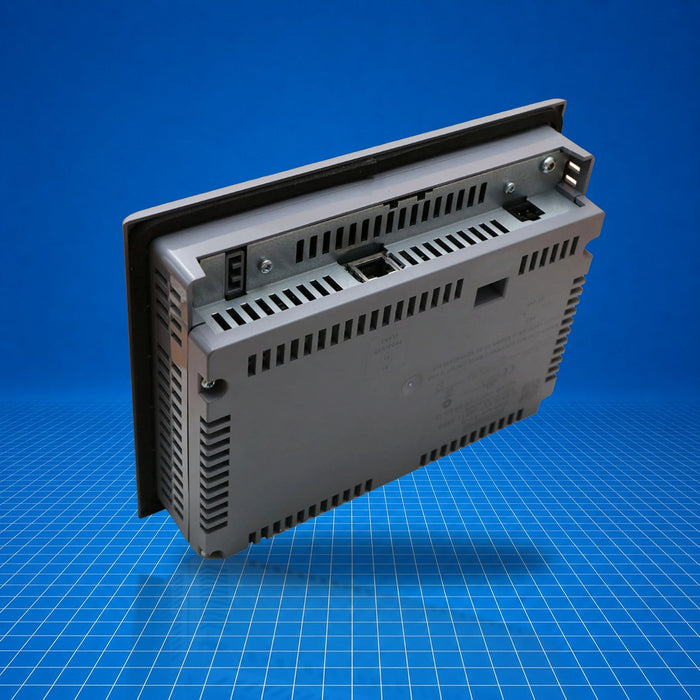

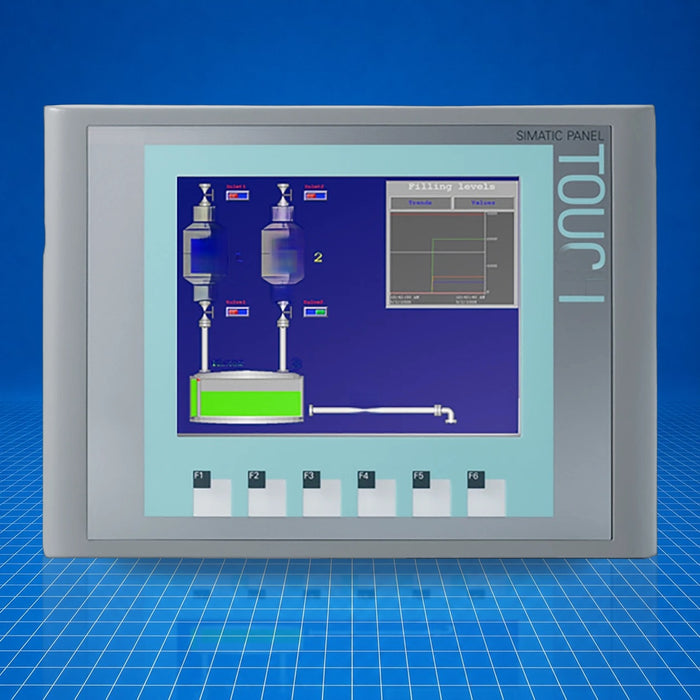

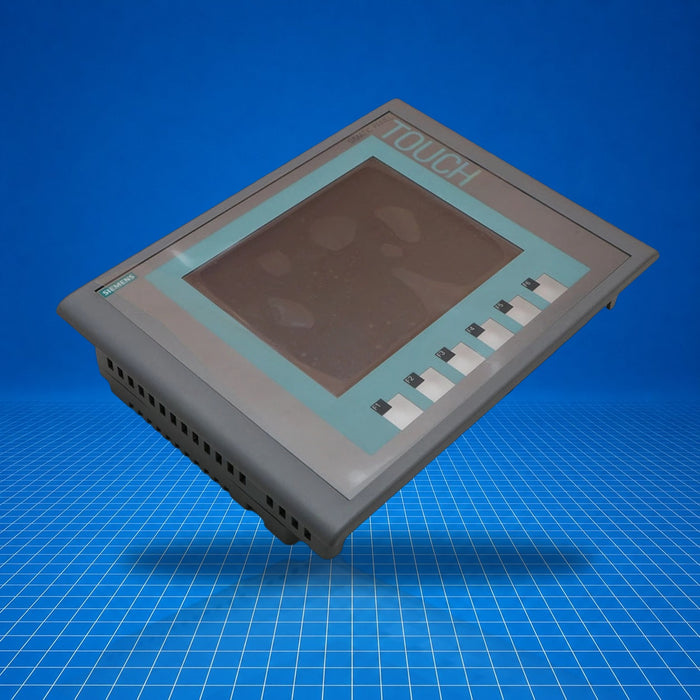

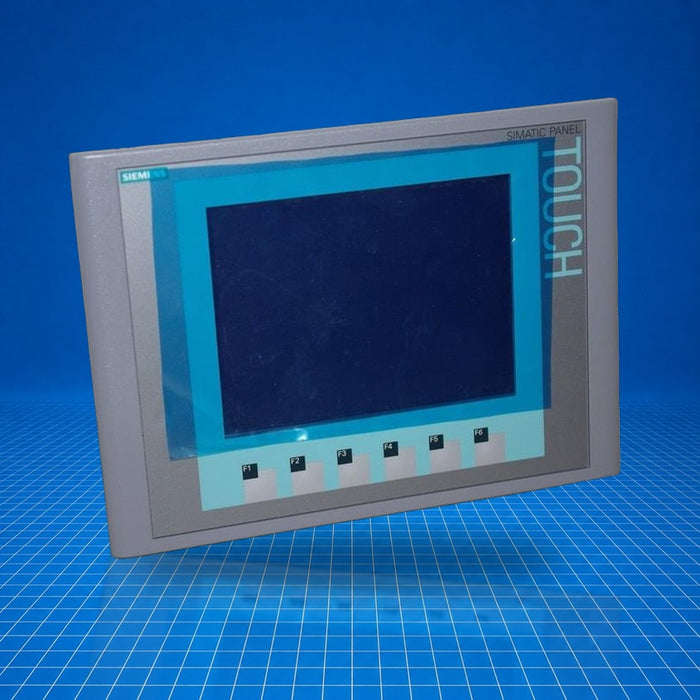

The Siemens SIMATIC HMI KTP600 Basic Color PN (part number 6AV6647-0AD11-3AX0) is a 6-inch color HMI panel within the KTP Basic series. It integrates keyed and touch operation and connects via PROFINET. Its role in control systems is as a localized operator interface for visualization and interaction with PLCs, supporting image display, alarm handling, trend views, and recipes. Typical applications include machine supervision, production station control, and operator panel integration in S7-based systems.

Best Suited For

  • Integration with S7-1200 and S7-1500 PLCs
  • Panel-level operator control in machinery
  • PROFINET field-level human-machine interface
  • Compact systems requiring color display with keypad
  • On-machine local visualization and control
Display
6 inch color TFT
Resolution
240 × 320 pixel
Power supply
24 V DC
User memory
1 Mbyte

Technical Specifications

I/O & Electrical

Power supply
24 V DC (19.2 V - 28.8 V)
Current consumption
0.9 A
Power consumption
9 W

Communication & Power

Industrial Ethernet interfaces
1 (PROFINET)
Protocols - PROFINET
Yes
EtherNet/IP
Yes (via protocol support)
MODBUS TCP/IP
Yes

Physical & Environmental

Display colors
256 colors
Screen size (diagonal)
5.7 in / 6 in nominal
Backlighting MTBF
50 000 h
Backlight dimmable
No
Mounting cutout W×H
197 mm × 141 mm
Front dimensions W×H
214 mm × 158 mm
Mounting depth
44 mm
Weight
0.54 kg (1.19 lb)
Protection front/rear
IP65 / IP20
Operation temperature (vertical)
0 °C - 50 °C
Storage temperature
-20 °C - 60 °C
Relative humidity
≤ 90 %, no condensation

Certifications

CEcULusRCMKCABSDNVPRSRMRS
