6AV6647-0AE11-3AX0 Siemens
Original price
$3,300.31
-
Original price
$3,865.75
Original price
$3,300.31
$3,300.31
-
$3,865.75
Current price
$3,300.31
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

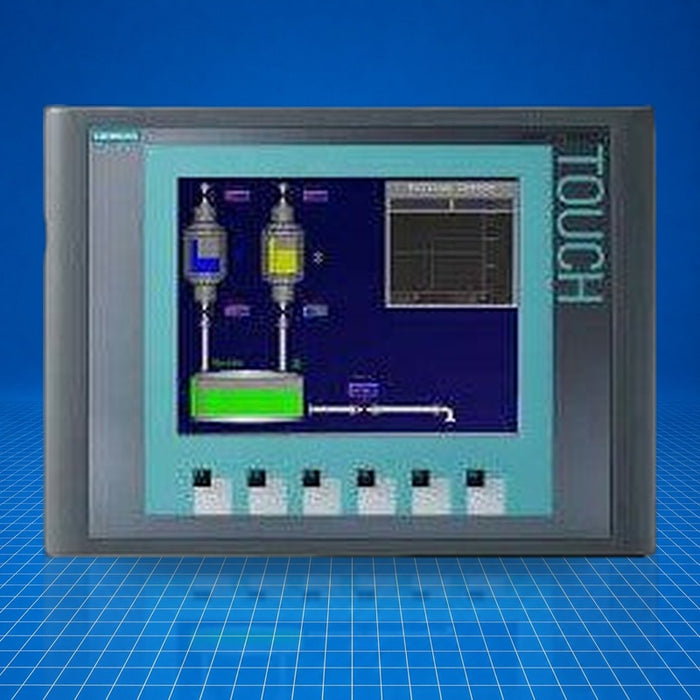

SIMATIC HMI KTP1000 Basic Color DP (6AV6647-0AE11-3AX0) is a human-machine interface from Siemens Basic Panels family, providing key-and-touch operation via a 10.4-inch TFT color display. It interfaces over MPI and PROFIBUS DP to SIMATIC S7-200, S7-300 or S7-400 controllers. Suitable for machine-level operator panels in industrial automation environments requiring local control and status visualization of compact systems.
Best Suited For
- Operator control and monitoring of compact machines
- Integration with SIMATIC S7-200/S7-300/S7-400 via MPI or PROFIBUS DP
- Spare part replacement in existing Basic Panel installations
- Cost-sensitive display applications requiring 256-color TFT visuals
Display
10.4 in TFT, 256 colors (640×480)
Interfaces
MPI / PROFIBUS DP
Supply voltage
24 V DC (19.2-28.8 V)
Current consumption
0.6 A (rated)
Power input
15 W typ.
Technical Specifications
I/O & Electrical
Supply voltage (DC)
24 V (19.2 V to 28.8 V)
Current consumption
0.6 A (rated)
Inrush current I²t
0.2 A²·s
Power consumption
15 W (typ.)
Communication & Power
Interfaces
MPI, PROFIBUS DP
Processor type
RISC 32-bit
Physical & Environmental
Display size
10.4 in (211.2 mm × 158.4 mm)
Resolution
640 × 480 pixels
Colors
256
Mounting orientation
Landscape only, vertical mounting
Backlight MTBF
50 000 h
Touch technology
Analog-resistive
Mounting angle
Up to 35° without external ventilation
Certifications
RoHSWEEEREACH
RoHS, WEEE, REACH compliant; Lead content >0.1 % (candidate list), EAR99 export classification
