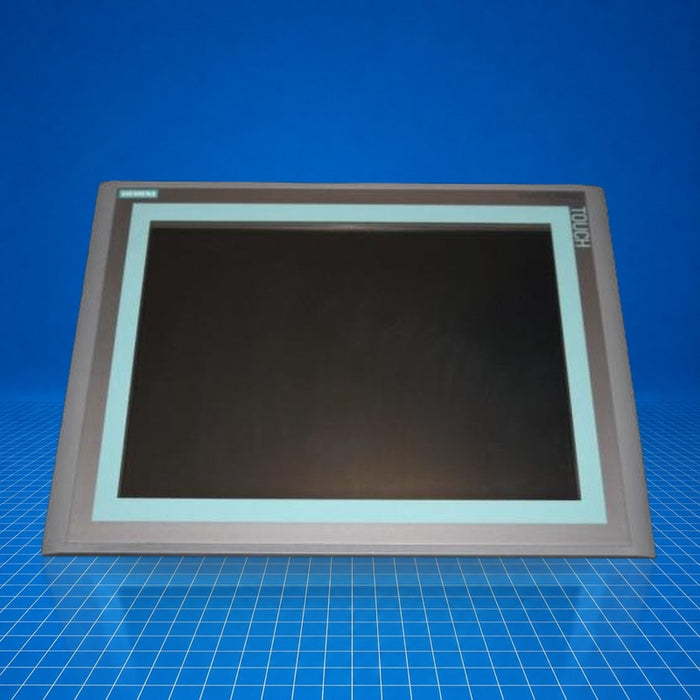

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
6AV6647-0AG11-3AX0 Siemens
Original price
$0.00
-
Original price
$4,200.00
Original price
$4,200.00
$0.00
-
$4,200.00
Current price
$4,200.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens 6AV6647-0AG11-3AX0 is a SIMATIC HMI TP1500 Basic Color PN panel, part of the TP Basic series. It serves as a human-machine interface in control systems, offering direct touch operation through a 15" TFT display. This device integrates into PROFINET networks and is configured via WinCC Flexible 2008 SP2 Compact, WinCC Basic V10.5, or STEP 7 Basic V10.5. Widely used in machinery and production line applications, the part number 6AV6647-0AG11-3AX0 provides a visual interface for status monitoring, operator input, and localized control.
Best Suited For
- Standalone machine operator panels
- Integration into PROFINET-based control networks
- Mid-scale industrial automation interface
- Replacements in TP1500 Basic series installations
Display size
15 in.
Resolution
1024 × 768 pixel
Interfaces
PROFINET, Ethernet
Power supply
24 V DC
Protection class
IP65
Technical Specifications
I/O & Electrical
Power supply
24 V DC
Input voltage range
19.2 V to 28.8 V DC
Power consumption
32 W
Current ratings
not specified
Communication & Power
Interfaces
PROFINET, Ethernet
Physical & Environmental
Display size
15 in.
Resolution
1024 × 768 pixel
Color depth
256 colors
MTBF backlighting
50,000 h
Touch operation
Yes; analog-resistive
Mounting position
Vertical
Operating temperature
0 to 50 °C
Protection class
IP65 (front)
Weight
≈ 2.15 kg (4.75 lbs)
Dimensions (W×H×D)
400 mm × 310 mm × 60 mm
