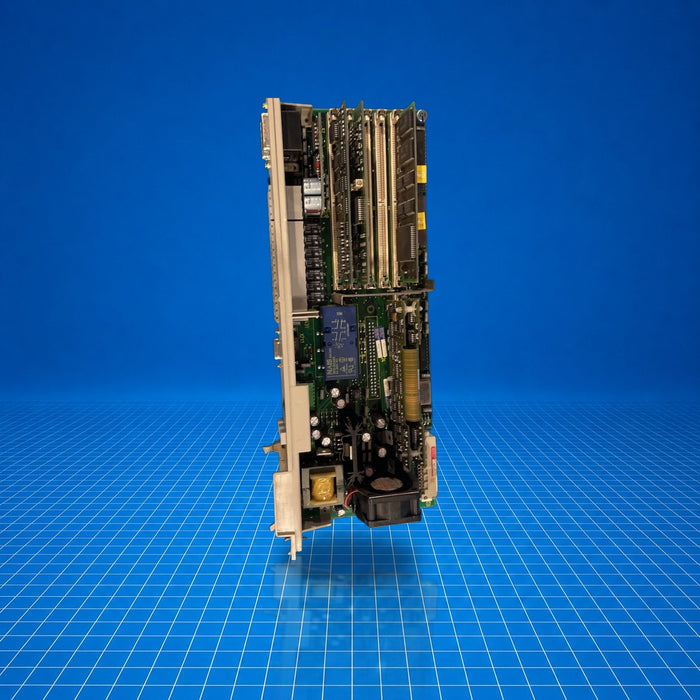

6DD1607-0AA0 Siemens
Original price
$1,237.47
-
Original price
$3,850.00
Original price
$1,237.47
$1,237.47
-
$3,850.00
Current price
$1,237.47
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens 6DD1607-0AA0 is an FM 458 application module in the SIMATIC SIMADYN D series, designed to provide eight digital input channels for S7-400 control systems. It serves as a modular input interface, receiving and processing status signals within industrial automation architectures. Typical use cases include machine control panels, process monitoring, and integration into distributed I/O systems where precise digital input handling is required. 6DD1607-0AA0 supports acknowledgment of diagnostic messages and interfaces with SIMADYN D or S7 hardware environments.
Best Suited For
- Extension of SIMATIC S7-400 I/O systems
- Integration into SIMADYN D modular automation setups
- On-machine digital signal acquisition
- Systems requiring diagnostic acknowledgment per channel
Digital inputs
8 channels
Input voltage range
-1 V to +33 V
Nominal voltage
24 V
Max delay time per channel
100 µs
Typical 1-signal current
3 mA
Technical Specifications
I/O & Electrical
Number of digital inputs
8
Electrical isolation
No
Input voltage permissible range
-1 V to +33 V
Nominal input voltage
24 V
Input voltage threshold for 0 signal
-1 V to +6 V
Input voltage threshold for 1 signal
+13.5 V to +33 V
Input current, typ. for 0 signal
0 mA
Input current, typ. for 1 signal
3 mA
Delay time per channel, max
100 µs
Communication & Power
Rated voltage (module)
+5 V
Typical current drain at +5 V
1.8 A
Typical current drain at 3.4 V battery
10 µA
Physical & Environmental
Slots required
1
Dimensions (W × H × D)
25 mm × 290 mm × 210 mm
Weight
0.92 kg
