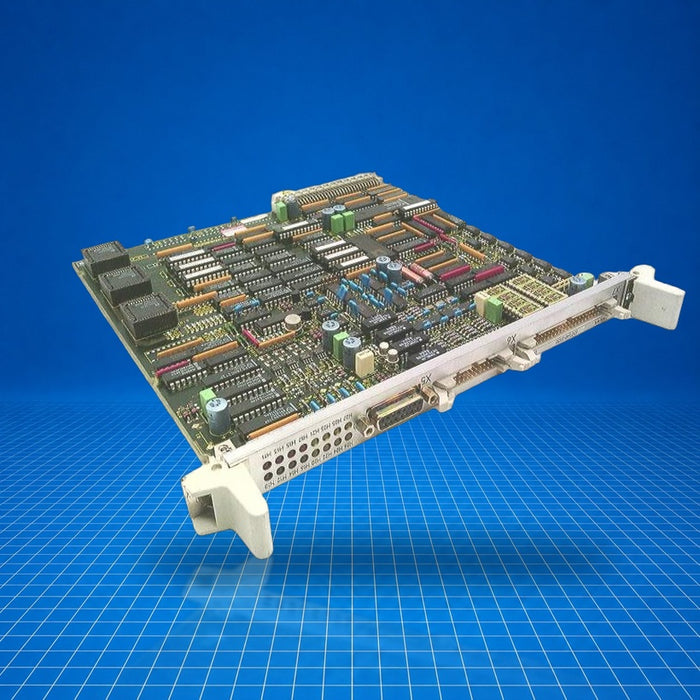

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
6DD1640-0AD0 Siemens
Original price
$4,414.05
-
Original price
$7,297.50
Original price
$4,414.05
$4,414.05
-
$7,297.50
Current price
$4,414.05
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens 6DD1640-0AD0 is a SIMATIC TDC SM500 analog signal module. It provides eight analog output channels and eight differential analog input channels, integrating into multiprocessor TDC control systems. In automation architectures, it enables signal interfacing between control logic and analog devices-such as valves, drives, and sensors-and supports real-time analog I/O handling in industrial process or motion control environments. 6DD1640-0AD0 supports precise voltage output and input handling for control and monitoring.
Best Suited For
- Analog signal interfacing in SIMATIC TDC systems
- Converting control logic to voltage-based actuation
- Reading differential analog sensor signals
- Use in motion control and process automation modules
Analog outputs
8 channels
Analog inputs
8 differential channels
Output voltage range
-10 V to +10 V
Input voltage range
-10 V to +10 V
Resolution (I/O)
12-bit
Technical Specifications
I/O & Electrical
Analog outputs - quantity
8
Output voltage range
-10 V to +10 V
Output current
± 10 mA
Resolution (outputs)
12 bit
Analog inputs - quantity
8
Input voltage range
-10 V to +10 V
Input resolution
12 bit
Input resistance
20 kΩ
Input filter
34 kHz
