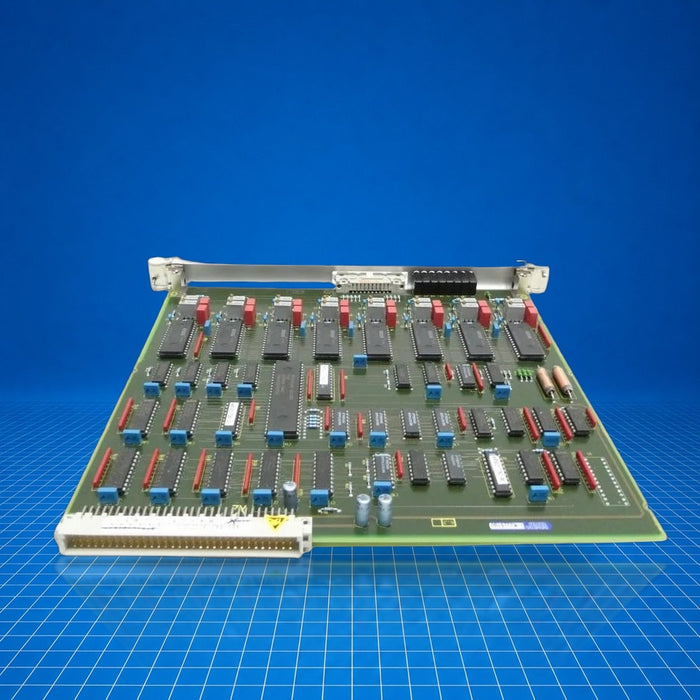

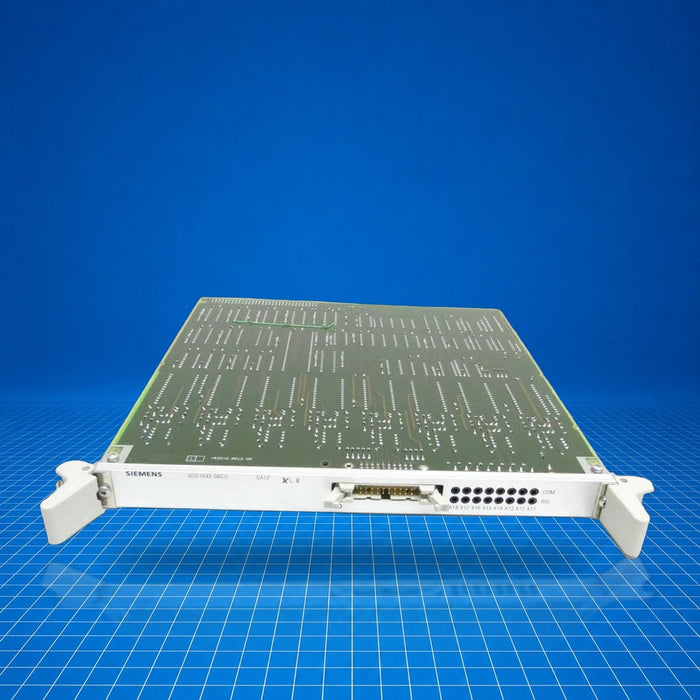

6DD1642-0BC0 Siemens
Original price
$1,175.63
-
Original price
$1,312.50
Original price
$1,312.50
$1,175.63
-
$1,312.50
Current price
$1,312.50
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens module 6DD1642-0BC0 is an analog output I/O module within the SIMADYN D EA12 series. It provides eight analog outputs for signal generation within a distributed automation system, interfacing via a 20-pin connector and an L-bus. It includes front-panel test sockets for commissioning and allows offset and gain adjustment via potentiometers. It is typically used in process control and discrete automation systems where analog control signals must be distributed or regulated precisely.
Best Suited For
- SIMADYN D EA12 I/O racks
- Process control loops requiring analog output signals
- On-site calibration and commissioning via front test sockets
- Distributed control installations using L-bus communication
Analog outputs
8 channels
Connector type
20-pin connector
Test points
8 front-panel test socket pairs
Short-circuit capability
10 mA per channel for 2 min
Technical Specifications
I/O & Electrical
Number of outputs
8 analog outputs
Load capability
Up to 10 mA per output
Short-circuit proof duration
2 min
Communication & Power
Bus interface
L-bus
Physical & Environmental
Test access
2.3 mm test socket pairs on front for measuring devices
