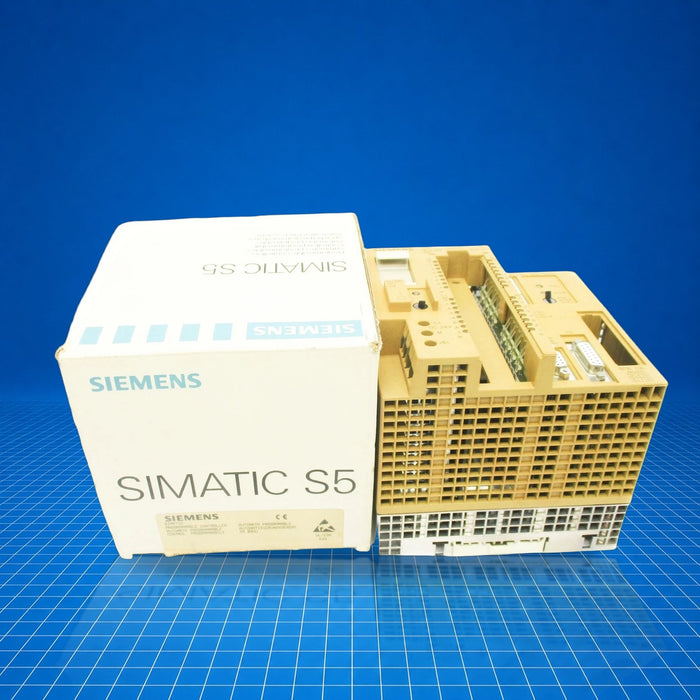

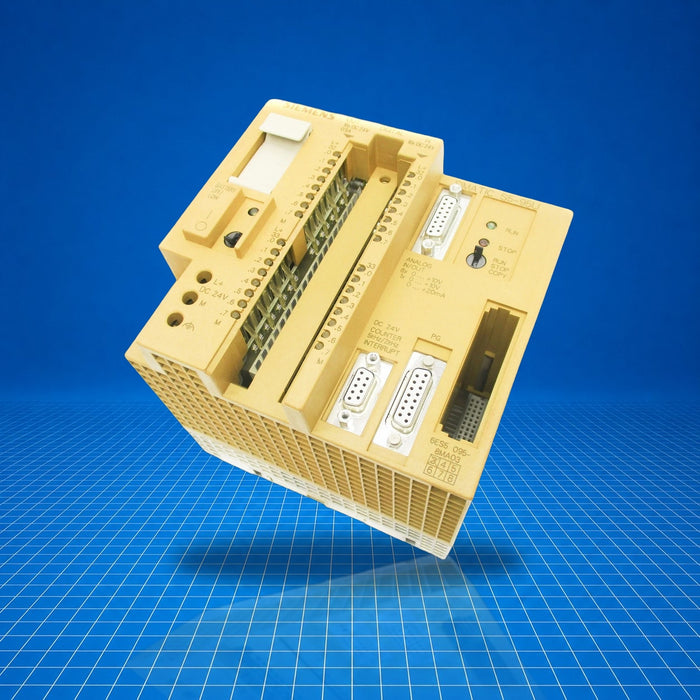

6ES5095-8MA03 Siemens
Original price
$540.00
-
Original price
$8,431.50
Original price
$540.00
$540.00
-
$8,431.50
Current price
$540.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

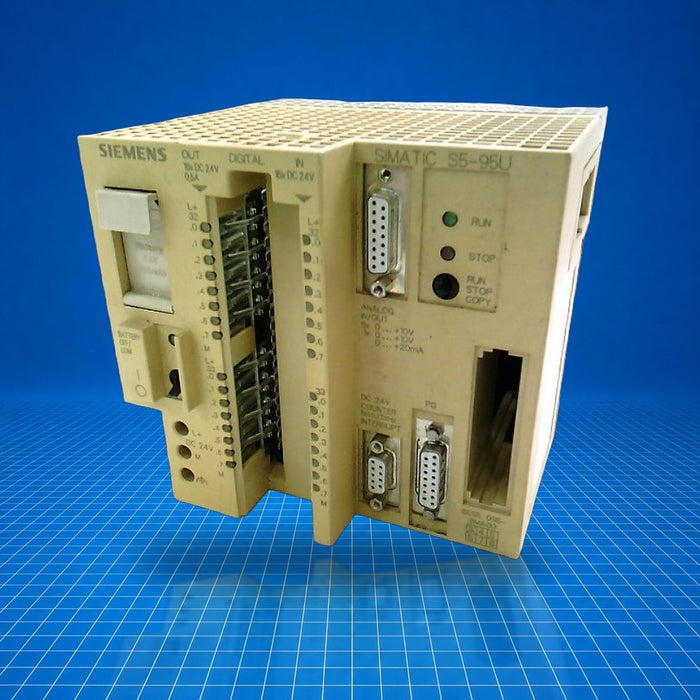

The Siemens part number 6ES5095-8MA03 is a SIMATIC S5-95U compact unit equipped with an integrated PROFIBUS-DP master interface. It is part of the S5 series of programmable controllers and functions as a bridge between S5-based control logic and PROFIBUS-DP networks. This module enables up to 16 DP slaves, each with bidirectional data exchange of up to 32 bytes, at baud rates from 9.6 kbaud to 1.5 Mbaud, and is employed in legacy industrial automation systems where PROFIBUS integration is required. 6ES5095-8MA03 is typically used in retrofit, maintenance, or existing SIMATIC S5 environments.
Best Suited For
- Legacy SIMATIC S5 automation systems needing PROFIBUS-DP connectivity
- Retrofit applications integrating S5 logic with PROFIBUS field devices
- Maintenance of discontinued S5-95U based control panels
- Small-scale DP master applications with limited data volume
DP-slave support
up to 16 slaves
Data per slave (I/O)
32 bytes input / 32 bytes output
Baud rate range
9.6 kbaud to 1.5 Mbaud
Memory module
32 K EEPROM slot
Technical Specifications
I/O & Electrical
DP slaves
up to 16
Input data per slave
32 bytes
Output data per slave
32 bytes
Communication & Power
Baud rate
9.6 kbaud to 1.5 Mbaud
Physical & Environmental
Memory module support
32 K EEPROM
