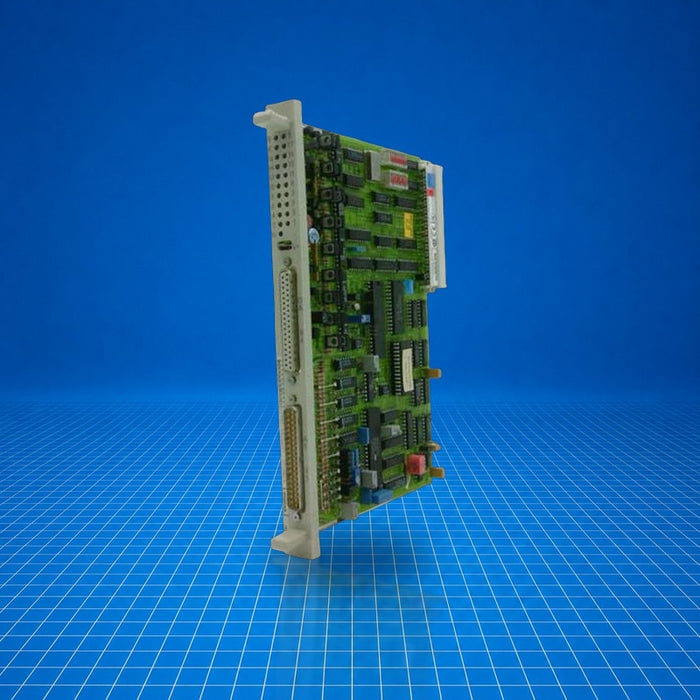

6ES5244-3AA22 Siemens
Original price
$0.00
-
Original price
$962.50
Original price
$962.50
$0.00
-
$962.50
Current price
$962.50
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 6ES5244-3AA22 is a SIMATIC S5/S7 interface module (IP244) that provides analog input functionality for temperature and voltage measurement within S5/S7-based automation systems. It supports thermocouple, resistance, transducer, and Pt100 sensor inputs, and includes a built-in comparator and digital output for threshold signaling. It enables integration of analog process signals into Siemens PLC systems, typically used in temperature control loops and monitoring applications. The 6ES5244-3AA22 is suited for industrial installations requiring analog input expansion.
Best Suited For
- Temperature measurement via thermocouples (types J, K, S, R, L)
- Resistance-based sensor inputs including Pt100
- Voltage-range transducer inputs (0-20.48 V)
- Analog signal integration in S5/S7 control environments
Analog input channels
15
Thermocouple support
Yes
Transducer voltage input
0-20.48 V
Built-in comparator output
Yes
Technical Specifications
I/O & Electrical
Analog input channels
15 (channels 0-14, plus channel 15 for Pt 100 reference)
Thermocouple ranges
Type L/J up to 700 °C, K to 1200 °C, S/R to 1600 °C
Auxiliary current for resistance measurement
2.56 mA
Input resistance
>10 MΩ (0-51.2 mV); >50 kΩ (0-20.48 V)
Comparator trigger output
24 V digital output when channel 13 ≥ threshold
