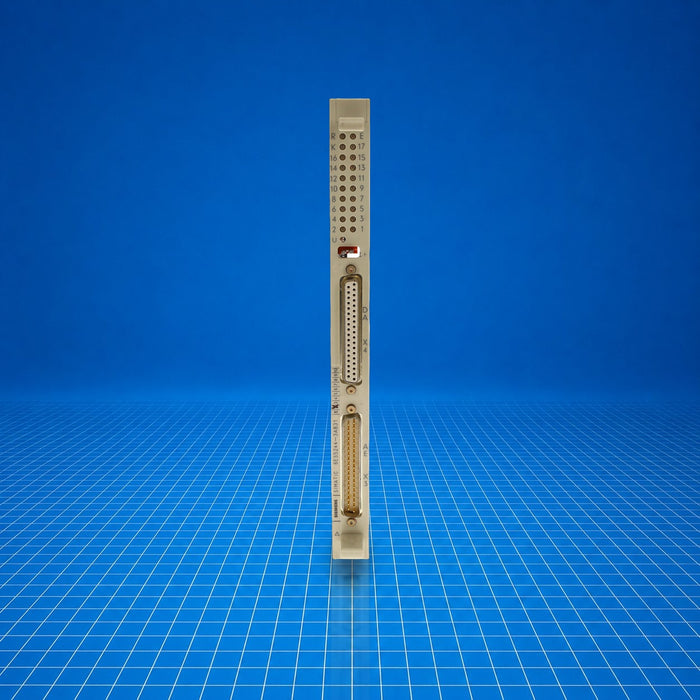

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
6ES5244-3AB31 Siemens
Original price
$2,452.50
-
Original price
$21,253.56
Original price
$2,452.50
$2,452.50
-
$21,253.56
Current price
$2,452.50
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
SIMATIC S5 IP 244 B module, part number 6ES5244-3AB31, is a Siemens analog input module used within the SIMATIC S5 automation platform. It converts thermal electromotive force (thermocouple) or Pt100 resistance-type signals into digital form for process temperature control and monitoring. Typically deployed in temperature regulation systems, furnaces, and industrial process loops where analog temperature feedback is integrated into a central S5 PLC rack.
Best Suited For
- Temperature measurement with thermocouples (with reference junction via channel 15)
- Pt100 resistance sensor measurement in 4-wire or 3-wire configuration
- Integration into SIMATIC S5 racks for analog temperature control
- Replacement or maintenance of existing S5 IP 244 B modules
Channels (analog)
Up to 16 channels (0-15)
Thermocouple input
Thermal e.m.f. via channel 15
Pt100 input
Pt 100 in 3- or 4-wire via channels 0-15
Sensor types supported
Thermocouple and Pt 100
Technical Specifications
I/O & Electrical
Input sensitivity (thermocouple)
51.2 mV (via 1:400 divider)
Input sensitivity (Pt 100, 4-wire)
512 mV (divider inactive)
