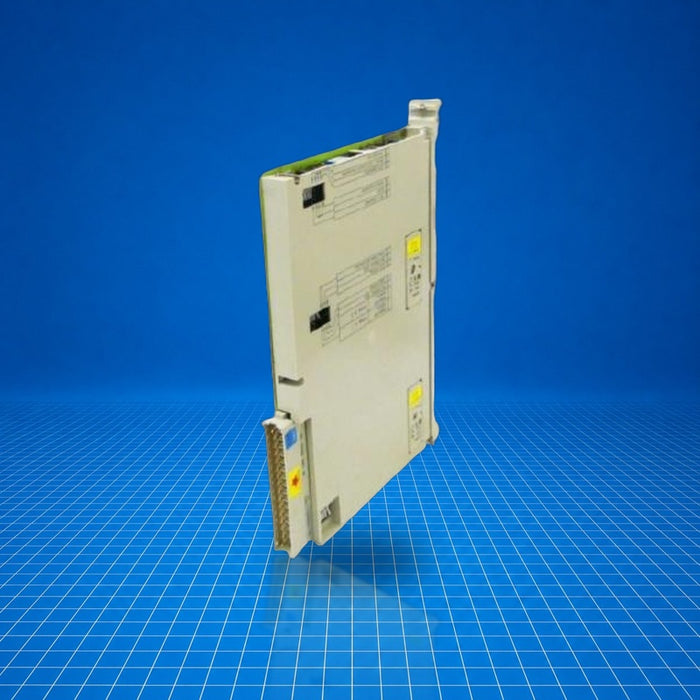

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
6ES5432-4UA11 Siemens
Original price
$303.75
-
Original price
$501.00
Original price
$303.75
$303.75
-
$501.00
Current price
$303.75
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 6ES5432-4UA11 is a Siemens SIMATIC S5 digital input module (32-channel) designed for use in S5-150 series systems within industrial control architectures. It accepts 24 V DC input signals across 32 input channels organized into four isolated groups of eight, enabling digital signal acquisition from field devices. It supports selectable input filtering and line length specifications, making it suitable for standard industrial automation applications including machinery logic control and monitoring within legacy S5 installations. 6ES5432-4UA11 is the designated Siemens part number.
Best Suited For
- SIMATIC S5-150 series expansion racks
- Retrofit or maintenance of legacy S5 control systems
- High-channel digital input acquisition in manufacturing processes
- Interfacing field sensors to central PLC logic
Number of inputs
32
Input groups (isolated)
4 × 8 channels
Nominal input voltage
24 V DC
Input current nominal
8.5 mA
Switching frequency max
1 kHz
Technical Specifications
I/O & Electrical
Nominal input voltage
24 V DC
Input current (nominal)
8.5 mA
Number of inputs
32
Isolation groups
4 groups of 8 inputs
Max switching frequency
100 Hz, 300 Hz, 1 kHz
Configurable input delay
3 ms, 1 ms, 0.3 ms
Typical input resistance
2.8 kΩ
Max unshielded cable length
600 m (3 ms), 200 m (1 ms), 50 m (0.3 ms)
