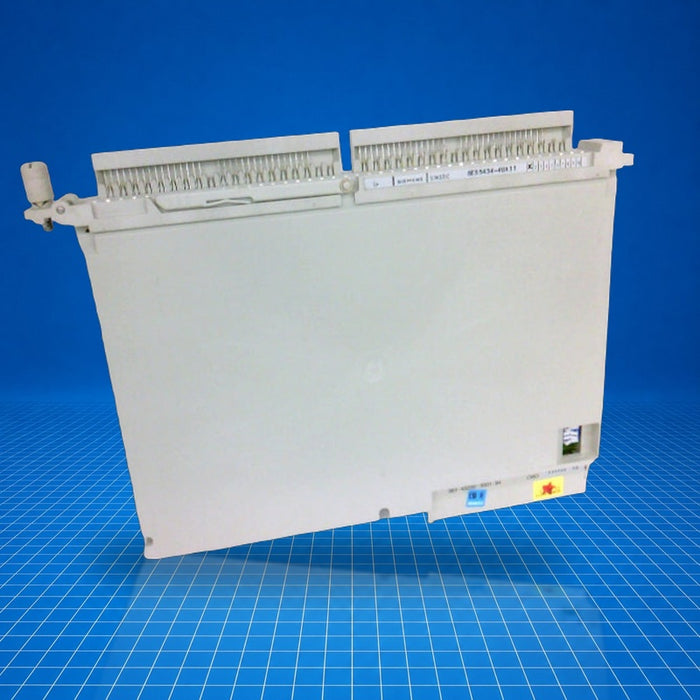

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
6ES5434-4UA11 Siemens
Original price
$0.00
-
Original price
$1,960.00
Original price
$1,960.00
$0.00
-
$1,960.00
Current price
$1,960.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
Module 6ES5434-4UA11 is a SIMATIC S5 series floating digital input module. It provides 32 discrete inputs with a single group potential isolation, accepting TTL, CMOS or NAMUR signals. Designed for integration into S5 I/O racks, it interfaces process field signals to the PLC. Typical applications include legacy S5 machine control systems, factory automation involving discrete signal acquisition, and migration support in automated production environments.
Best Suited For
- Legacy SIMATIC S5 I/O rack integration
- Floating digital signal acquisition (TTL/CMOS/NAMUR)
- Industrial discrete input interfacing
- S5-to-S7 migration compatibility use
Number of inputs
32
Input types
TTL / CMOS / NAMUR
Input voltage (LH+)
5-15 V DC (LH+) / 12-24 V DC (L+)
Max input frequency
100 Hz
Typical response time
3 ms
Technical Specifications
I/O & Electrical
Number of inputs
32
Input voltage (LH+)
5-15 V DC
Input voltage (L+, NAMUR)
12-24 V DC
Input levels (TTL)
0…0.8 V / 2.4…5.0 V
Input levels (CMOS)
0…0.3×LH+ / 0.7-1×LH+
Input current (NAMUR)
≤ 1.2 mA / ≥ 2.1 mA
Internal resistance
1 kΩ
Active line resistance max
50 Ω
Max input frequency
100 Hz
Physical & Environmental
Response time typical
3 ms (1.4-5 ms)
Simultaneity factor
100 %
Max unshielded line length (TTL/CMOS)
200 m
Max unshielded line length (NAMUR)
600 m
