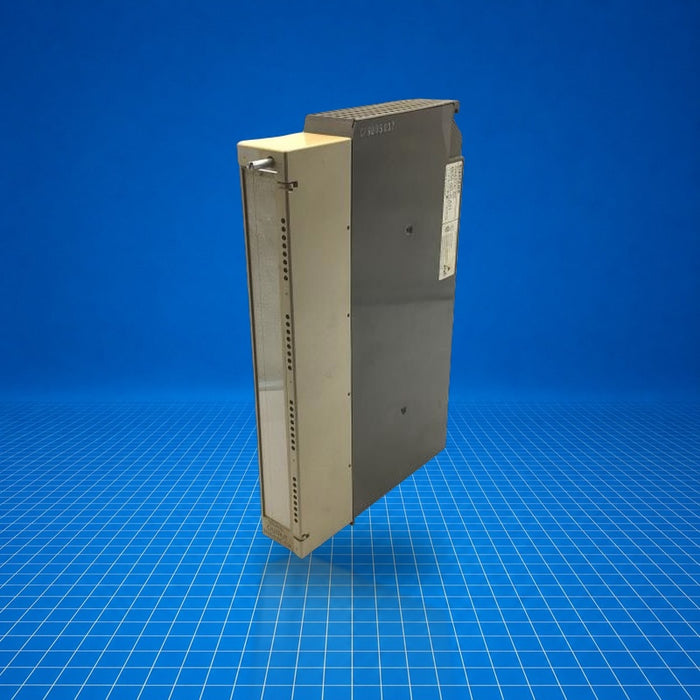

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
6ES5460-7LA12 Siemens
Original price
$819.50
-
Original price
$2,737.80
Original price
$819.50
$819.50
-
$2,737.80
Current price
$819.50
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The SIMATIC S5 module 6ES5-460-7LA12 is an analog input module for the S5-115 series PLC. It provides eight galvanically isolated input channels, converting process analog signals into digital values for CPU processing. It supports use with selectable range cards and is used where precise analog measurement (e.g., 0-10 V or 4-20 mA) is required in industrial control applications such as process monitoring, machine control, and signal acquisition. 6ES5-460-7LA12 is designed for S5-115U/F or H platforms.
Best Suited For
- S5-115U/F or S5-115H CPU analog signal acquisition
- Applications requiring galvanic isolation on each channel
- Environments measuring voltage or current with selectable ranges
- Upgrading or repairing legacy SIMATIC S5 control systems
Channels
8 (galvanically isolated)
Isolation voltage
max. 60 V AC / 75 V DC
Range cards
2 (plug-in range cards)
Overflow behavior
Channel-specific overflow; one channel overflow does not affect others
Technical Specifications
I/O & Electrical
Channels
8
Isolation voltage
60 V AC / 75 V DC
Range cards
2, front-plate plug-in
