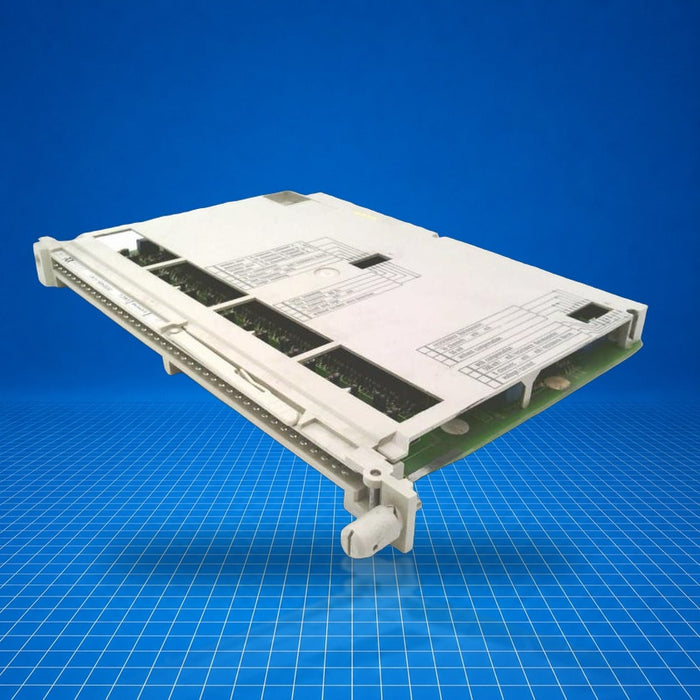

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
6ES5465-4UA11 Siemens
Original price
$389.85
-
Original price
$1,741.25
Original price
$389.85
$389.85
-
$1,741.25
Current price
$389.85
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens module 6ES5465-4UA11 is an analog input module from the SIMATIC S5 460/465 series. It provides eight non-floating analog input channels arranged as two range submodules, intended for converting millivolt and Pt100 sensor signals to digital values for the S5 control system. It integrates into S5 bus architecture and accepts external measurement modules for signal range selection, suitable for industrial process monitoring and data acquisition in legacy Siemens S5 automation systems. Part number 6ES5465-4UA11.
Best Suited For
- Integration in SIMATIC S5 460/465 backplanes
- Measurement of mV and Pt100 signals via range submodules
- Process signal conditioning in legacy Siemens automation environments
- Environments requiring channel-to-0 V and inter-channel non-floating inputs
Channels
8 non-floating analog inputs
Range selection
2 range sub-modules (4 channels each)
Input types
mV and Pt100 via submodules
Isolation
+1 V max between channels and to 0 V
Technical Specifications
I/O & Electrical
Number of inputs
8 analog inputs
Range submodules
2 (4 channels each)
Signal types
mV and Pt100 (via range submodules)
Isolation voltage
Max. 1 V between channels and to 0 V reference
