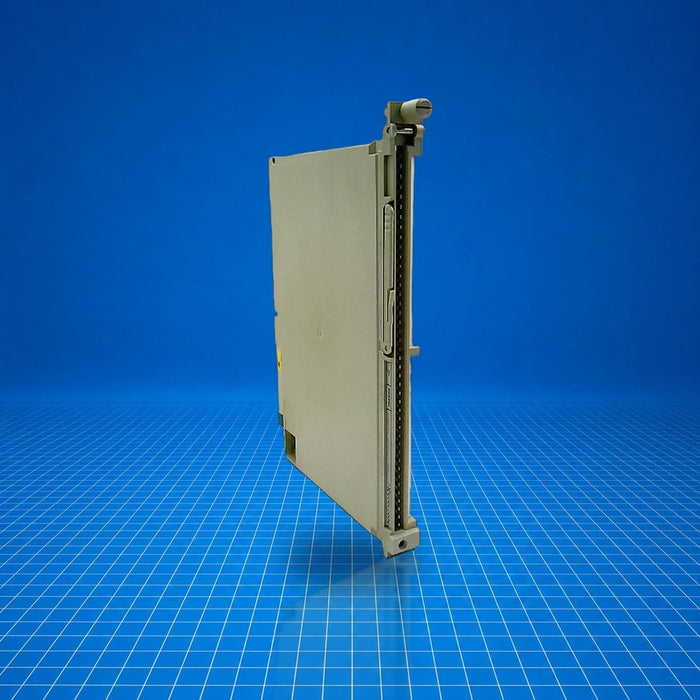

6ES5470-4UA12 Siemens
Original price
$389.97
-
Original price
$1,347.50
Original price
$389.97
$389.97
-
$1,347.50
Current price
$389.97
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens 6ES5470-4UA12 is an analog output module within the S5 system, providing 8 isolated channel outputs for both voltage and current signals. It interfaces process control logic to analog actuators or systems in industrial control setups, converting 12-bit digital values to ±10 V or 0-20 mA outputs. It supports signal scaling, tolerance to overload, and is designed for use in regulated control racks in OEM machinery, manufacturing lines, and process control environments. The module facilitates interfacing between S5 controllers and external analog hardware.
Best Suited For
- Analog actuation from S5 PLC systems
- Process control with voltage/current output requirements
- Legacy S5 installations requiring isolated multi-channel analog output
- Retrofitting or maintaining automation lines using Siemens S5 platforms
Outputs
8 channels (voltage and current)
Resolution
12 bit (two's complement)
Analog modes
±10 V, 0-20 mA
Isolation
Yes, per channel to external
Technical Specifications
I/O & Electrical
Number of outputs
8 voltage and current outputs
Rated output range
±10 V and 0-20 mA (parallel with ±1024 units)
Measured-value representation
12 bits (two's complement)
Linearity
±2 LSB = ±0.2 %
Permissible overdriving
Approx. 25 % (±1024 to ±1272 units)
Short-circuit current (voltage output)
Approx. 25 mA
No-load voltage (current output)
Max. 18 V
Output current (voltage output)
Max. 3 mA
Max. capacitive load
< 100 nF (incl. line capacity)
Load resistance, voltage output
≥ 3.3 kohms
Load resistance, current output
≤ 300 ohms
Delay time
≤ 1 ms
Temperature coefficient
1 × 10⁻⁴/K; ±0.3 V at max output voltage
Permissible voltage drop on output lines
5-24 V
