6ES5470-4UB12 Siemens
Original price
$420.99
-
Original price
$1,347.50
Original price
$420.99
$420.99
-
$1,347.50
Current price
$420.99
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

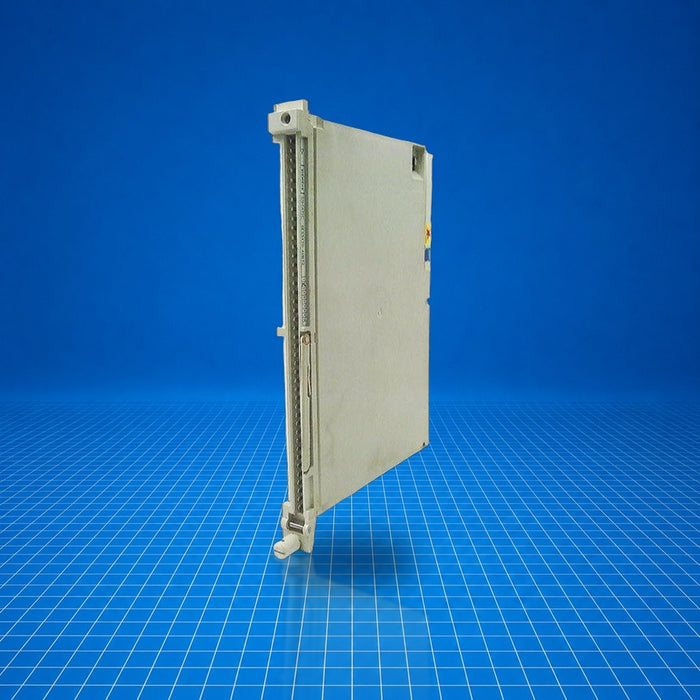

The 6ES5470-4UB12 is an analog output module from the Siemens SIMATIC S5-470 series, designed for industrial automation systems. It provides eight combined voltage/current outputs for generating analog control signals. Typically used in process control, machine automation, or factory production systems, it interfaces with PLCs to convert digital values into precise analog outputs for valves, actuators, and control loops. 6ES5470-4UB12 integrates into the S5 rack/platform and supports both voltage and current output modes.
Best Suited For
- Process automation requiring multi-channel analog outputs
- Machine control systems with hybrid voltage/current signal needs
- Retrofit or maintenance of SIMATIC S5 series systems
- Analog signal generation for actuators and control loops
Outputs
8 voltage and current outputs
Resolution
12-bit
Output range
±10 V and 0-20 mA (voltage/current parallel)
Isolation
Electrical isolation for all outputs
Technical Specifications
I/O & Electrical
Number of outputs
8 voltage and current outputs
Output range
±10 V and 0-20 mA parallel
Resolution
12-bit (two's complement)
Short-circuit current (voltage mode)
Approx. 25 mA
No-load voltage (current mode)
Max. 18 V
Output current (voltage mode)
Max. 3 mA
Load resistance: voltage output
≥ 3.3 kΩ
Load resistance: current output
≤ 300 Ω
Capacitive load
< 100 nF (incl. line capacitance)
Delay time
≤ 1 ms
Temperature coefficient
1×10⁻⁴/K
Linearity
±2 LSB = ±0.2%
Permissible overdriving
Approx. 25% (±1024 to ±1272 units)
