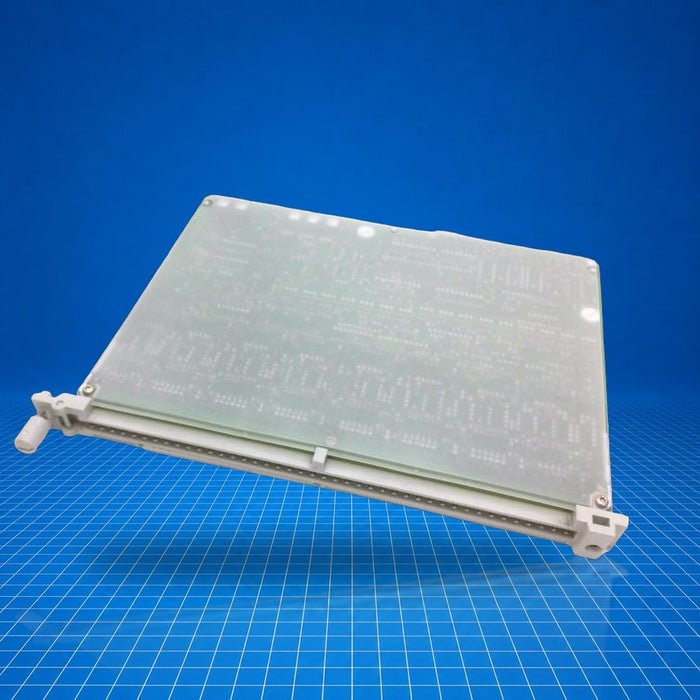

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
6ES5470-4UC12 Siemens
Original price
$567.00
-
Original price
$2,555.06
Original price
$567.00
$567.00
-
$2,555.06
Current price
$567.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 6ES5470-4UC12 is a SIMATIC S5-135U/155U series analog output module (module type 470-4UC12). It provides eight combined voltage/current outputs for signal generation in process and control systems. It transfers digital values to analog signals for actuators or control loops. Typically installed in industrial automation racks for process control and production machinery, the 6ES5470-4UC12 is used where simultaneous multiple analog outputs are required, such as valve positioning, analog drive control, or process feedback.
Best Suited For
- Expanding S5-135U/155U systems with analog output capability
- Generating ±1…5 V and 4…20 mA control signals
- Batch or continuous process control systems
- Upgrading legacy analog interfacing in older Siemens installations
Outputs
8 combined voltage/current
Resolution
12-bit
Output ranges
±1…5 V and 4…20 mA
Isolation
Yes, outputs isolated to Mext
Linearity error
±0.2 % (±2 LSB)
Technical Specifications
I/O & Electrical
Number of outputs
8 voltage and current outputs
Output voltage range
±1…5 V
Output current range
4…20 mA
Open-circuit and short-circuit protection
Yes
Output resolution
12-bit (two's complement)
Linearity error
±2 LSB = ±0.2 %
Permissible overdriving
Approx. 25 % (±1024 to ±1272 units)
Short-circuit current (voltage output)
Approx. 25 mA
No-load voltage (current output)
Max. 18 V
Max output current (voltage output)
Max. 3 mA
Capacitive load max
< 100 nF
Load resistance (voltage)
≥ 3.3 kΩ
Load resistance (current)
≤ 300 Ω
Delay time
≤ 1 ms
Temperature coefficient
1×10⁻⁴ /K
Voltage drop on voltage output lines
±0.3 V at max output voltage
