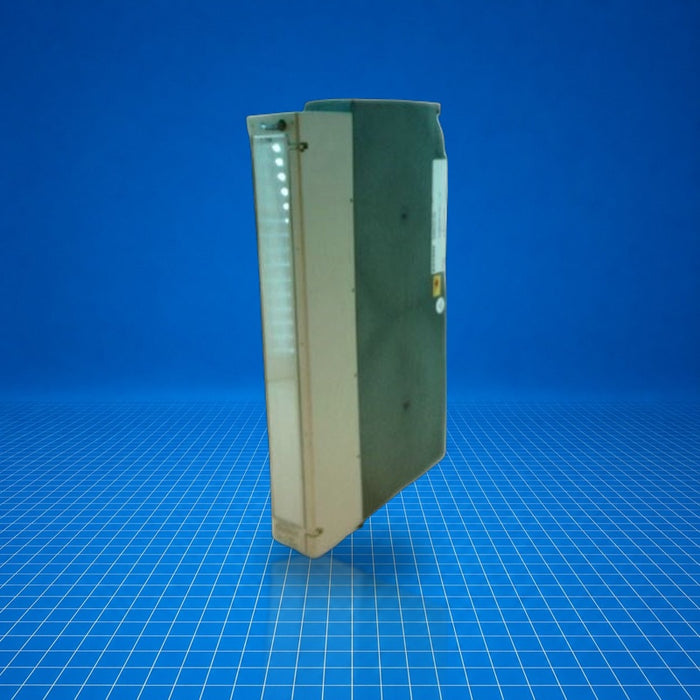

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
6ES5470-7LA12 Siemens
Original price
$525.00
-
Original price
$1,862.00
Original price
$525.00
$525.00
-
$1,862.00
Current price
$525.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 6ES5470-7LA12 is a SIMATIC S5-470 series analog output module for S5-115U/F PLC systems. It provides eight independent analog outputs capable of delivering voltage (0 … ±10 V or 0…10 V) or current (0/4 … 20 mA) signals, serving as an interface between the PLC and external instruments like actuators or field devices. Typically used in process control, measurement applications, or analog setpoint generation.
Best Suited For
- S5-115U or S5-115F PLCs requiring analog output channels
- Control systems needing multiple voltage or current outputs
- Replacement or spare in legacy S5 automation lines
- Analog control in process or motion systems
Outputs
8 analog outputs
Output modes
Voltage and current (0/4-20 mA, ±10 V)
PLC compatibility
SIMATIC S5-115U/F series
Lifecycle status
Discontinued
Technical Specifications
I/O & Electrical
Output quantity
8 channels
Voltage output range
0…±10 V / 0…10 V
Current output range
0/4…20 mA
Certifications
CSA Listed
Listed under CSA Class 2252 01 - Process Control Equipment; 8 outputs (floating), voltage or current outputs supported.
