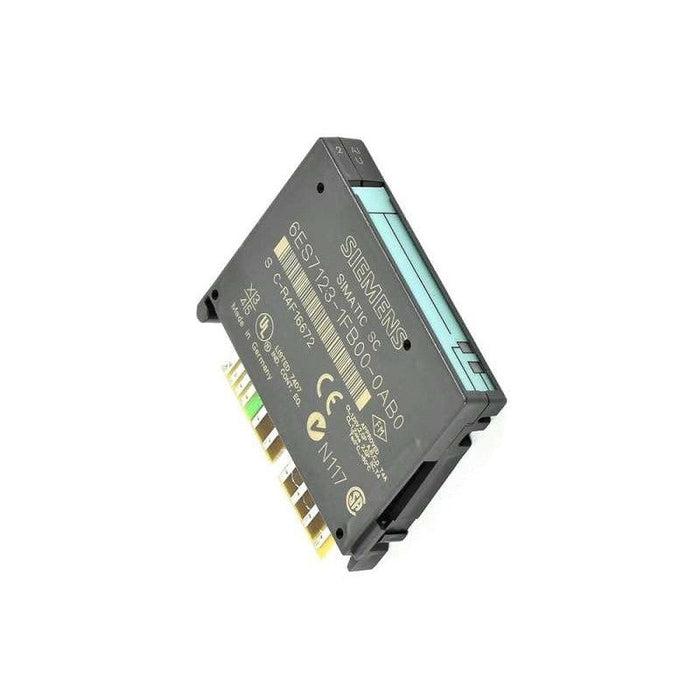

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
6ES7123-1FB00-0AB0 Siemens
Original price
$773.27
-
Original price
$1,189.65
Original price
$773.27
$773.27
-
$1,189.65
Current price
$773.27
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens SIMATIC ET 200L-SC analog input module 6ES7 123-1FB00-0AB0 is a 2-channel voltage/resistance input unit within the ET 200L-SC distributed I/O family for PROFIBUS-DP systems. It converts field analog signals (voltage, resistance, sensors like Pt100/T/C types) into digital data for the S7-300/ET 200L control systems. Typically used in industrial monitoring, temperature measurement, and machine-level process control tasks, 6ES7 123-1FB00-0AB0 supports linearization and filtering parameterization to suit diverse automation environments.
Best Suited For
- Distributed analog signal acquisition in ET 200L-SC racks
- Temperature or resistance sensor inputs (e.g. Pt100, T/C)
- Integration into PROFIBUS-DP systems
- Machine-level I/O expansion with compact form factor
Channels
2
Supply voltage
24 V DC
Current consumption
max. 30 mA
Power loss
typ. 0.6 W
Dimensions (W × H × D)
10 × 64 × 51 mm
Technical Specifications
I/O & Electrical
Number of inputs
2
Supported input types
Voltage, resistance, 2-wire or 4-wire sensors (e.g. Pt100, T/C)
Constant current for resistance sensors
approx. 1.5 mA
Communication & Power
Supply voltage
24 V DC
Reverse-polarity protection
Yes
Isolation
Channel to SC bus via optocoupler, test 1500 V AC
Current consumption
max. 30 mA
Power loss
typ. 0.6 W
Physical & Environmental
Dimensions (W × H × D)
10 × 64 × 51 mm
Weight
approx. 20 g
Cable length (shielded max.)
200 m
