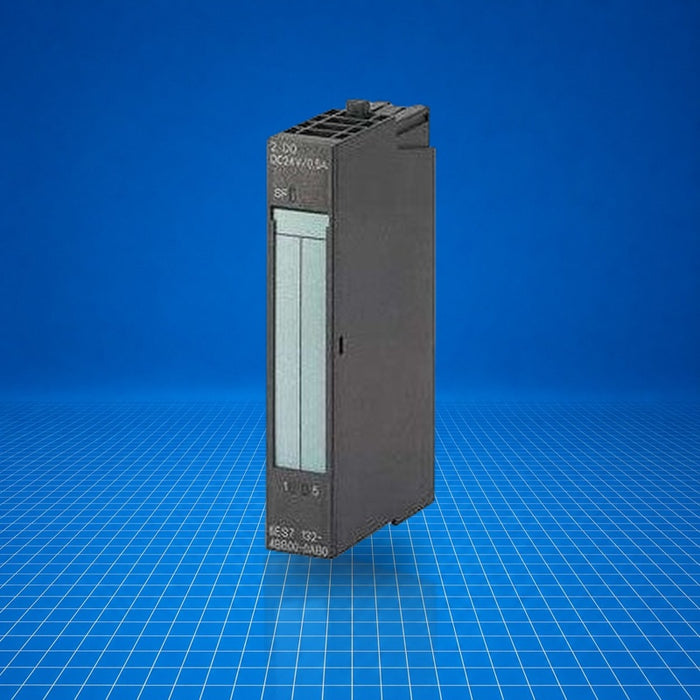

Product image is representative; revision or series may vary.
Contact us to request a specific version.

6ES7131-4BB00-0AA0 Siemens

Name: 6ES7131-4BB00-0AA0 Siemens
Brand: Siemens
SKU: 6ES7131-4BB00-0AA0
Availability: OutOfStock

Sold out

$0.00 - $0.00

$0.00

$0.00 - $0.00

$0.00

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (0) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Siemens distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The Siemens 6ES7131-4BB00-0AA0 is a digital input module for the SIMATIC ET 200S platform. It provides eight standard DC inputs and integrates into distributed I/O configurations via the backplane bus. The module supports isochronous operation (TWE = 3000 µs) and connects two-wire sensors, making it suitable for monitoring switch signals or proximity sensors in automation systems. Typical industrial applications include machine control, process monitoring, and modular I/O expansions within SIMATIC ET 200S installations.

Best Suited For

SIMATIC ET 200S distributed I/O systems
Standard DC input monitoring (8 channels)
Isochronous mode applications (TWE = 3000 µs)
Integration with two-wire sensor signals
Compact on-machine or panel installations

Digital inputs

8

Input voltage

24 V DC

Isochronous mode

Yes (TWE = 3000 µs)

Power loss

1.2 W (typ.)

Width

15 mm

Technical Specifications

I/O & Electrical

Digital inputs

8

Input voltage (rated)

24 V DC

Signal "0" threshold

-30 to +5 V

Signal "1" threshold

+15 to +30 V

Input current (signal "1"), typical

5 mA

Supports 2-wire sensors

Yes; max quiescent current 1.5 mA

Isochronous mode

Yes; TWE = 3000 µs

Communication & Power

Supply voltage source

From power module, 24 V DC

Reverse polarity protection

Yes

Backplane bus current, max

10 mA

Power loss, typical

1.2 W

Physical & Environmental

Width

15 mm

Height

81 mm

Depth

52 mm

Weight, approx.

35 g

Isolation tested with

500 V DC

Cable length, shielded max

1000 m

Cable length, unshielded max

600 m

Certifications

EU ConformityUK ConformityChina RoHSULRCMEACATEXFMIECExABSBVDNVLRPRSRINA

General Product Approval, EU and UK Declarations of Conformity, China RoHS; Hazardous-location standards: ATEX, FM, IECEx; Maritime: ABS, BV, DNV, LR, PRS, RINA, RCM, EAC, UL
