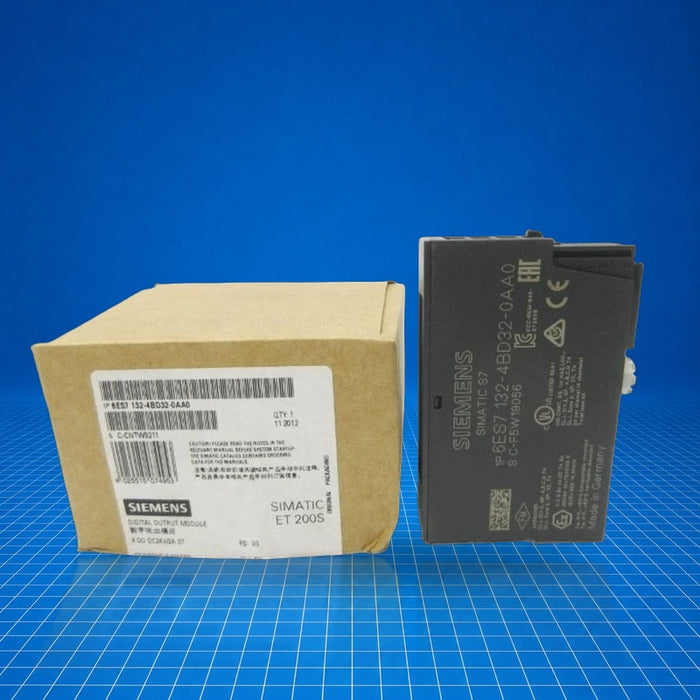

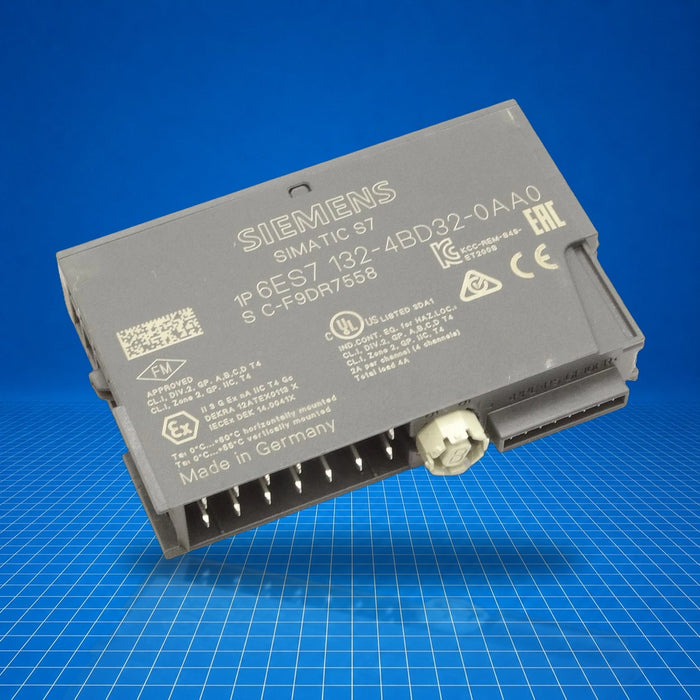

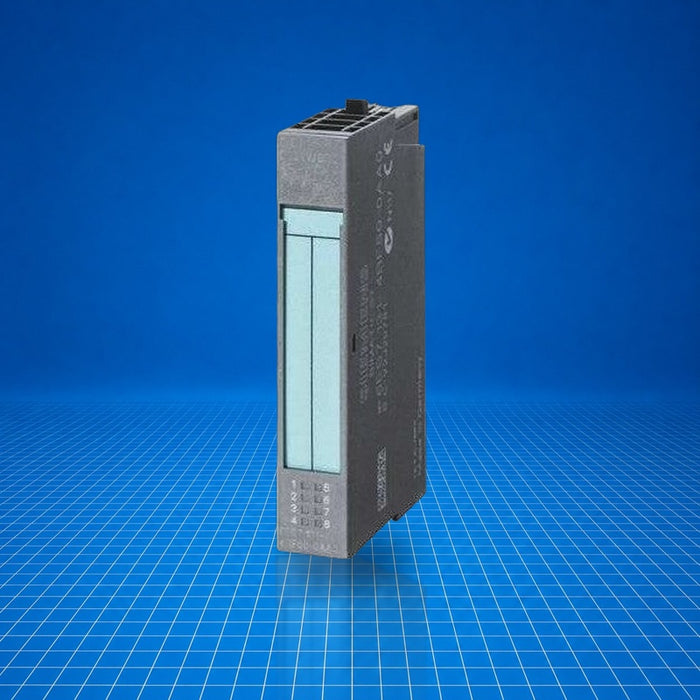

Product image is representative; revision or series may vary.
Contact us to request a specific version.

6ES7132-4BD32-0AA0 Siemens

Name: 6ES7132-4BD32-0AA0 Siemens
Brand: Siemens
SKU: 6ES7132-4BD32-0AA0
Price: 869.0 USD
Availability: InStock

$851.57 - $869.00

$869.00

$851.57 - $869.00

$869.00

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (5) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Siemens distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

Siemens 6ES7132-4BD32-0AA0 is a SIMATIC ET 200S digital output module providing four standard relay-free DC outputs, each capable of switching up to 2 A at 24 V DC. Designed for distributed I/O in PROFIBUS or PROFINET systems, it delivers synchronized output control via isochronous operation. The module mounts on standard ET 200S backplanes and is suited for machine control, process automation, and distributed control applications. This module interfaces with the control system to actuate loads such as valves, indicators, or small actuators within an industrial environment.

Best Suited For

Distributed ET 200S I/O systems
Switching DC actuators up to 2 A
Synchronized output timing (isochronous applications)
Compact control cabinets with constrained width

Outputs

4

Rated output current per channel

2 A

Module width

15 mm

Power loss

1.6 W (typical)

Weight

Approx. 40 g

Technical Specifications

I/O & Electrical

Number of outputs

4

Rated load voltage

24 V DC

Rated output current

2 A per channel

Permissible output current range

7 mA to 2.4 A

Residual current (off-state)

Max. 0.1 mA

Total output current per module

4 A

Polarity reversal protection

Yes

Communication & Power

Address space

1 byte (4 bit packed)

Isochronous operation

Yes

Current consumption (no load)

Max. 10 mA per channel

Power loss

Typically 1.6 W

Physical & Environmental

Dimensions (W × H × D)

15 × 81 × 52 mm

Weight

Approx. 40 g

Cable length, unshielded

Max. 600 m

Cable length, shielded

Max. 1000 m

Electrical isolation tested

500 V DC

Permissible potential difference between circuits

75 V DC / 60 V AC

Certifications

Compliance with Siemens internal standards; supports electrical isolation and potential separation as specified in ET 200S system documentation.
