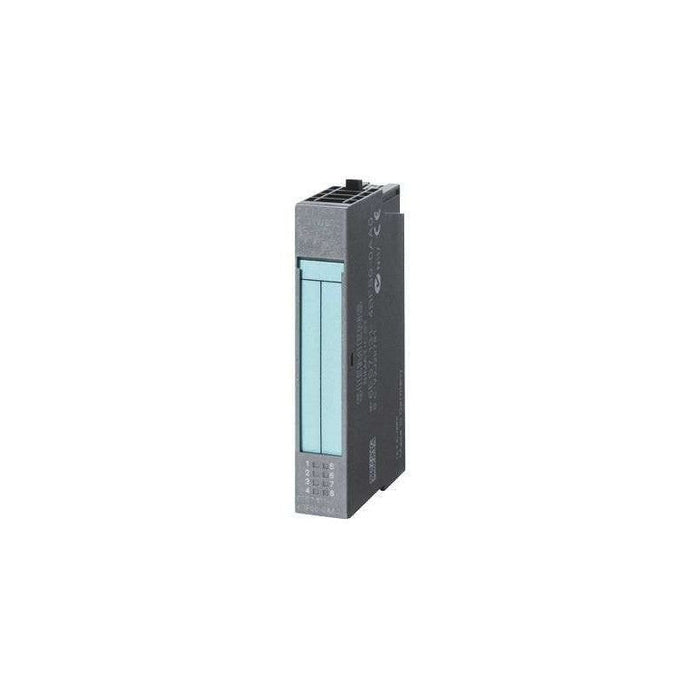

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.

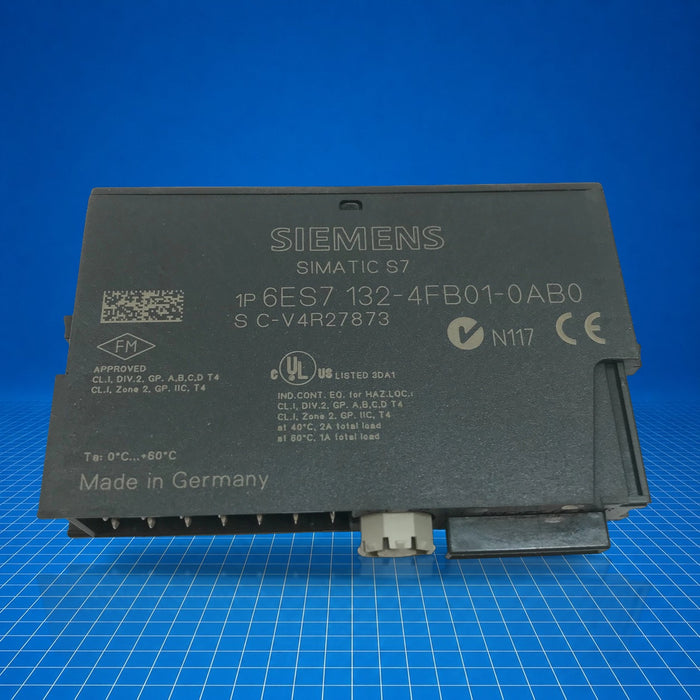

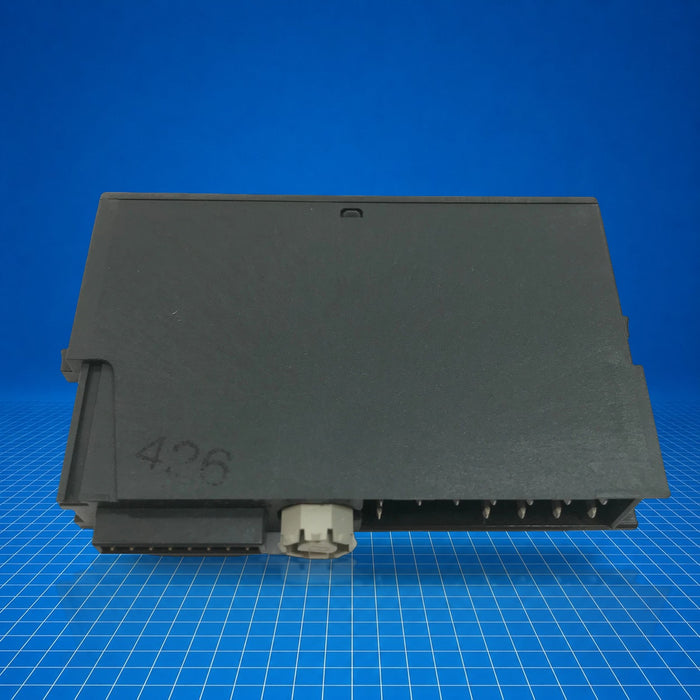

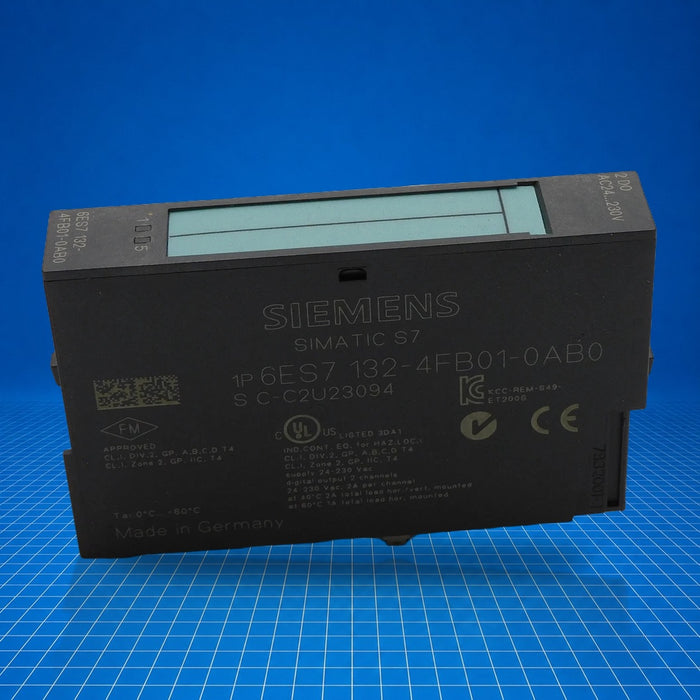

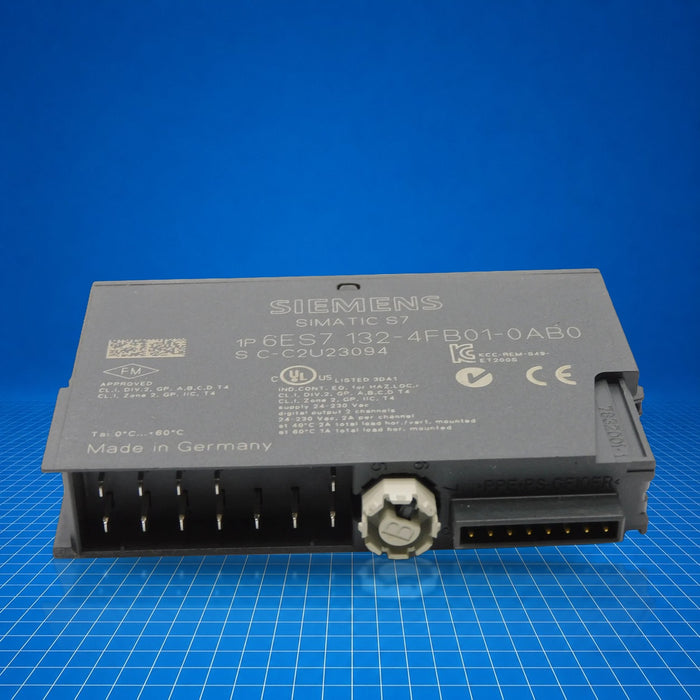

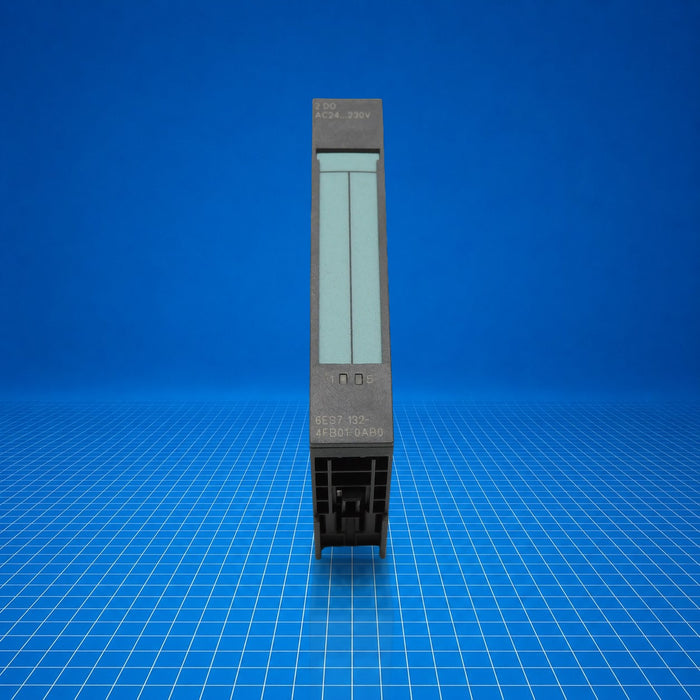

6ES7132-4FB01-0AB0 Siemens
Original price
$346.41
-
Original price
$383.88
Original price
$346.41
$346.41
-
$383.88
Current price
$346.41
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens SIMATIC ET 200S digital output module (6ES7132-4FB01-0AB0) provides two relay-controlled AC outputs for distributed I/O applications. It occupies a 15 mm width on ET 200S backplanes and does not support isochronous operation. Typical uses include switching AC loads within modular automation systems, integrating actuators, and extending control outputs in machine control racks. This module interfaces via the ET 200S backplane and is applied, for example, in modular machine I/O expansion and discrete AC load control in industrial automation.
Best Suited For
- Distributed I/O extension for AC load switching
- Machine tool output control in ET 200S systems
- Actuator switching in modular automation racks
- Retrofitting existing ET 200S installations with AC outputs
Outputs
2 channels
Rated Load Voltage
24 VAC to 230 VAC
Module Width
15 mm
Power Dissipation
Max. 4 W
Current Consumption (backplane)
Max. 18 mA
Technical Specifications
I/O & Electrical
Number of outputs
2
Rated load voltage
24 VAC to 230 VAC
Frequency
47 Hz to 63 Hz
Total output current (≤ 40 °C)
Max. 2 A per module
Total output current (≤ 60 °C)
Max. 1 A per module
Output current per channel (rated)
2 A
Output current per channel (permitted range)
0.1 mA to 2.2 A
Leakage current signal "0"
Max. 3 mA
Output delay "0"→"1"
Max. 15 ms
Output delay "1"→"0"
Max. 15 ms
Current consumption from backplane bus
Max. 18 mA
Current consumption from load voltage (no load)
Max. 15 mA per channel
Communication & Power
Power dissipation
Max. 4 W
Insulation tested
2500 V DC
Electrical isolation (to backplane)
Yes
Physical & Environmental
Module width
15 mm
Weight
Approx. 37 g
Shielded cable length
Max. 1000 m
Unshielded cable length
Max. 600 m
