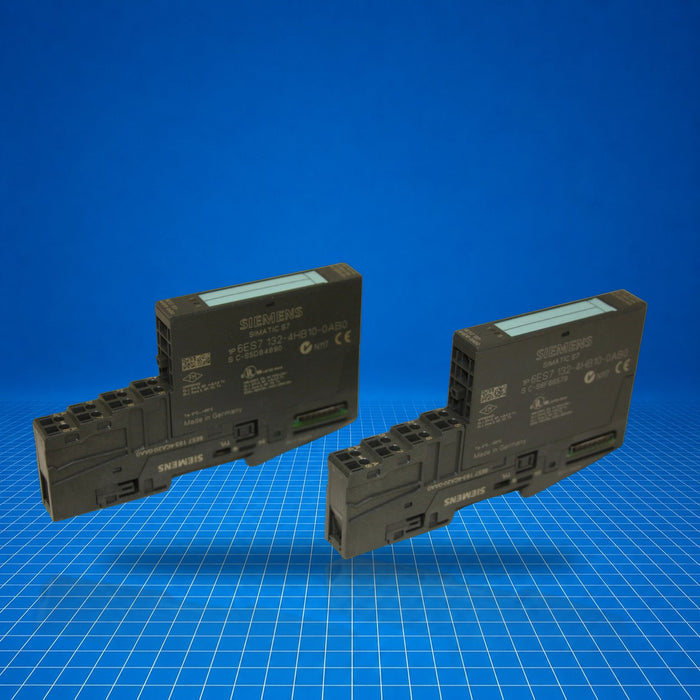

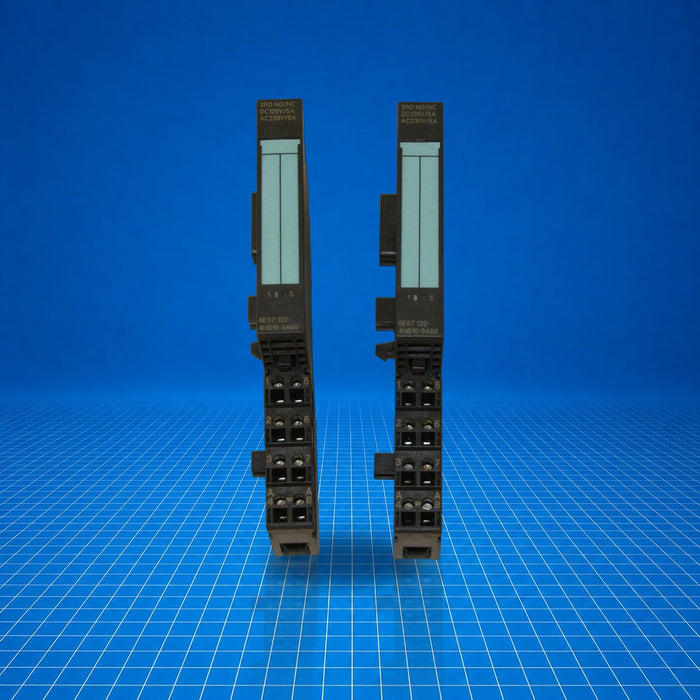

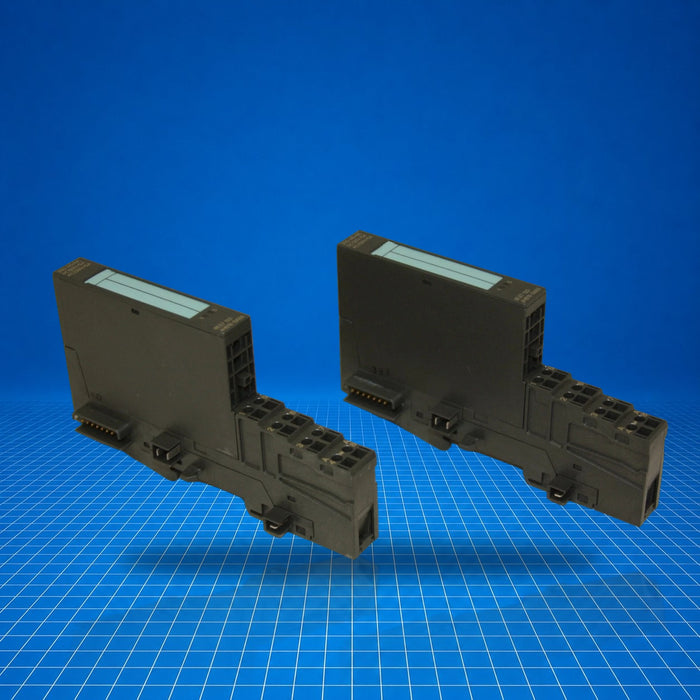

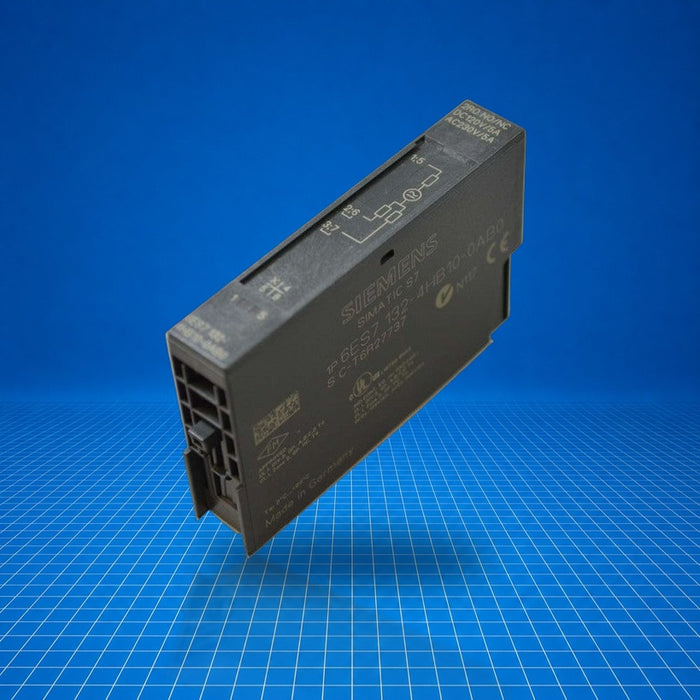

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
6ES7132-4HB10-0AB0 Siemens
Original price
$400.00
-
Original price
$418.20
Original price
$400.00
$400.00
-
$418.20
Current price
$400.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens SIMATIC DP electronic module 6ES7132-4HB10-0AB0 is a digital output module for the ET 200S distributed I/O platform, featuring two change-over relay outputs (Form C) rated at 24…230 V AC/DC up to 5 A. It occupies 15 mm module width and integrates into SIMATIC-based control systems. It is typically deployed in industrial automation environments for machine control, remote I/O expansion, and interfacing with actuators or output devices. The versatility of the 6ES7132-4HB10-0AB0 makes it suitable for OEM machinery and factory automation tasks requiring galvanically isolated relay outputs.
Best Suited For
- ET 200S expansion modules in SIMATIC systems
- Isolated relay output control of motors or solenoids
- OEM machinery output interfacing
- Remote actuator control in factory automation
Outputs
2 relays (Form C)
Voltage range
24…230 V AC/DC
Current rating
5 A per contact
Width
15 mm
Power loss
0.6 W (typical)
Technical Specifications
I/O & Electrical
Digital outputs
2 relays, change-over (Form C)
Output voltage range
24…230 V AC/DC
Output current (rated)
5 A per contact
Minimum load current
8 mA
Switching frequency, resistive
2 Hz
Switching frequency, inductive
0.5 Hz
Total current per channel (≤50 °C)
5 A
Total current per channel (≤60 °C)
4 A
Communication & Power
Supply voltage (load voltage L+)
24 V DC (from power module)
Reverse polarity protection
Yes
Input current from L+ (no load)
30 mA
Input current from backplane (3.3 V)
10 mA
Power loss (typical)
0.6 W
Physical & Environmental
Module width
15 mm
Installation orientation
Horizontal or vertical (with current derating)
Certifications
UL ListedEU-Declaration of ConformityUK-Declaration of ConformityChina RoHS
