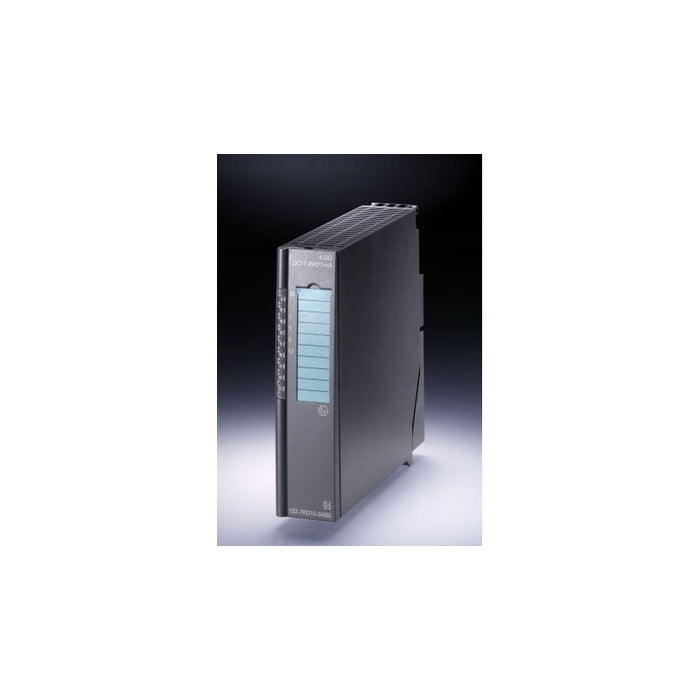

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
6ES7132-7RD11-0AB0 Siemens
Original price
$0.00
-
Original price
$2,315.25
Original price
$2,315.25
$0.00
-
$2,315.25
Current price
$2,315.25
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens SIMATIC electronic output module 6ES7132-7RD11-0AB0 for ET 200iSP provides four transistor outputs with intrinsic-safe shutdown ("H") functionality. It operates at 17.4 V DC/27 mA output load and integrates into distributed I/O systems for hazardous environments (Ex ib/ia) in process and machine control. Typical use includes control of solenoid valves, DC current relays, or actuators in Zone 1/21 hazardous areas.
Best Suited For
- ET 200iSP distributed I/O systems
- Solenoid valve and actuator control in hazardous zones
- Redundant actuator switching via parallel output capability
- Intrinsic-safe shutdown control (Shutdown "H")
Digital outputs
4 transistor
Load voltage
17.4 V DC
Load current per channel
27 mA
Intrinsic-safe protection Ex ib
Yes
Power loss (typ.)
2.1 W
Technical Specifications
I/O & Electrical
Load voltage (Ue)
17.4 V DC
Load current (Ie)
27 mA
No-load voltage (Uao)
17.4 V
Internal resistor (Ri)
150 Ω
Rated output current
0.027 A
Output delay 0→1, max.
2 ms
Output delay 1→0, max.
1.5 ms
Communication & Power
Power consumption (typ.)
260 mA
Power consumption (max.)
300 mA
Power loss (typ.)
2.1 W
Parallel outputs uprating
Yes (same module)
Physical & Environmental
Mounting
Front and rail mounting
Protection rating
IP30
Dimensions W×H×D
30 mm × 129 mm × 136.5 mm
Weight
255 g
Certifications
ATEX Ex ib IIC T4 GbIECExcULusFMMarine (GL/ABS/BV/DNV)CEUKCAINMETROCCC ExEAC Ex
ATEX Ex ib [ia Ga] IIC T4 Gb; Ex ib [ia IIIC Da] IIC T4 Gb; I Mb; IECEx; cULus; FM; Marine approvals (GL, ABS, BV, DNV); CE; UKCA; INMETRO; CCC Ex; EAC Ex.
